Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZE-Q22-2SSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP60 - Dust Tight | - | 250 ~ 350gf | 114gf | 1.957" (49.7mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -10°C ~ 80°C |
|
D4N-4A2GR-NPTSWITCH SNAP ACTION DPST 10A 120V |
1 |
|
Datasheet |
D4N-R | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 10A (AC), 2.5A (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller, Reset Function | 571gf | - | - | 18° | - | - | -30°C ~ 70°C |
|

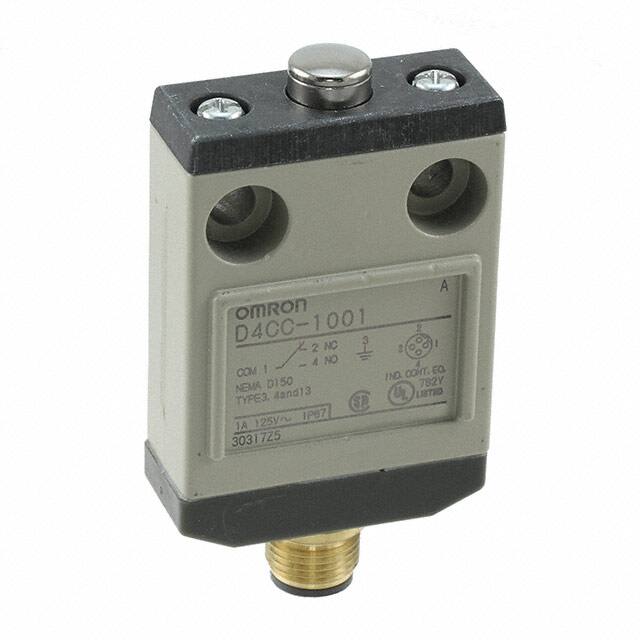

D4CC-1001SWITCH SNAP ACTION SPDT 1A 125V |
1 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
ZC-Q55-L3SWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1200gf | 500gf | 1.504" (38.2mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
XCKM110SWITCH LIMIT DPDT 3A 240V |
1 |
|
Datasheet |
XCKM | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
SHL-W2155SWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 260gf | 50gf | 1.319" (33.5mm) | 0.512" (13.0mm) | 0.156" (4.0mm) | 0.217" (5.5mm) | -10°C ~ 80°C |
|
SHL-W55SWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 320gf | 80gf | 0.846" (21.5mm) | 0.315" (8.0mm) | 0.098" (2.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D4B-4571NSWITCH SNAP ACTION DPST 10A 120V |
1 |
|
Datasheet |
D4B-N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.890" (48.0mm) | 0.080" (2.0mm) | - | 0.197" (5.0mm) | -40°C ~ 80°C |
|
XCKP2118M12SWITCH LIMIT DPDT 3A 240V |
1 |
|
Datasheet |
XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
SHL-W255SWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 1.300" (33.0mm) | 0.315" (8.0mm) | 0.098" (2.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D4N-9120SWITCH SNAP ACTION DPST 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4B-2117N BY JPNSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 216gf | 30gf | 21° | 21° | 12° | 50° | -40°C ~ 80°C |
|
D4E-1G21NSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|

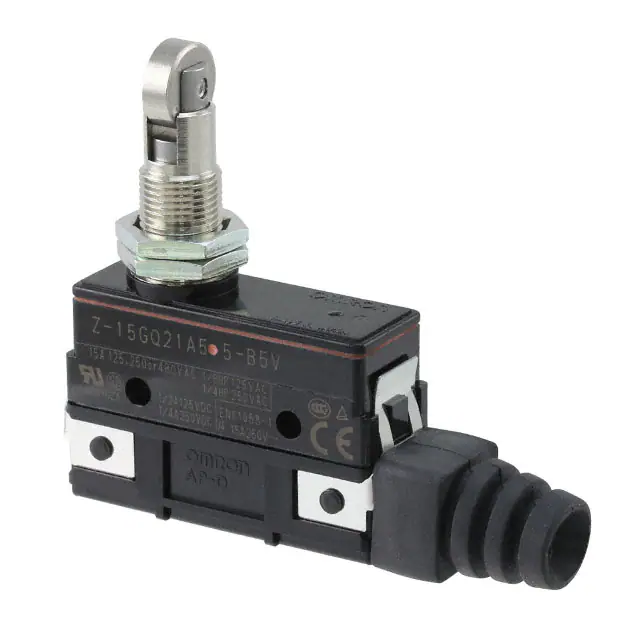

Z-15GQ21A55-B5VSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Screw Terminal | IP62 | - | 540gf | 114gf | 1.313" (33.4mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -15°C ~ 80°C |
|
ZE-QA2-2SSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP60 - Dust Tight | - | 570gf | 170gf | - | 0.157" (4.0mm) | 0.016" (0.4mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|
9007AP221SWITCH LIMIT SPDT 15A 120V |
1 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
D4E-1A00NSWITCH SNAP ACTION SPDT 1A 125V |
1 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
ZC-Q55SWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.504" (38.2mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
XCMD21F2L1SWITCH LIMIT DPDT 1.5A 240V |
1 |
|
Datasheet |
XCMD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Cable with Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
D4E-2A20NSWITCH SNAP ACT SPDT 0.1A 125V |
1 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
