Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4E-2C10NSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.000" (25.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|

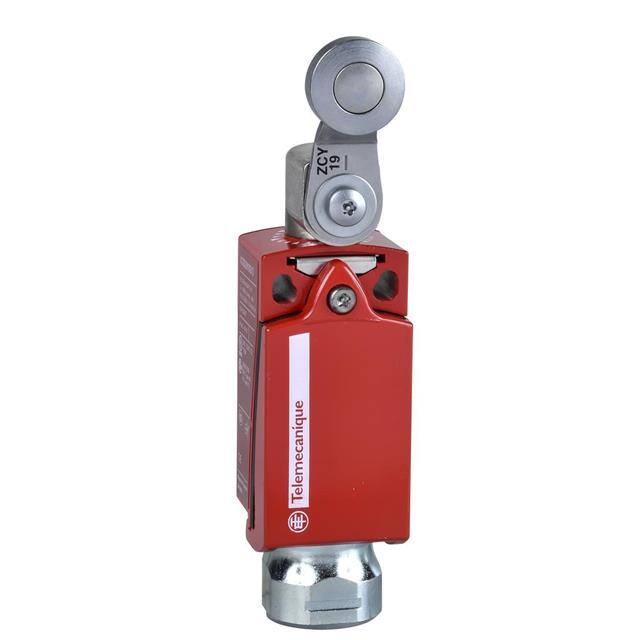

XCSD3919N12SWITCH SAFETY LMT 3PST 1.5A 240V |
0 |
|
Datasheet |
XCSD | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Panel Mount | Screw Terminal | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
9007MS10S0300SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
6025105SWITCH SNAP ACTION 4PST 3A 240V |
1 |
|
Datasheet |
i110P | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC/DC) | 240 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 1122gf | - | - | - | - | - | -25°C ~ 80°C |
|
D4B-4117NSWITCH SNAP ACTION SPDT 10A 120V |
1 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 216gf | 30gf | 21° | 21° | 12° | 50° | -40°C ~ 80°C |
|
WLNJ-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|
ZV-N22-2SSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZV | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 100gf | 2.961" (75.2mm) | 0.040" (1.0mm) | 0.005" (0.13mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
D4C-1433SWITCH SNAP ACTION SPDT 5A 250V |
1 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1800gf | 450gf | 1.350" (34.3mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
D4N-4D26SWITCH SNAP ACT 3PST-NC 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Bearing Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
XCKJ167SWITCH LIMIT DPDT 3A 240V |
1 |
|
Datasheet |
XCKJ | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9007MS03S0300SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
XCKD2145M12SWITCH LIMIT DPDT 3A 50V |
1 |
|
Datasheet |
XCKD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 50 V | 50 V | Lever, Roller | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
D4B-2171NSWITCH SNAP ACTION SPDT 10A 120V |
1 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.890" (48.0mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.197" (5.0mm) | -40°C ~ 80°C |
|
|
9007MS02S0084SWITCH LIMIT SPDT 3A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 3A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
9007CO3SWITCH SNAP ACTION DPDT 3A 120V |
1 |
|
Datasheet |
9007C | Box | Active | DPDT (DB/DM) | On-Mom | 3A (AC), 200mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007MS01S0206SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
WLD18-G-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2720gf | 910gf | 1.339" (34.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.252" (6.4mm) | -10°C ~ 80°C |
|
XCKJ161H7SWITCH LIMIT DPDT 3A 240V |
1 |
|
Datasheet |
XCKJ | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
SHL-Q2155-01L3MR VCTF 3MSWITCH SNAP ACT SPDT 0.1A 125V |
1 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Status Indicator | 1000gf | 200gf | 1.695" (43.05mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|
D4B-4117N-NPTSWITCH SNAP ACTION SPDT 10A 120V |
1 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 216gf | 30gf | 21° | 21° | 12° | 50° | -40°C ~ 80°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
