Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A-20GQ21-B7-KSWITCH SNAP ACTION SPDT 20A 125V |
2 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 630gf | 280gf | 1.313" (33.4mm) | 0.051" (1.3mm) | 0.014" (0.35mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
Z-15EWRSWITCH SNAP ACTION SPDT 15A 125V |
4 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP00 | Reset Plunger on Bottom | 55gf | 300gf | 0.748" (19.0mm) | - | - | 0.219" (5.6mm) | -25°C ~ 80°C |
|
D4MC-1020SWITCH SNAP ACTION SPDT 10A 125V |
5 |
|
Datasheet |
D4MC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 260gf | 35gf | 0.984" (25.0mm) | - | 0.065" (1.7mm) | 0.098" (2.5mm) | -10°C ~ 80°C |
|
Z-15GS55-BSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP62 | - | 250 ~ 350gf | 114gf | 1.110" (28.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -15°C ~ 80°C |
|
PS21L-NS11RT-M00SWITCH SNAP ACT DPST 5.5A 130V |
1 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Nylon Roller | 32gfm | - | - | - | - | - | -25°C ~ 70°C |
|

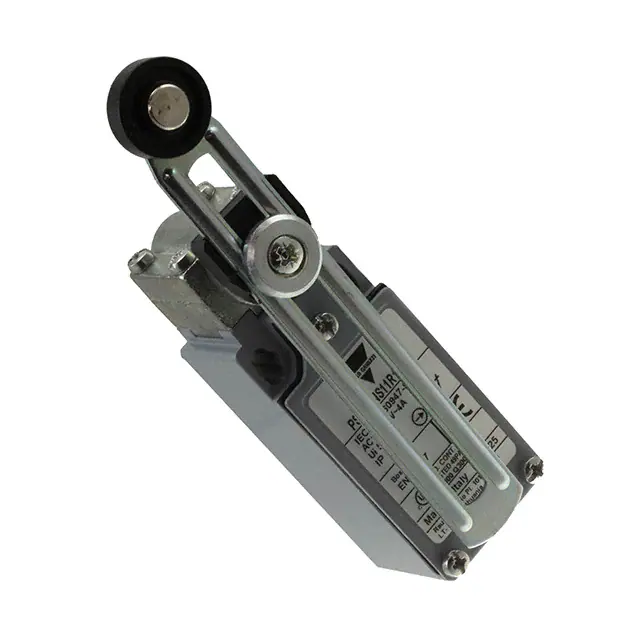

PS21L-NS11R1-M00SWITCH SNAP ACT DPST 5.5A 130V |
1 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 15gf | - | - | - | - | - | -25°C ~ 70°C |
|

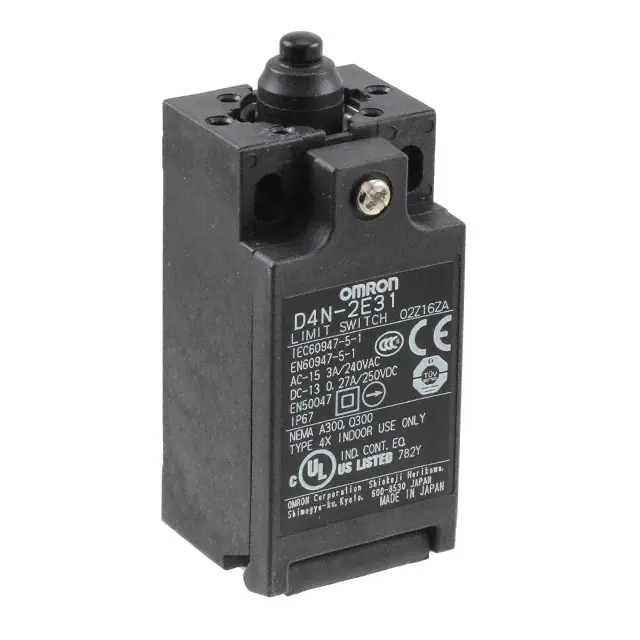

D4N-2E31SWITCH SNAP ACTION DPST 3A 240V |
3 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.685" (17.4mm) | 0.110" (2.8mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
D4N-2B2GSWITCH SNAP ACT DPST-NC 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
DZ-10GW21-1BSWITCH SNAP ACTION DPDT 10A 125V |
2 |
|
Datasheet |
DZ | Bulk | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | - | Chassis Mount | Screw Terminal | IP00 | - | - | - | - | - | - | - | -25°C ~ 80°C |
|
Z-15GNJ55-B7-KSWITCH FLEXIBLE ROD SPDT 15A |
5 |
|
Datasheet |
Z | Bulk | Active | - | - | - | - | - | Spring, Rod | - | - | - | - | - | - | - | - | - | - | - |
|
DZ-10GV-1BSWITCH SNAP ACTION DPDT 10A 125V |
3 |
|
Datasheet |
DZ | Tray | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 200gf | 13gf | 0.720" (18.3mm) | 0.236" (6.0mm) | 0.065" (1.7mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D4N-4162-NPTSWITCH SNAP ACTION DPST 3A 240V |
5 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|

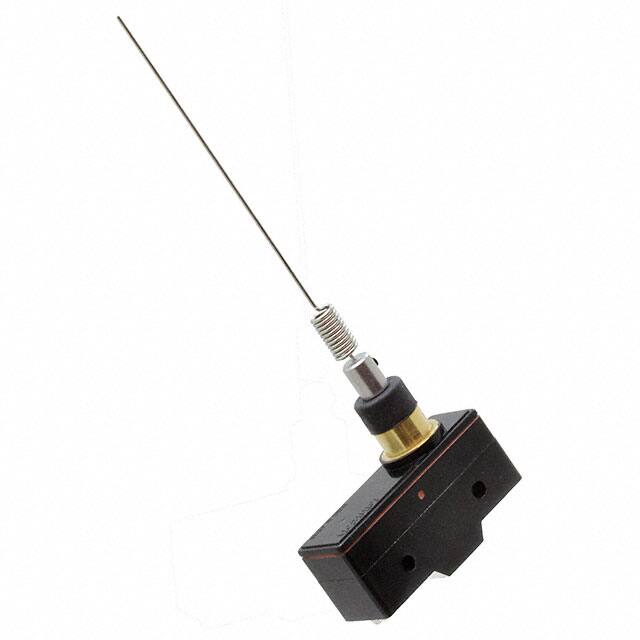

Z-15HNJS55-B7-KSWITCH SPDT 15A FLEXIBLE ROD |
0 |
|
Datasheet |
Z | Bulk | Active | - | - | - | - | - | Spring, Wire | - | - | - | - | - | - | - | - | - | - | - |
|
D4N-4172-NPTSWITCH SNAP ACTION DPST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
D4N-4187SWITCH SNAP ACTION DPST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 153gf | - | - | 15° | - | - | -30°C ~ 70°C |
|

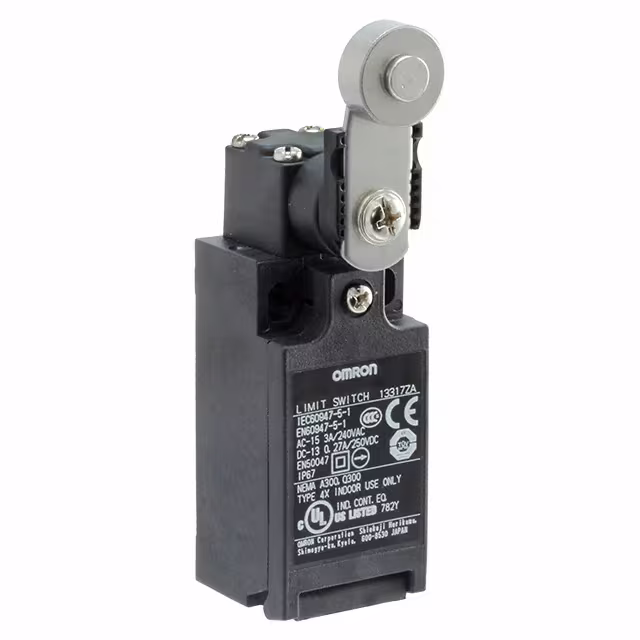

D4N-2A25SWITCH SNAP ACTION DPST 3A 240V |
3 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Metal Roller | 510gf | 51gf | - | 18° | - | 40° | -30°C ~ 70°C |
|
Z-01HD55-BSWITCH SNAP ACT SPDT 0.1A 125V |
3 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP62 | - | 370gf | 80gf | 0.846" (21.5mm) | 0.075" (1.9mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -15°C ~ 80°C |
|
D4N-212HSWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Rubber Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-1125SWITCH SNAP ACTION DPST 3A 240V |
3 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Metal Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-4222SWITCH SNAP ACT DPST-NC 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
