Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SE51320CC03SWITCH LIMIT DPST 6A 125V |
1 |
|
Datasheet |
3SE5 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | - |
|

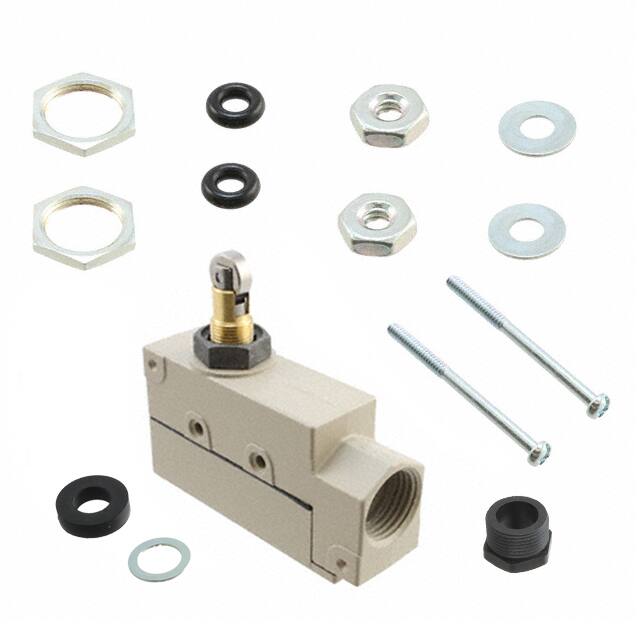

ZE-Q22-2GSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP60 - Dust Tight | - | 250 ~ 350gf | 114gf | 1.957" (49.7mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -10°C ~ 80°C |
|
9007MS01S0100SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
WLNJ-TS-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|
D5B-1531SWITCH SNP ACT SPST-NC 0.03A 30V |
1 |
|
Datasheet |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Spring, Wire | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 5.000gf | - | - | 0.551" (14.0mm) | - | - | -10°C ~ 70°C |
|
XCKP2121M12SWITCH LIMIT DPDT 3A 240V |
1 |
|
Datasheet |
XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
D5B-8513SWITCH SNP ACT SPST-NC 0.03A 30V |
1 |
|
Datasheet |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Spring, Wire | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 5.000gf | - | - | 0.433" (11.0mm) | - | - | -10°C ~ 70°C |
|
WLNJ-G-NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|
GLDB01E7BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 132gf | - | 16° | 16° | 10° | 35° | -25°C ~ 85°C |
|

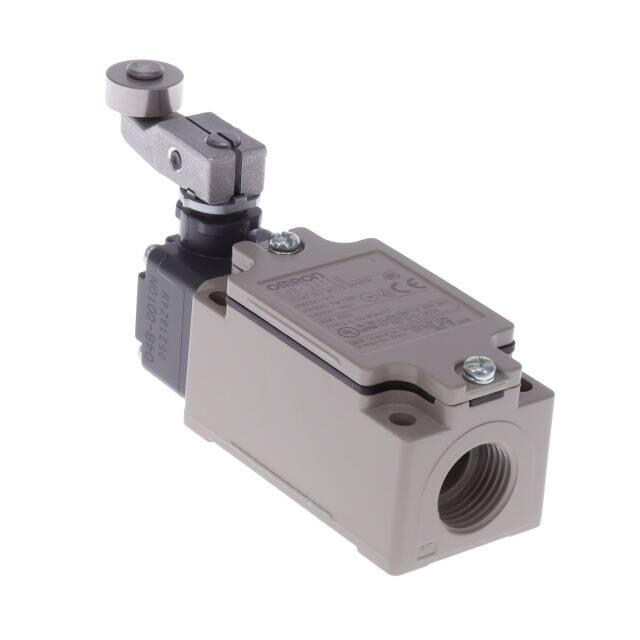

D4B-2A15NSWITCH SNAP ACT DPST-NC 10A 120V |
1 |
|
Datasheet |
D4B-N | Bulk | Active | DPST-NC | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel Roller | 960gf | 150gf | 21° | 21° | - | 50° | -40°C ~ 80°C |
|
WLCA2-TS-NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 120gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|
D5B-8515SWITCH SNP ACT SPST-NC 0.03A 30V |
0 |
|
Datasheet |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Spring, Wire | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 5.000gf | - | - | 0.433" (11.0mm) | - | - | -10°C ~ 70°C |
|
D4B-4170N-NPTSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.380" (35.0mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.197" (5.0mm) | -40°C ~ 80°C |
|
XCKD2118M12SWITCH LIMIT DPDT 3A 50V |
1 |
|
Datasheet |
XCKD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 50 V | 50 V | Lever, Roller | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9007MS01S0200SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
ZV2-N22-2SWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZV2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 100gf | 1.405" (35.7mm) | 0.040" (1.0mm) | 0.005" (0.13mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
9007MS02S0200SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
D4E-2C21NSWITCH SNAP ACT SPDT 0.1A 125V |
1 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.000" (25.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D4E-1G24NSWITCH SNAP ACTION SPDT 5A 125V |
1 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
WLCA2-G-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 120gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
