Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

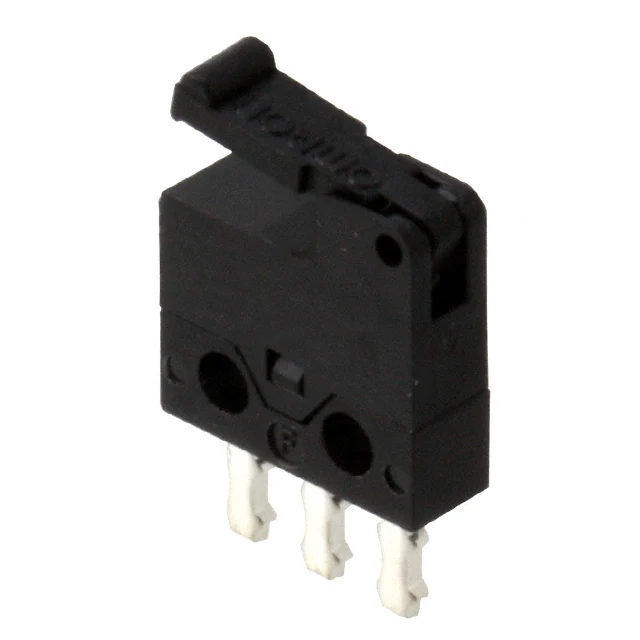

D2MQ-4L-1SWITCH SNAP ACTION SPDT 0.5A 30V |
996 |
|
Datasheet |
D2MQ | Tray | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 40gf | 4.079gf | 0.280" (7.1mm) | 0.083" (2.1mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -15°C ~ 70°C |
|
SS-5GL111SWITCH SNAP ACTION SPDT 5A 125V |
253 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3M-01K2-3SWITCH SNAP ACT SPST-NO 0.1A 30V |
4,434 |
|
Datasheet |
D3M | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.618" (15.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

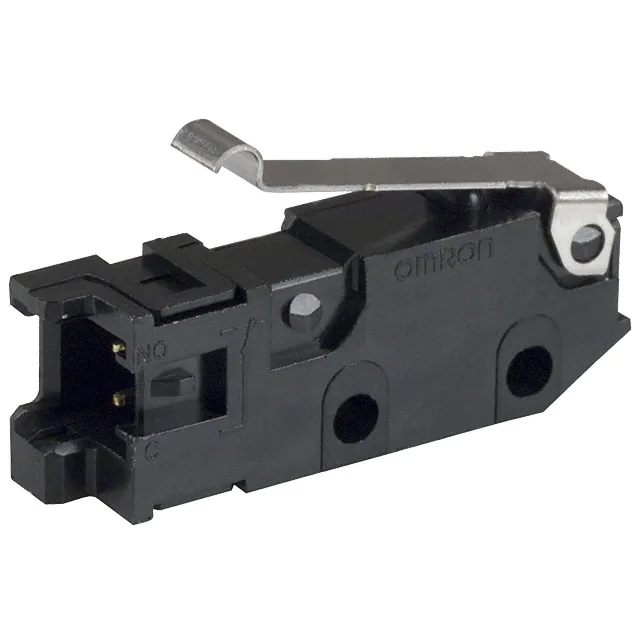

D3M-01K3-3SWITCH SNAP ACT SPST-NO 0.1A 30V |
363 |
|
Datasheet |
D3M | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.480" (12.2mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3D-111SWITCH SNAP ACTION SPDT 1A 125V |
343 |
|
Datasheet |
D3D | Tray | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Overtravel Plunger | Panel Mount, Snap-In | Connector | IP00 | White Actuator | 204gf | - | 0.512" (13.0mm) | - | - | - | -30°C ~ 60°C |
|
D2F-01FL-DSWITCH SNAP ACTION SPDT 0.1A 30V |
4,992 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 25gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|

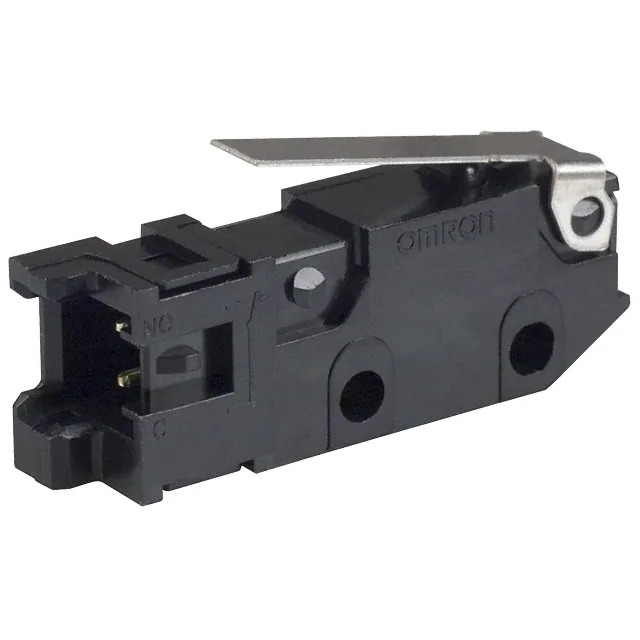

D3M-01K1-3SWITCH SNAP ACT SPST-NO 0.1A 30V |
282 |
|
Datasheet |
D3M | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.394" (10.0mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-10DSWITCH SNAP ACTION SPDT 10A 250V |
4,613 |
|
Datasheet |
SS | Tray | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
D3V-166-1C5SWITCH SNAP ACTION SPDT 16A 250V |
2,342 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V15T16-DZ200A02SWITCH SNAP ACTION SPDT 16A 250V |
984 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 130gf | 35gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
D2F-FL-ASWITCH SNAP ACTION SPDT 1A 125V |
8,084 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Right Side | 75gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
D2HW-A221DSWITCH SNAP ACT SPDT 0.1A 125V |
5,561 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 50gf | 3.059gf | 0.524" (13.3mm) | - | 0.031" (0.8mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|

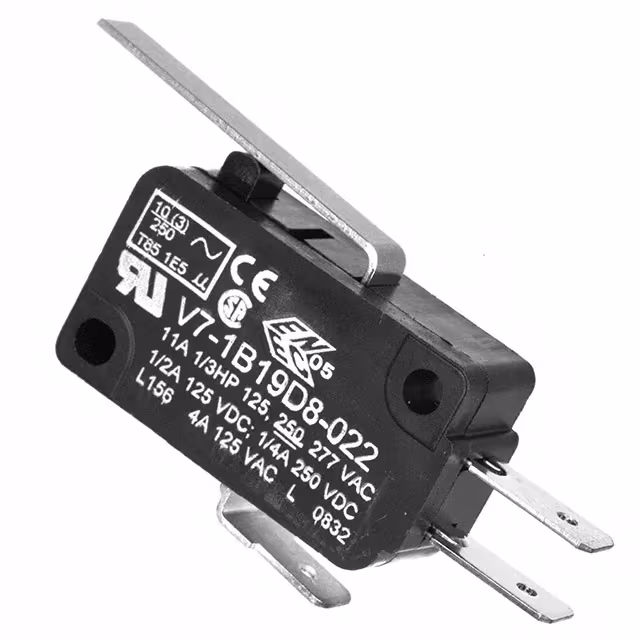

V7-1B19D8-022SWITCH SNAP ACTION SPDT 11A 125V |
1,281 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 8.000gf | 0.602" (15.3mm) | 0.120" (3.0mm) | 0.028" (0.7mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
D2MQ-1L-TRSWITCH SNAP ACTION SPDT 0.5A 30V |
795 |
|
Datasheet |
D2MQ | Tray | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Leaf | Through Hole, Right Angle | PC Pin | IP40 | - | 60gf | 8.158gf | 0.264" (6.7mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -15°C ~ 70°C |
|

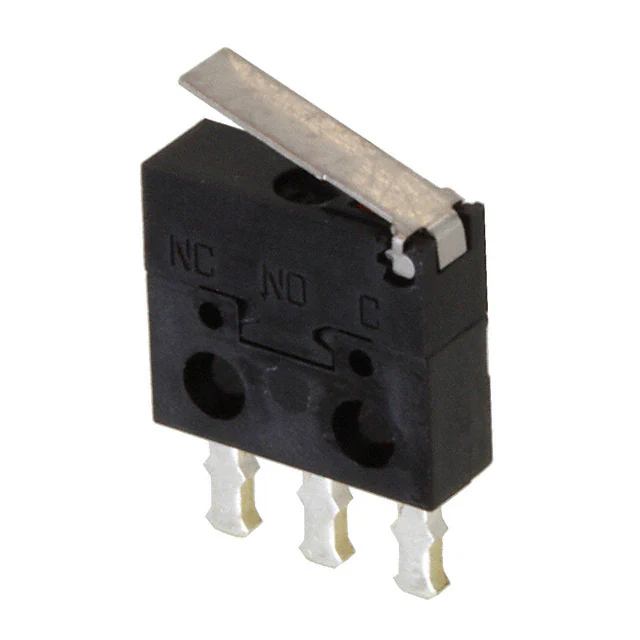

AV402461SWITCH SNAP ACTION SPDT 0.1A 30V |
723 |
|
Datasheet |
AV4 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | - | 0.250" (6.4mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.015" (0.4mm) | -25°C ~ 80°C |
|

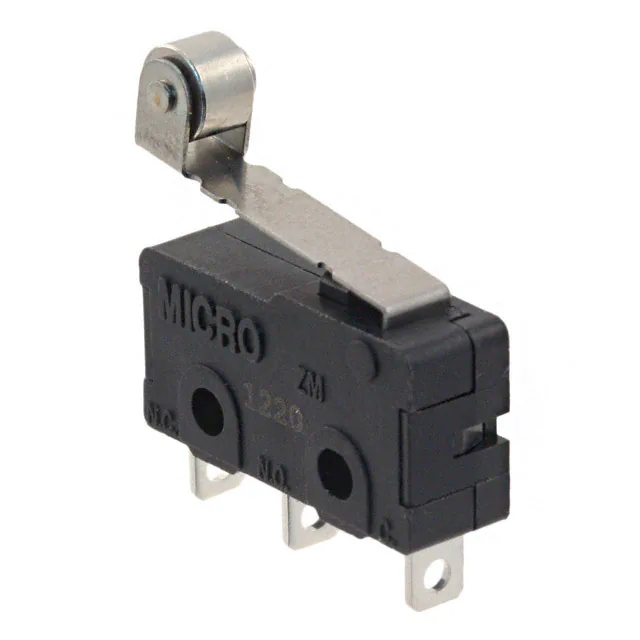

ZM50E10F01SWITCH SNAP ACTION SPDT 5A 125V |
341 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 35gf | 8.000gf | 0.689" (17.5mm) | 0.150" (3.8mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -40°C ~ 120°C |
|

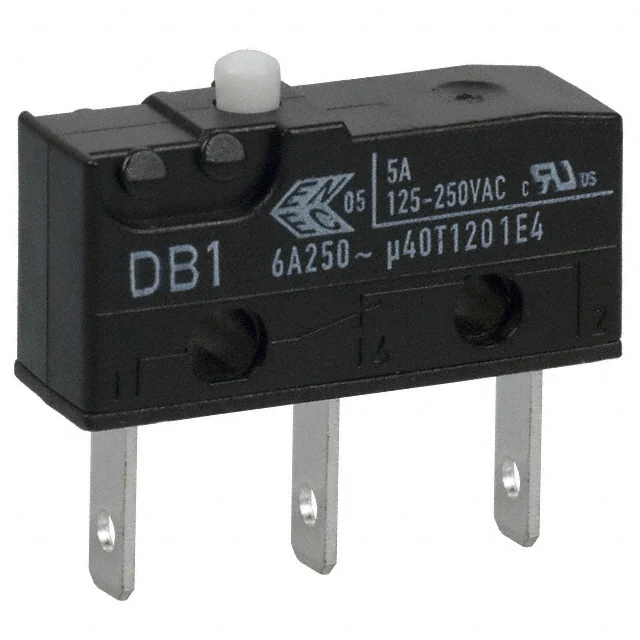

DB1CB1AASWITCH SNAP ACTION SPDT 5A 125V |
8,180 |
|
Datasheet |
DB | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 150gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
D2F-01L-A1SWITCH SNAP ACTION SPDT 0.1A 30V |
12,810 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
V7-1B17D8-263SWITCH SNAP ACTION SPDT 11A 125V |
2,992 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 9.000gf | 0.730" (18.5mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
D2HW-C201HSWITCH SNAP ACT SPDT 0.1A 125V |
13,199 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
