Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ-2R244TSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 204°C |
|
BZ-2R258SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
BZ-2R55-P4-SSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 425gf | 113gf | 0.625" (15.9mm) | - | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
BZ-2RD24-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.835" (21.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 121°C |
|

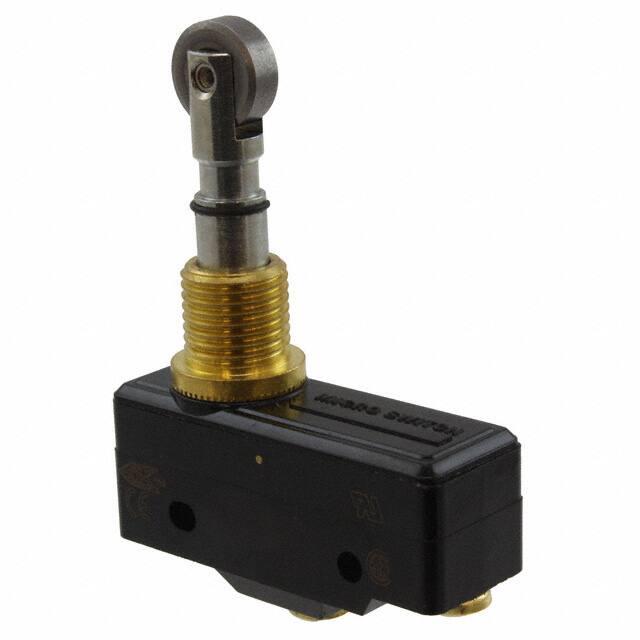

BZ-2RN784SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 135gf | 2.232" (56.7mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-2RN7TSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Screw Terminal | - | Steel Plunger | 624 ~ 1134gf | 510gf | 1.720" (43.7mm) | - | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
BZ-2RQ181TSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
BZ-2RQ1T04SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 170gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-2RS7224-A2SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Overtravel Plunger | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.110" (28.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 121°C |
|

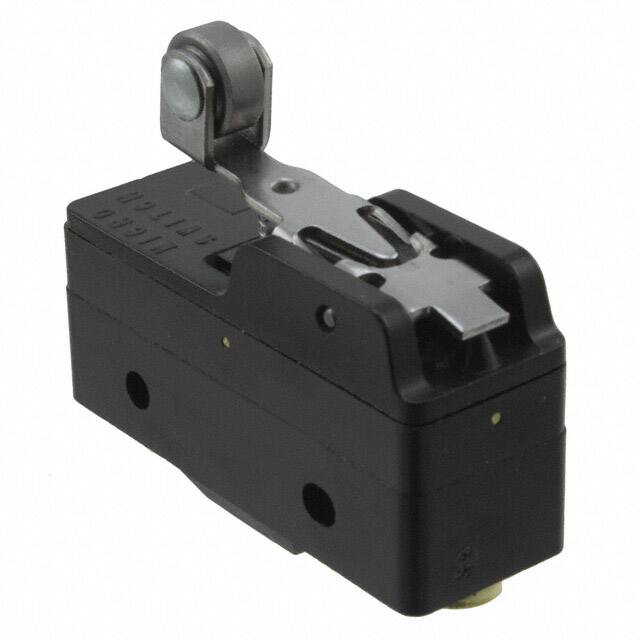

BZ-2RW82224-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 121°C |
|
|
BZ-2RW8225551-A46SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
BZ-2RW84SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 28gf | 3.500gf | 0.750" (19.1mm) | 0.328" (8.3mm) | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

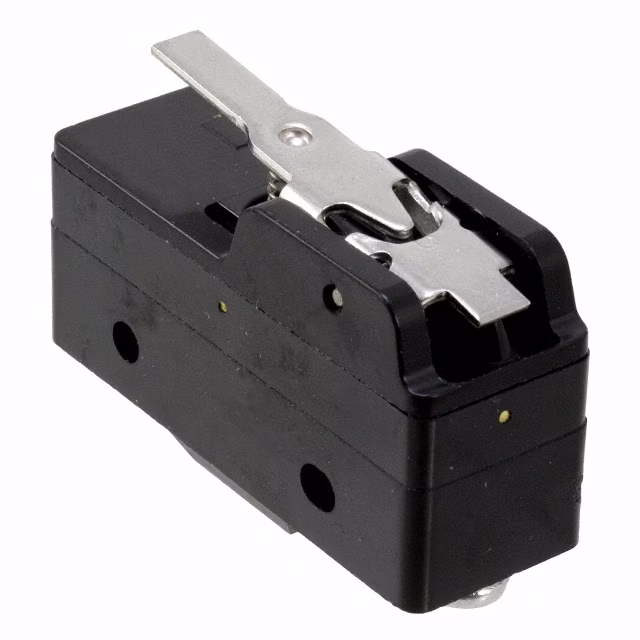

BZ-2RW876TSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 0.750" (19.1mm) | - | 0.025" (0.6mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|

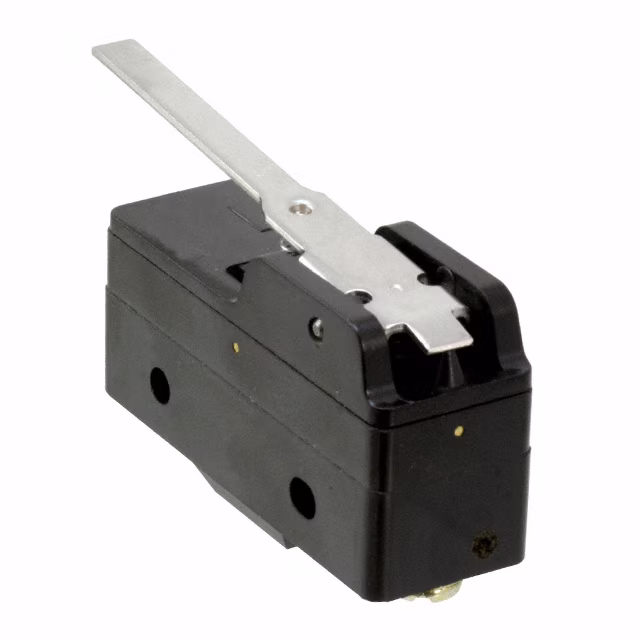

BZ-2RWT04SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 28 ~ 92gf | 21gf | 0.750" (19.1mm) | 0.296" (7.5mm) | 0.094" (2.4mm) | 0.172" (4.4mm) | -55°C ~ 85°C |
|
|
BZ-3AW8055511TSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 1A (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 92gf | 14gf | 0.750" (19.1mm) | - | 0.100" (2.54mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-3RSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 397 ~ 567gf | 113gf | 0.625" (15.9mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
SCN-1631SCSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 184gf | 43gf | 1.188" (30.2mm) | - | 0.030" (0.76mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
BZ-7RT04SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 624 ~ 794gf | 170gf | 0.625" (15.9mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
ZD20S10A02SWITCH SNAP ACT SPDT 0.01A 12V |
0 |
|
Datasheet |
ZD | Bulk | Active | SPDT | On-Mom | 10mA (DC) | - | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP00 | Support Posts | 130gf | 13gf | 0.120" (3.05mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.030" (0.76mm) | -40°C ~ 120°C |
|
|
ZD20SA01EASWITCH SNAP ACTION SPDT 10MA 12V |
0 |
|
Datasheet |
ZD | Bulk | Active | SPDT | On-Mom | 10mA (DC) | - | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | 13gf | 0.120" (3.05mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.030" (0.76mm) | -40°C ~ 120°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
