Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
311SM43-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
|
311SM4-H58SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 40gf | 7.138gf | 0.460" (11.7mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
311SM68-H4SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 40gf | 7.138gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
311SM6-H58SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 40gf | 7.138gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
|
311SM706-H58SWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 16gf | 3.059gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.013" (0.33mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
|
311SM730-T2SWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 14gf | 2.039gfm | 0.335" (8.5mm) | 0.100" (2.5mm) | 0.015" (0.38mm) | 0.045" (1.1mm) | -55°C ~ 125°C |
|
|
3BV12B014SWITCH DOOR ROD SPST 25A QC |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
412SM4SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 213gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
41SM1-H2SWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
41SM1-H4SWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
41SM2SWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
423AC2-E9SWITCH SNAP ACTION SPDT 21A 125V |
0 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 21A (AC) | 125 V | - | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|
6AS34SWITCH SNAP ACT SPDTX2 15A 125V |
0 |
|
Datasheet |
AS | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 227gf | 14gf | 1.172" (29.8mm) | - | 0.110" (2.8mm) | 0.020" (0.5mm) | -55°C ~ 85°C |
|

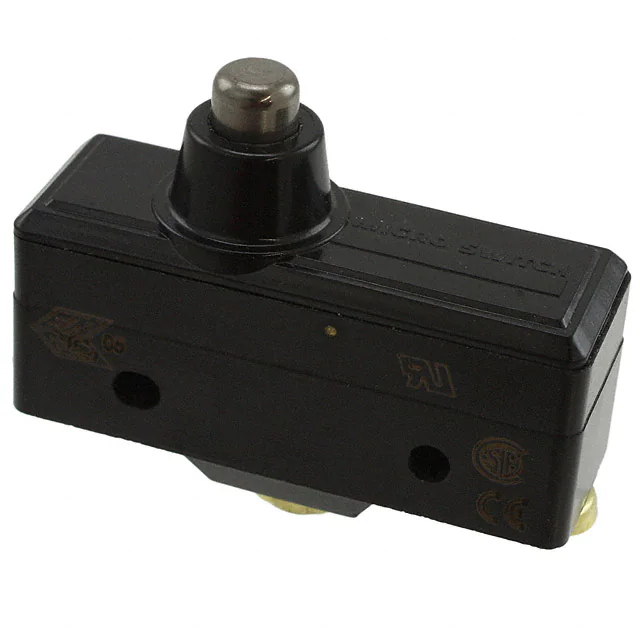

BA-2RB-A4SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
BA-2RQ1-D5SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 397 ~ 624gf | 283gf | 0.859" (21.8mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

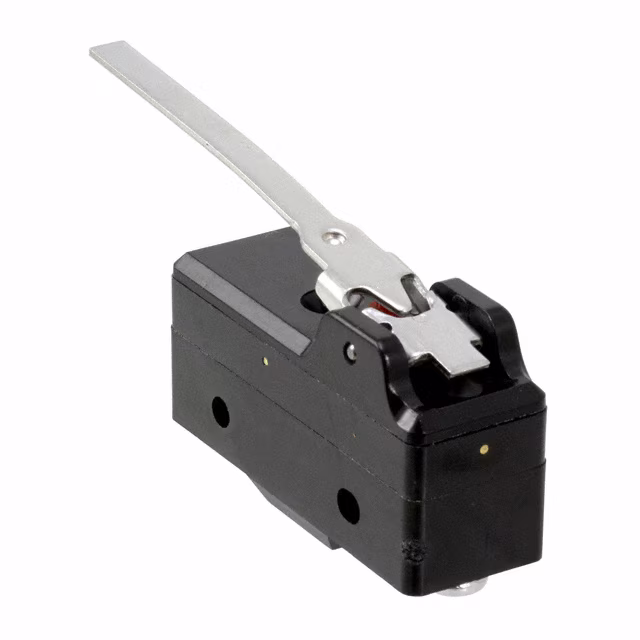

BA-2RVTSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 15gf | 0.750" (19.1mm) | 0.630" (16.0mm) | 0.110" (2.8mm) | 0.077" (1.96mm) | -55°C ~ 85°C |
|

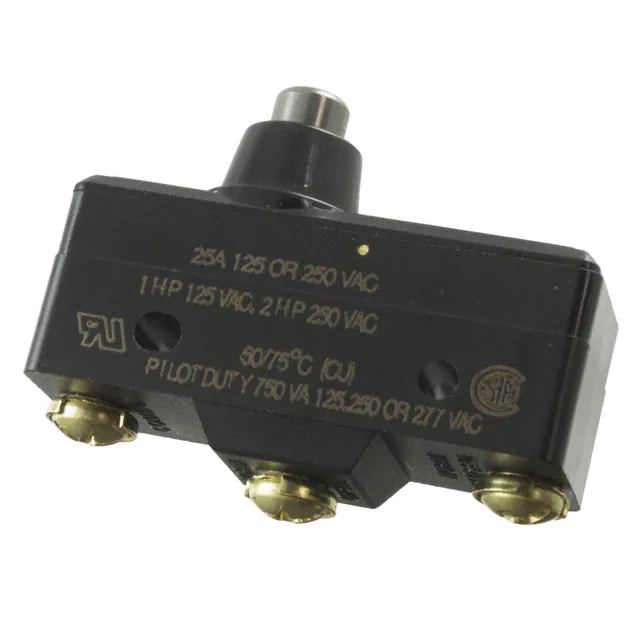

BE-2RB-A2SWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BE | Bulk | Active | SPDT | On-Mom | 25A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Stainless Steel Plunger | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

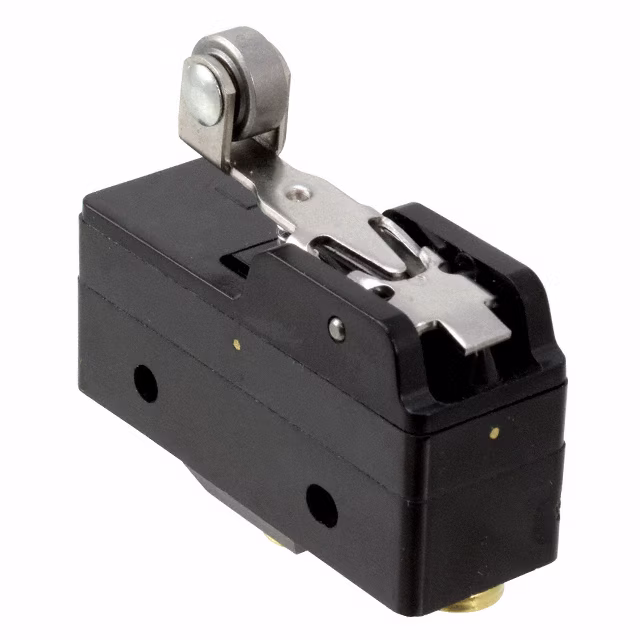

SCN-2412SCSWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
- |
BM | Bulk | Active | SPDT | On-Mom | 22A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | Splash Proof | - | 283gf | 43gf | 1.188" (30.2mm) | - | 0.025" (0.6mm) | 0.094" (2.4mm) | -55°C ~ 121°C |
|
|
BZ-1RW8255051T-SSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | Splash Proof | - | 85gf | 21gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
BZ-2AQ18T1SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 1A (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 397 ~ 680gf | 113gf | 1.313" (33.4mm) | 0.025" (0.65mm) | 0.001" (0.025mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
