Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831612C6.DBSWITCH SNAP ACTION SPDT 20A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 23gf | 6.000gf | 0.600" (15.2mm) | - | 0.047" (1.2mm) | 0.164" (4.2mm) | -20°C ~ 125°C |
|

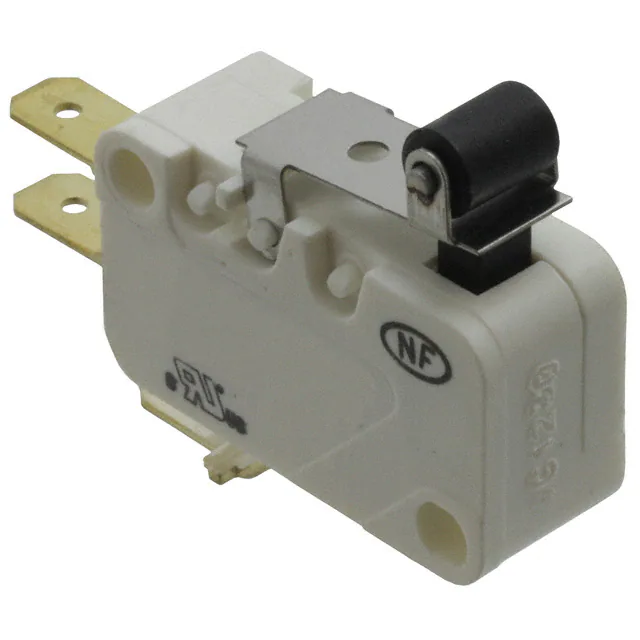

831612C6.EBSWITCH SNAP ACTION SPDT 20A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.806" (20.5mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|

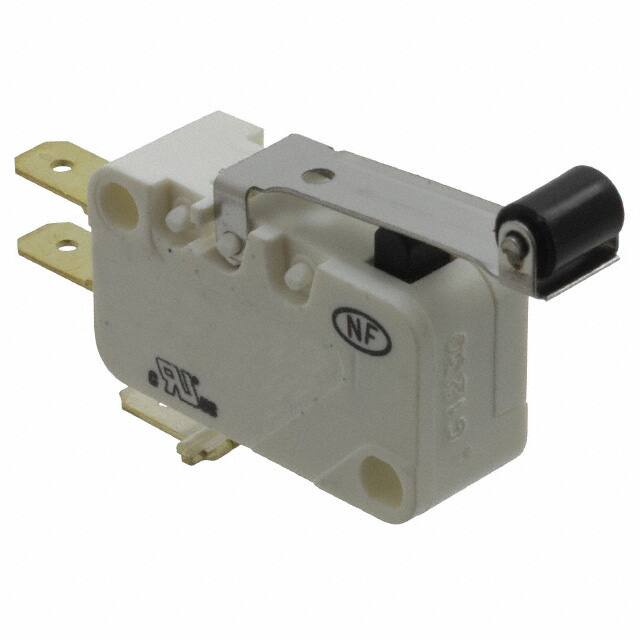

831612C6.GBSWITCH SNAP ACTION SPDT 20A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 41gf | 10gf | 0.806" (20.5mm) | - | 0.028" (0.7mm) | 0.094" (2.4mm) | -20°C ~ 125°C |
|
|
831613A6.45SWITCH SNAP ACTION |
0 |
|
Datasheet |
83161 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831613C3.ABSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 82gf | 20gf | 0.600" (15.2mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831613C3.BCSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 54gf | 14gf | 0.600" (15.2mm) | - | 0.020" (0.5mm) | 0.070" (1.8mm) | -20°C ~ 125°C |
|
|
831613C3.F3ASWITCH SNAP ACTION 16A 1-4 |
0 |
|
Datasheet |
83161 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
831613C6.0.90SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831613C6.CB.90SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 27gf | 7.000gf | 0.600" (15.2mm) | - | 0.041" (1.05mm) | 0.141" (3.6mm) | -20°C ~ 125°C |
|

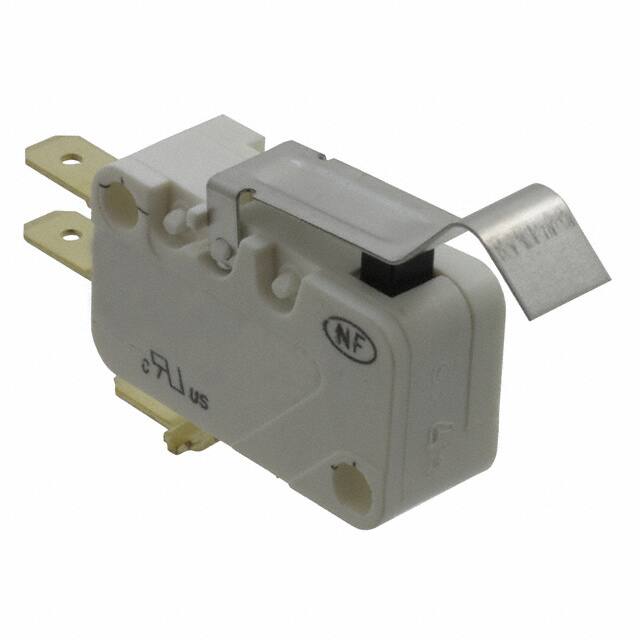

831613C6.FBSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 11gf | 0.806" (20.5mm) | - | 0.025" (0.6mm) | 0.085" (2.16mm) | -20°C ~ 125°C |
|
|
831613C6.GB.90SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 41gf | 10gf | 0.806" (20.5mm) | - | 0.028" (0.7mm) | 0.094" (2.4mm) | -20°C ~ 125°C |
|
|
831615A6.0SWITCH SNAP ACT SPST-NO 4A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPST-NO | Off-Mom | 4A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | 5.000gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
|
831615A6.LSWITCH SNAP ACT SPST-NO 4A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPST-NO | Off-Mom | 4A (AC) | 250 V | - | Telescopic Plunger | Panel Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | 5.000gf | 0.846" (21.5mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
|
831615C2.GBSWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 4A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 13gf | 2.500gf | 0.806" (20.5mm) | - | 0.028" (0.7mm) | 0.087" (2.2mm) | -20°C ~ 125°C |
|
|
831615C6.CBSP4136SWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 4A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 5.100gf | 1.300gf | 0.600" (15.2mm) | - | 0.041" (1.05mm) | 0.141" (3.6mm) | -20°C ~ 125°C |
|
|
831615C6.DASWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 4A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 3.500gf | 0.700gf | 0.600" (15.2mm) | - | 0.098" (2.5mm) | 0.303" (7.7mm) | -20°C ~ 125°C |
|

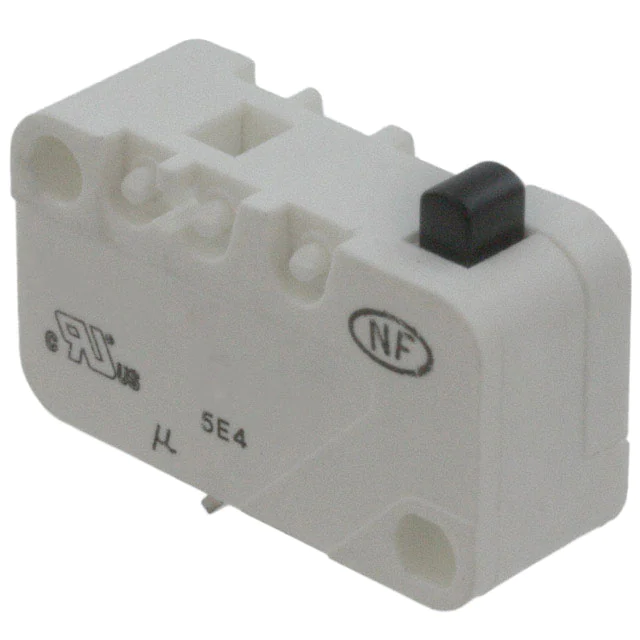

831616C2.0SWITCH SNAP ACTION SPDT 12A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 12A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 510gf | 51gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.035" (0.9mm) | -20°C ~ 125°C |
|
|
831618A6.0SWITCH SNP ACT SPST-NO 0.1A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831618C2.HBSWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 45gf | 11gf | 0.854" (21.7mm) | - | 0.025" (0.6mm) | 0.085" (2.16mm) | -20°C ~ 125°C |
|
|
831618C6.EBSWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.806" (20.5mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
