Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLRCA2SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
WLRCA2-2NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
WLRCA2-LDSSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Spatter Prevention, Status Indicator | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
WLRG2SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
WLRG2-LDSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
WLSDSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 1.600" (40.6mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.252" (6.4mm) | -10°C ~ 80°C |
|
|
WLSD2SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.134" (54.2mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|
|
WLSD21SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.134" (54.2mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|
|
WLSD3SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Ball Bearing Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
|
WLSD-LDSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 4082gf | 907gf | 1.600" (40.6mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.252" (6.4mm) | -10°C ~ 80°C |
|
BA-2RLSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Leaf | Chassis Mount | Solder Lug | - | - | 255gf | 28gf | 0.689" (17.5mm) | - | 0.065" (1.7mm) | 0.062" (1.6mm) | -55°C ~ 85°C |
|
ABV1215619RSWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 320gf | 60gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

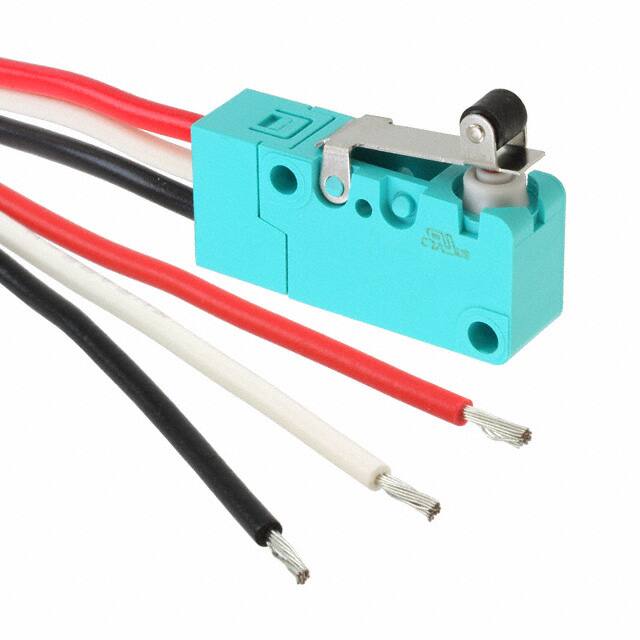

ABV1615619RSWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 320gf | 60gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

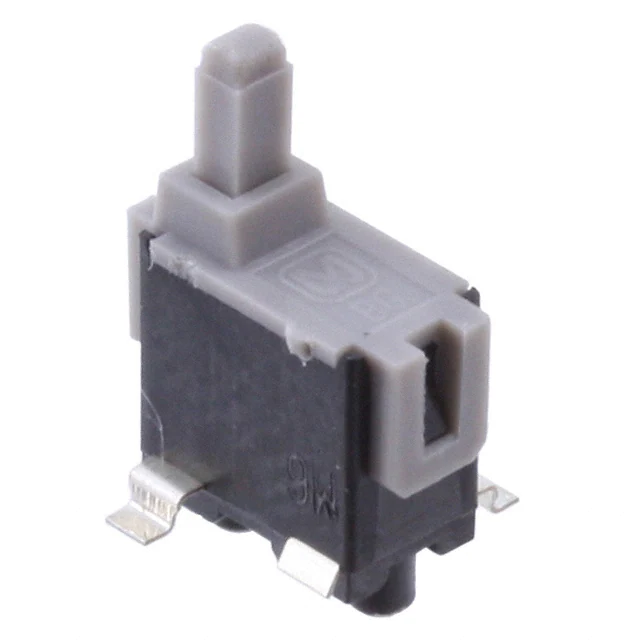

ESE-11MV7SWITCH DETECTOR SPST-NO 0.01A 5V |
0 |
|
Datasheet |
ESE11 | Bulk | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | - | - | - | - | -10°C ~ 70°C |
|
LCS05060P00WA20ACSWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
LCS | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 60gf | - | 0.330" (8.4mm) | 0.047" (1.2mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|

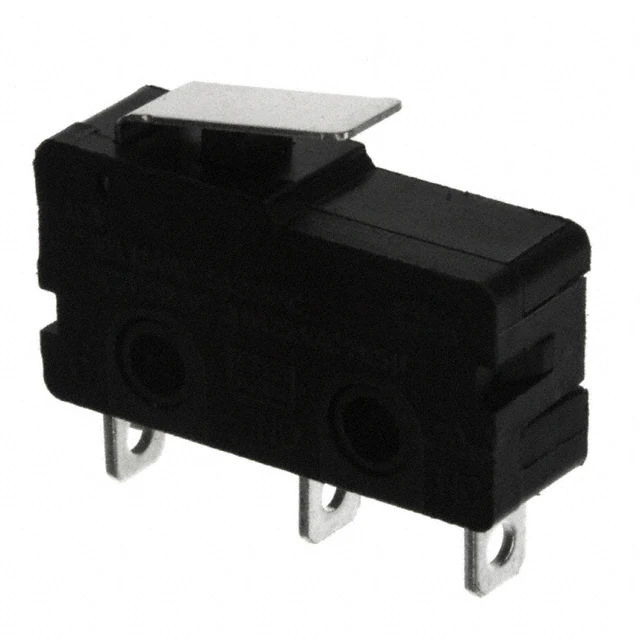

LCA10A140LS2SCSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LCA | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 56gf | - | - | - | - | - | -40°C ~ 125°C |
|

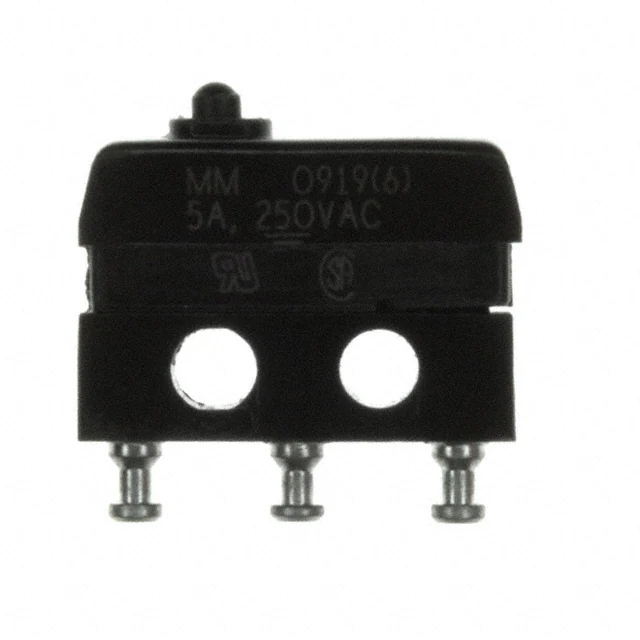

MMGGE2POCSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
MM | Tray | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 142gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 135°C |
|

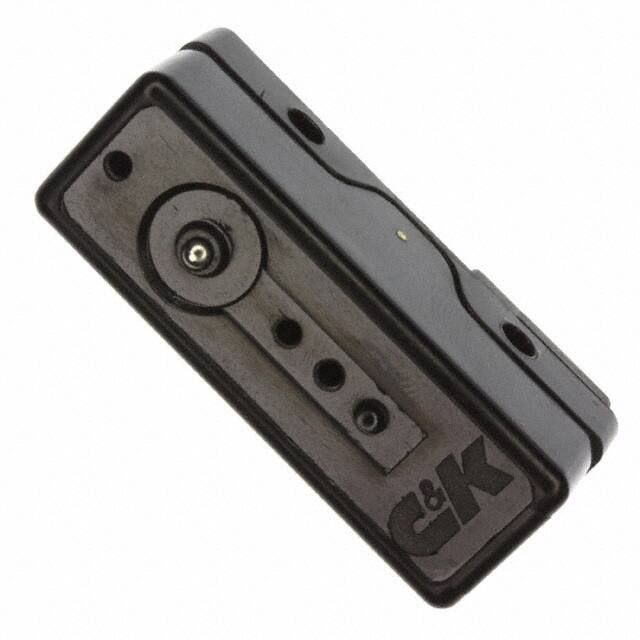

2HB3741SWITCH SNAP ACTION SS FORM |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

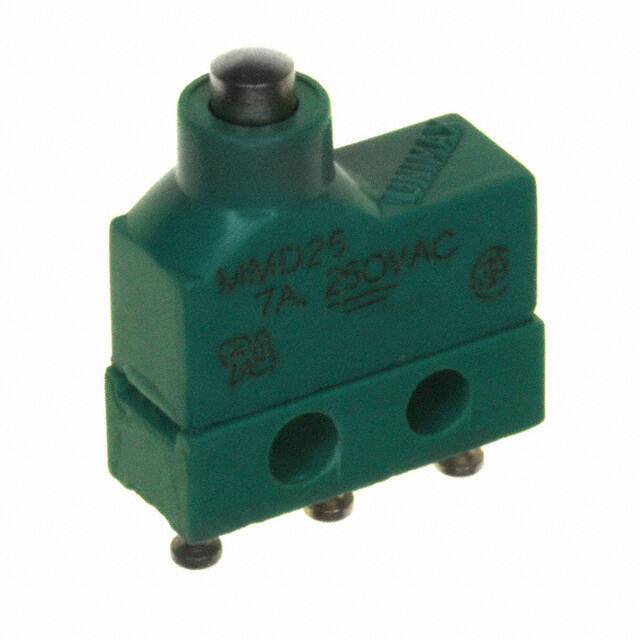

MMD25SWITCH SNAP ACTION SS FORM |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

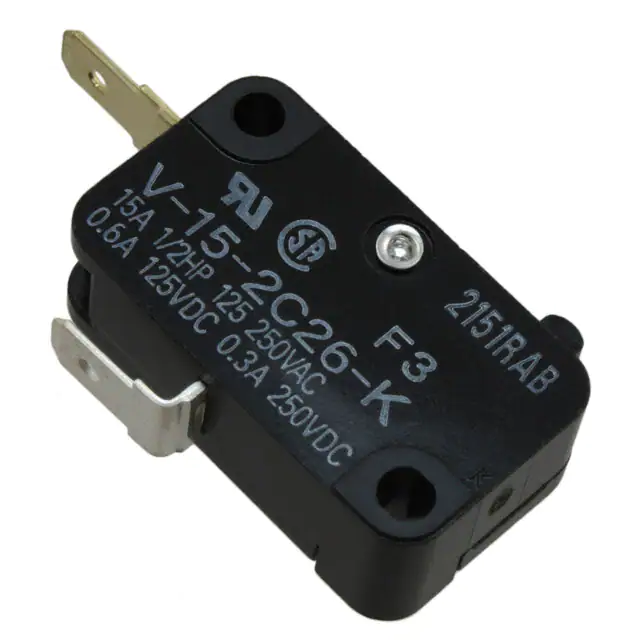

V-152C26K-F3SWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 25gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
