Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831619C6.BASWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 6.000gf | 1.300gf | 0.600" (15.2mm) | - | 0.055" (1.4mm) | 0.172" (4.4mm) | -20°C ~ 125°C |
|

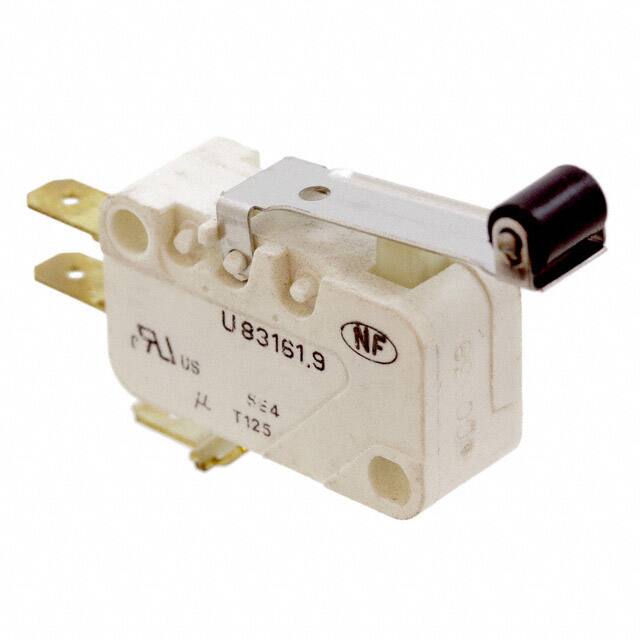

831619C6.GBSWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 13gf | 2.500gf | 0.806" (20.5mm) | - | 0.028" (0.7mm) | 0.087" (2.2mm) | -20°C ~ 125°C |
|
|
831690AC.5.0SWITCH SNAP ACT SPST-NO 8A 125V |
0 |
|
Datasheet |
83169 | Bulk | Active | SPST-NO | Off-Mom | 8A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
|
831690BC.5.0SWITCH SNAP ACT SPST-NC 8A 125V |
0 |
|
Datasheet |
83169 | Bulk | Active | SPST-NC | On-Mom | 8A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
|
831690CC1.2M.FBSWITCH SNAP ACTION SPDT 8A 125V |
0 |
|
Datasheet |
83169 | Bulk | Active | SPDT | On-Mom | 8A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1.2m | 265gf | 51gf | - | - | 0.031" (0.8mm) | - | -20°C ~ 85°C |
|
|
831690CL.5.EBSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
83169 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 428gf | 102gf | - | - | 0.016" (0.4mm) | - | -20°C ~ 85°C |
|
|
831690CR.5.BBSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
83169 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 51gf | - | - | 0.031" (0.8mm) | - | -20°C ~ 85°C |
|
|
831698CR.5.RSWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
83169 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 41gf | - | - | 0.047" (1.2mm) | - | -20°C ~ 85°C |
|
831700B1.0SWITCH SNAP ACT SPST-NC 10A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
831700B1.ALSWITCH SNAP ACT SPST-NC 10A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 51gf | 10gf | 0.409" (10.4mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
831700C1.ELSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 51gf | 10gf | 0.606" (15.4mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
831700C1.MBSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Mushroom Button | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 61gf | 10gf | 0.390" (9.9mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
831704B1.0SWITCH SNAP ACT SPST-NC 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
831704C3.CLSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | Actuator Mounted Left Side | 9.000gf | 1.500gf | 0.520" (13.2mm) | - | 0.041" (1.05mm) | 0.138" (3.5mm) | -20°C ~ 130°C |
|
|
831704C3.FLSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | Actuator Mounted Left Side | 20gf | 3.500gf | 0.512" (13.0mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
|
831704C5.MBSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Mushroom Button | Through Hole, Right Angle | PC Pin | - | - | 61gf | 10gf | 0.390" (9.9mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
831704C7.DLSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | - | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | - | - | - | - | - | - | -20°C ~ 130°C |
|
|
831709A1.BLSWITCH SNP ACT SPST-NO 0.1A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 15gf | 2.500gf | 0.437" (11.1mm) | - | 0.025" (0.6mm) | 0.079" (2.0mm) | -20°C ~ 130°C |
|
|
831709B1.0SWITCH SNP ACT SPST-NC 0.1A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPST-NC | On-Mom | 100mA (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
831709C2.CRSWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 17gf | 3.000gf | 0.420" (10.7mm) | - | 0.020" (0.5mm) | 0.068" (1.73mm) | -20°C ~ 130°C |
