Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831180C1.NSWITCH MICRO 5A 250V |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

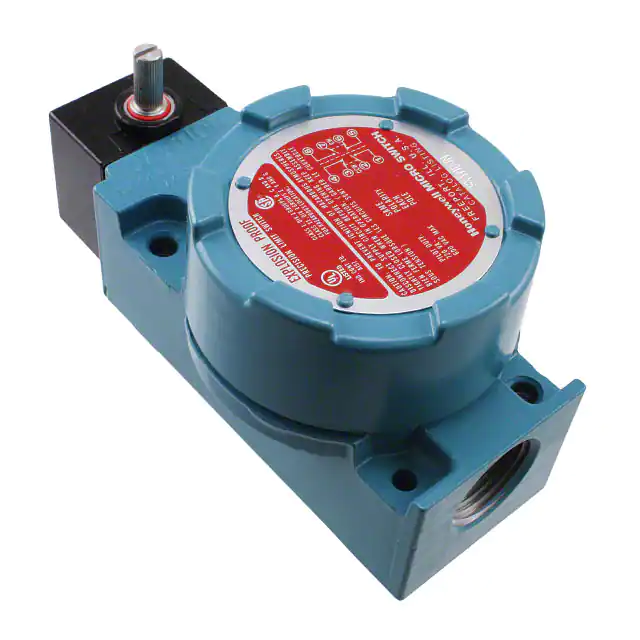

LSXYMB4NSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | DPDT | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 18° | 10° | 57° | -40°C ~ 121°C |
|
SZL-VL-BSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SZL-VL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 250 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 342 ~ 800gf | 21 ~ 50gf | - | 20° | 10° | 75° | -20°C ~ 60°C |
|
924CE1-S3SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
924CE | Bulk | Active | SPDT (BBM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 3' | 2300gf | - | 0.689" (17.5mm) | 0.087" (2.2mm) | - | 0.039" (1.0mm) | 0°C ~ 70°C |
|
E21-00AXSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC), 250mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 15gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
DC2CA1RBSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 163gf | - | 0.622" (15.8mm) | 0.197" (5.0mm) | 0.031" (0.8mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
|
DB2CA1RCSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 95gf | - | 0.638" (16.2mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
|
DB2CB1RCSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 95gf | - | 0.638" (16.2mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
|
PP1-DB7-2B2SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
PP1 | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | White Actuator | 300gf | - | 0.654" (16.6mm) | - | - | - | 0°C ~ 85°C |
|
|
831060C1.M2LSWITCH SNAP ACTION 10A SCRW |
0 |
|
Datasheet |
83106 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831060C1.QLSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 285gf | 46gf | - | 0.125" (3.2mm) | 0.041" (1.05mm) | - | -20°C ~ 85°C |
|
|
831060C1.TRSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | Actuator Mounted Right Side | 408gf | 82gf | - | 0.060" (1.5mm) | 0.020" (0.5mm) | - | -20°C ~ 85°C |
|
|
831060C3.QLSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Actuator Mounted Left Side | 285gf | 46gf | - | 0.125" (3.2mm) | 0.041" (1.05mm) | - | -20°C ~ 85°C |
|
|
831060C3.TLSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Actuator Mounted Left Side | 408gf | 82gf | - | 0.060" (1.5mm) | 0.020" (0.5mm) | - | -20°C ~ 85°C |
|
|
831066C1.VLSWITCH SNAP ACTION 10A SCREW RLR |
0 |
|
Datasheet |
83106 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831066C2.VLSWITCH SNAP ACTION 10A SLDR RLR |
0 |
|
Datasheet |
83106 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831066C3.GLSWITCH SNAP ACTION 10A 1/4 |
0 |
|
Datasheet |
83106 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831066C3.TLSWITCH SNAP ACTION 10A 1/4 RLR |
0 |
|
Datasheet |
83106 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831066C3.VRSWITCH SNAP ACTION 10A 1/4 RLR |
0 |
|
Datasheet |
83106 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831090C2.ARSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83109 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | Actuator Mounted Right Side | 122gf | 25gf | - | 0.244" (6.2mm) | 0.083" (2.1mm) | - | -20°C ~ 85°C |
