Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI2DDR3212NCEIC MUX/DEMUX 14 X 2:1 48TFBGA |
0 |
|
- |
- | 48-TFBGA | Tray | Obsolete | Memory | 2:1 | - | 14 | 8Ohm (Typ) | 1.5V, 1.8V | - | 2.7GHz | DDR3 | - | - | - | Surface Mount | 48-TFBGA (4.5x4.5) |
 Exp Pad.jpg)
|
PI2DDR3212ZLEIC MUX/DEMUX 14 X 2:1 52TQFN |
0 |
|
Datasheet |
- | 52-WFQFN Exposed Pad | Tray | Obsolete | Memory | 2:1 | - | 14 | 8Ohm (Typ) | 1.5V, 1.8V | - | 2.7GHz | DDR3 | - | - | - | Surface Mount | 52-TQFN (3.5x9) |
|
PI2PCIE2442ZHEIC SWITCH 8 X 2:4 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tray | Obsolete | PCI Express® | 4:2 | - | 8 | 10Ohm | 1.5V ~ 1.8V | - | 2.5GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
HMC955LC4BTRIC DEMUX 1 X 1:2 24CQFN |
0 |
|
Datasheet |
- | 24-TFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Telecommunications | 2:1 | - | 1 | - | 3V ~ 3.6V | - | - | Programmable Output | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-CSMT (4x4) |
|
FSA3030UMXIC SWITCH 2 X DP3T 12-UMLP |
0 |
|
Datasheet |
- | 12-UFQFN | Tape & Reel (TR) | Obsolete | USB | - | DP3T | 1 | 4.5Ohm (USB), 4Ohm (Audio) (Typ) | 2.5V ~ 4.5V | - | 2GHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UMLP (1.8x1.8) |
|
|
PI3PCIE3413ZHEIC PCIE 3:1 MUX/DEMUX SW 42TQFN |
0 |
|
Datasheet |
PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tray | Obsolete | PCI Express® | 3:1 | - | 1 | - | 3V ~ 3.6V | - | 8.3GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|

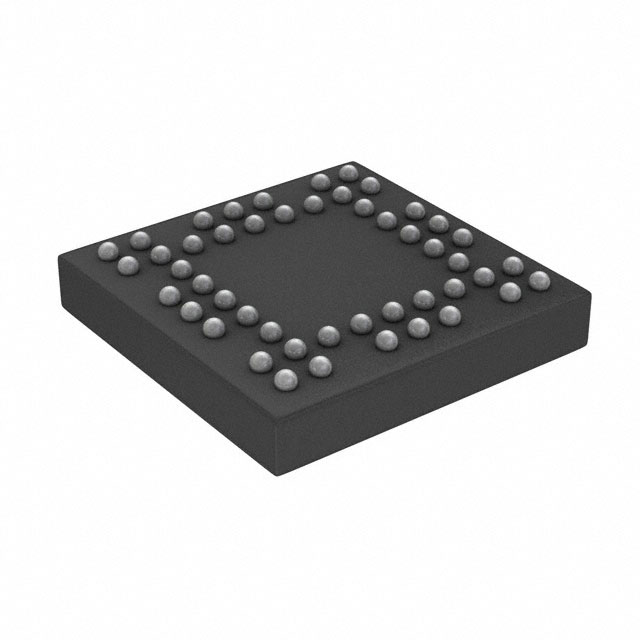

PI3WVR12612NEEIC VIDEO SWITCH DP/HDMI 50TFBGA |
0 |
|
Datasheet |
- | 50-TFBGA | Tray | Obsolete | Video | 2:1 | - | 1 | - | 3.3V | - | 4.1GHz | HDMI | - | - | - | Surface Mount | 50-TFBGA (5x5) |
|
PI3USB3102ZLEIC USB3.0&USB2.0 SWITCH 32TQFN |
0 |
|
- |
- | 32-WFQFN Exposed Pad | Tray | Obsolete | USB | 2:1 | - | 4 | 13Ohm | 3.3V | - | 4.7GHz | USB 2.0, USB 3.0 | - | - | - | Surface Mount | 32-TQFN (3x6) |
|
|
PI3WVR12412ZHEIC VIDEO SWITCH DP/HDMI 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | - | 1 | - | 3.3V | - | 4.6GHz | HDMI | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
MT8806APR1IC ANLG SWITCH ARRAY 8X4 28PLCC |
0 |
|
Datasheet |
- | 28-LCC | Tape & Reel (TR) | Active | Telecommunications | 8:4 | - | 1 | 65Ohm | 4.5V ~ 13.2V | ±4.5V | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC |
|
MT8808AE1IC ANLG SWITCH ARRAY 8X8 28DIP |
0 |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Obsolete | Telecommunications | 8:8 | - | 1 | 65Ohm | 4.5V ~ 13.2V | ±4.5V | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 28-PDIP |
|
|
MT8808APR1IC ANLG SWITCH ARRAY 8X8 28PLCC |
0 |
|
Datasheet |
- | 28-LCC | Tape & Reel (TR) | Active | Telecommunications | 8:8 | - | 1 | 65Ohm | 4.5V ~ 13.2V | ±4.5V | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC |
|
|
MT8809AE1IC ANLG SWITCH ARRAY 8X8 28DIP |
0 |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Obsolete | Telecommunications | 8:8 | - | 1 | 65Ohm | 4.5V ~ 13.2V | - | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 28-PDIP |
|
MT8809AP1IC ANLG SWITCH ARRAY 8X8 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Obsolete | Telecommunications | 8:8 | - | 1 | 65Ohm | 4.5V ~ 13.2V | - | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
MT8809APR1IC ANLG SWITCH ARRAY 8X8 28PLCC |
0 |
|
Datasheet |
- | 28-LCC | Tape & Reel (TR) | Obsolete | Telecommunications | 8:8 | - | 1 | 65Ohm | 4.5V ~ 13.2V | - | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC |
|
|
MT8812AP1IC ANLG SWITCH ARRAY 8X12 44PLCC |
0 |
|
Datasheet |
- | 44-LCC | Tube | Active | Telecommunications | 8:12 | - | 1 | 65Ohm | 4.5V ~ 13.2V | - | 45MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC |
|
|
MT8812APR1IC ANLG SWITCH ARRAY 8X12 44PLCC |
0 |
|
Datasheet |
- | 44-LCC | Tape & Reel (TR) | Active | Telecommunications | 8:12 | - | 1 | 65Ohm | 4.5V ~ 13.2V | - | 45MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC |
|
MT8816AE1IC ANLG SWITCH ARRAY 8X16 40DIP |
0 |
|
Datasheet |
- | 40-DIP (0.600", 15.24mm) | Tube | Active | Telecommunications | 8:16 | - | 1 | 65Ohm | 4.5V ~ 13.2V | ±4.5V | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 40-PDIP |
|
MT8806AE1IC ANLG SWITCH ARRAY 8X4 24DIP |
0 |
|
Datasheet |
- | 24-DIP (0.600", 15.24mm) | Tube | Obsolete | Telecommunications | 8:4 | - | 1 | 65Ohm | 4.5V ~ 13.2V | ±4.5V | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 24-PDIP |
|

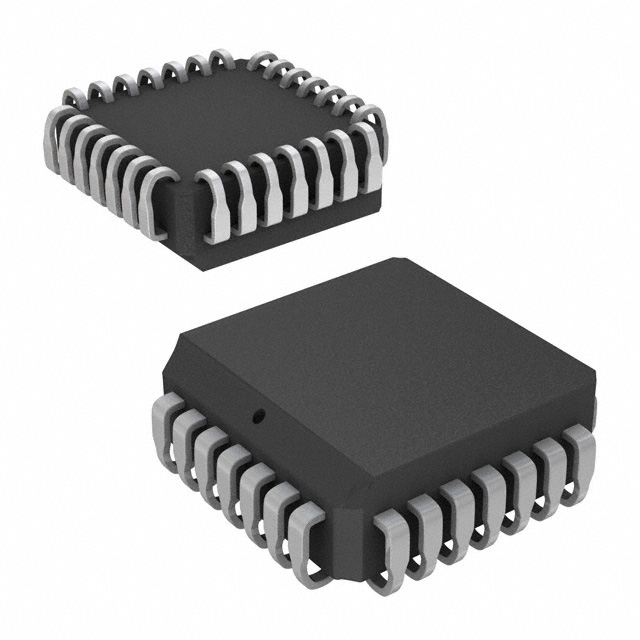

MT8806AP1IC ANLG SWITCH ARRAY 8X4 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Telecommunications | 8:4 | - | 1 | 65Ohm | 4.5V ~ 13.2V | ±4.5V | 45MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
