Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG538ADN-E3IC AMP/VIDEO/MUX LP 4/8CH 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Bulk | Obsolete | Ultrasound, Video | 4:1 | - | 2 | 90Ohm | 10V ~ 21V | - | 500MHz | T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|

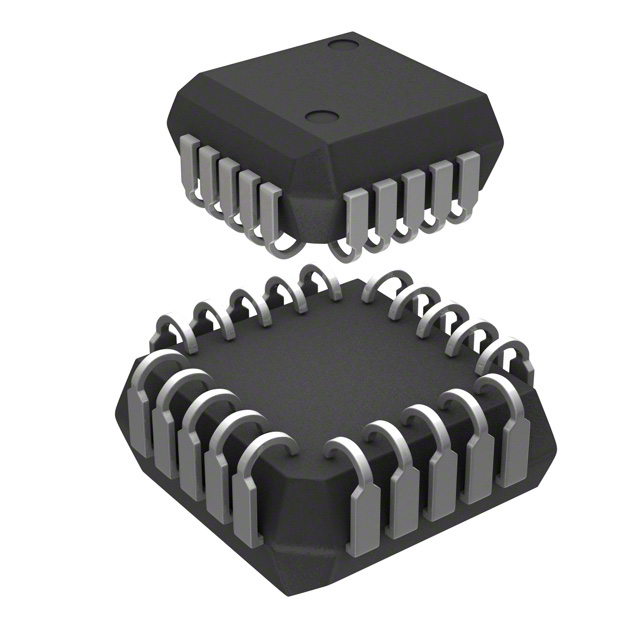

DG540DN-E3IC SWITCH QUAD SPST 20PLCC |
0 |
|
Datasheet |
- | 20-LCC (J-Lead) | Bulk | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 3V ~ 15V | ±3V ~ 15V | 500MHz | RGB, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-PLCC (9x9) |
|
DG541DY-E3IC SWITCH QUAD SPST 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 3V ~ 15V | ±3V ~ 15V | 500MHz | RGB, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG542DJ-E3IC SWITCH QUAD SPST 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Bulk | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 3V ~ 15V | ±3V ~ 15V | 500MHz | RGB, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
DG542DY-E3IC SWITCH QUAD SPST 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Video | 1:1 | SPST | 4 | 60Ohm | 3V ~ 15V | ±3V ~ 15V | 500MHz | RGB, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
.jpg)
|
DG884DN-E3IC VIDEO MULTIPLEXER 8X4 44PLCC |
0 |
|
Datasheet |
- | 44-LCC (J-Lead) | Bulk | Obsolete | Video | 8:4 | - | 1 | 90Ohm | 13V ~ 20V | - | 300MHz | T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
PI3PCIE3412ZHEIC MULTIPLEXER PCIE 4CH 42TQFN |
0 |
|
Datasheet |
PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tray | Obsolete | PCI Express® | 2:1 | - | 4 | 5Ohm (Typ) | 3V ~ 3.6V | - | 8.2GHz | Bi-Directional, SATA, USB 3.0 | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3PCIE3415ZHEIC MULTIPLEXER PCIE 4CH 42TQFN |
0 |
|
Datasheet |
PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tray | Obsolete | PCI Express® | 2:1 | - | 4 | - | 3V ~ 3.6V | - | 8.7GHz | Bi-Directional, SATA, USB 3.0 | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
FSUSB73UMXIC USB MUX/SWITCH 16UMLP |
0 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Obsolete | USB | 3:1 | - | 1 | 9Ohm | 2.5V ~ 4.4V | - | - | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|
CPC7220WIC ANALOG SWITCH 8CH HV 28-PLCC |
0 |
|
- |
- | 28-LCC (J-Lead) | Tube | Discontinued at Digi-Key | Ultrasound | 1:1 | SPST | 8 | 38Ohm | 4.5V ~ 6V | - | - | Buffered | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
CPC7220WTRIC ANALOG SWITCH 8CH HV 28-PLCC |
0 |
|
- |
- | 28-LCC (J-Lead) | Tape & Reel (TR) | Discontinued at Digi-Key | Ultrasound | 1:1 | SPST | 8 | 38Ohm | 4.5V ~ 6V | - | - | Buffered | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
CPC7232KIC ANALOG SWITCH 8CH HV 48-LQFP |
0 |
|
- |
- | 48-LQFP | Tray | Obsolete | Ultrasound | 1:1 | SPST | 8 | 38Ohm | 4.5V ~ 6V | - | - | Buffered | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP |
|
|
CPC7232WIC ANALOG SWITCH 8CH HV 28-PLCC |
0 |
|
- |
- | 28-LCC (J-Lead) | Tube | Obsolete | Ultrasound | 1:1 | SPST | 8 | 38Ohm | 4.5V ~ 6V | - | - | Buffered | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
AOZ6184QTIC USB 2.0 SWITCH DPDT 10QFN |
0 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | Audio, USB | - | DPDT | 1 | 10Ohm | 1.65V ~ 4.5V | - | 1.1GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
FSA9285UCXIC MULTIMEDIA SWITCH 20-WLCSP |
0 |
|
Datasheet |
- | 20-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Audio, USB | 3:1 | - | 1 | 4Ohm (Audio), 17Ohm (USB) | 2.7V ~ 4.4V | - | - | I2C, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-WLCSP (1.96x1.56) |
|
MAX4986ETO+TIC MUX/DEMUX SAS/SATA 42TQFN |
0 |
|
- |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Telecommunications | 2:1 | - | 1 | - | 3V ~ 3.6V | - | - | SAS/SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (3.5x9) |
|
|
PI3L720ZHEIC MUX/DEMUX 8 X 2:1 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tray | Obsolete | Telecommunications | 2:1 | - | 8 | 6.5Ohm | 3V ~ 3.6V | - | 650MHz | 10/100/1000 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI3L500-AZFEIC MUX/DEMUX 8 X 2:1 56TQFN |
0 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tray | Obsolete | Telecommunications | 2:1 | - | 8 | 6.5Ohm | 3V ~ 3.6V | - | 550MHz | 10/100/1000 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-TQFN (11x5) |
|
|
PI3PCIE3422ZHEIC MUX/DEMUX 8 X SPST 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tray | Obsolete | PCI Express® | 2:1 | - | 2 | 15Ohm | 3V ~ 3.6V | - | 7GHz | Bi-Directional | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI2DBS6212ZHEIC MUX/DEMUX DUAL 2:1 28TQFN |
0 |
|
Datasheet |
- | 28-VFQFN Exposed Pad | Tray | Obsolete | Telecommunications | 2:1 | - | 2 | - | 1.5V ~ 1.8V | - | 4.1GHz | SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
