Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3VDP612-AZFEIC DEMULTIPLEXER 1X2 56TQFN |
0 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | - | 1 | 10Ohm | 3.3V | - | 3.25GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-TQFN (11x5) |
|

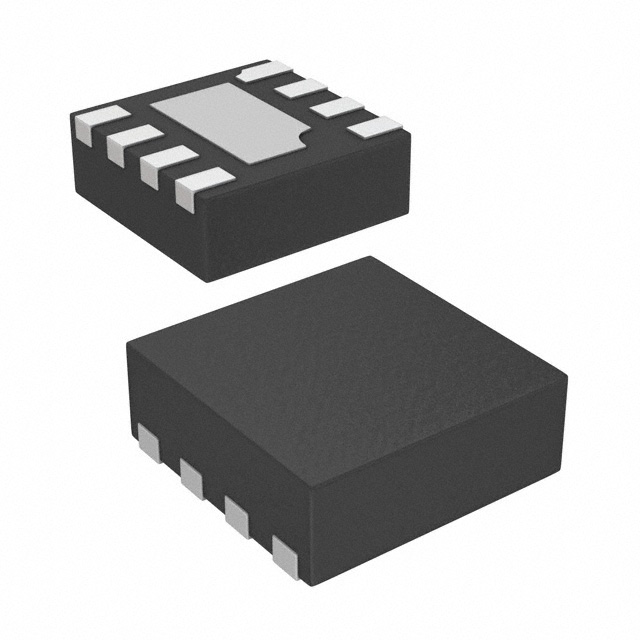

ISL54409IRTZ-TIC SW USB/AUDIO DUAL SPT 8TDFN |
0 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio, USB | 1:1 | SPST | 2 | 2.8Ohm | 2.7V ~ 5V | - | - | Depop, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN-EP (2x2) |
|
|
ISL54410IRTZ-TIC SW USB/AUDIO DUAL SPST 8TDFN |
0 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio, USB | 1:1 | SPST | 2 | 2.8Ohm | 2.7V ~ 5V | - | - | Depop, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN-EP (2x2) |
|
MAX14806CCM+TIC MUX DUAL 8CH HV 48LQFP |
0 |
|
Datasheet |
- | 48-LQFP | Tape & Reel (TR) | Active | Ultrasound | 1:1 | SPST | 16 | 23Ohm | 2.7V ~ 5.5V | - | 20MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
|
MAX14805ECM+IC MUX DUAL 8CH HV 48LQFP |
0 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 16 | 23Ohm | 2.7V ~ 5.5V | - | 20MHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
TX810IRHHRIC SWITCH 8CH PROG 36VQFN |
0 |
|
Datasheet |
- | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Ultrasound | 1:1 | SPST | 8 | 30Ohm (Typ) | 2.5V ~ 5V | ±2.5V ~ 5V | 140MHz | Diode Bridge, Programmable Bias Current | 0°C ~ 70°C (TA) | - | - | Surface Mount | 36-VQFN (6x6) |
|
ISL54224IRTZ-TIC MULTIPLEXER DUAL 2:1 10TDFN |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 5.25V | - | 780MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ISL54225IRTZ-TIC MULTIPLEXER DUAL 2:1 10TDFN |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 5.25V | - | 780MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
ISL54225IRUZ-T7AIC MULTIPLEXER DUAL 2:1 10TQFN |
0 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 20Ohm | 2.7V ~ 5.25V | - | 780MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
|
ISL54227IRTZ-TIC USB SWITCH DUAL DPST 10TDFN |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 17Ohm | 2.7V ~ 5.25V | - | 790MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
ISL54227IRUZ-TIC USB SWITCH DUAL DPST 10TQFN |
0 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 17Ohm | 2.7V ~ 5.25V | - | 790MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
|
ISL54227IRUZ-T7AIC USB SWITCH DUAL DPST 10TQFN |
0 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | DPST | 1 | 17Ohm | 2.7V ~ 5.25V | - | 790MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
NCN9252MUTAGIC USB SWITCH DP3T 12UQFN |
0 |
|
Datasheet |
- | 12-UFQFN | Tape & Reel (TR) | Obsolete | USB, UART | - | DP3T | 2 | 4.5Ohm | 1.65V ~ 4.5V | - | 525MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UQFN (1.7x2) |
|
FSA321UMXIC SWITCH MULTIMEDIA 10-UMLP |
0 |
|
- |
- | 10-UFQFN | Tape & Reel (TR) | Obsolete | Audio, USB | - | DPDT | 1 | 2.7Ohm (Audio), 11Ohm (USB) | 1.8V ~ 4.3V | - | 720MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UMLP (1.8x1.4) |
|
FSA9280AUMXIC USB MULTIMEDIA SWITCH 20-UMLP |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - |
|
PI2DBS212QEXIC MUX/DEMUX 2X1 1.8V 20QSOP |
0 |
|
Datasheet |
- | 20-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Telecommunications | 2:1 | - | 2 | 10Ohm | 1.2V ~ 1.8V | - | 2GHz | SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QSOP |
|
PI2DBS412ZHEXIC MUX/DEMUX 2X1 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | 2:1 | SPDT | 4 | - | 1.5V ~ 2V | - | 1.8GHz | - | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI2PCIE212ZHEXIC PCI-E MUX/DEMUX 2X1 28TQFN |
0 |
|
Datasheet |
- | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | 2:1 | - | 2 | - | 1.5V ~ 2V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
|
|
PI2PCIE412-DZHEXIC PCI-E MUX/DEMUX 8:16 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | - | 4 | - | 1.5V ~ 2V | - | 1.4GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3PCIE2215ZHEXIC PCI-E MUX/DEMUX 2X1 28TQFN |
0 |
|
Datasheet |
PCI Express®, TDP™ | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | PCI Express® | 2:1 | - | 2 | 12Ohm | 3V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
