Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3USB14-AQEXIC USB SWITCH 4:1 16QSOP |
0 |
|
- |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | USB | 4:1 | - | 2 | 8Ohm | 3.3V | - | 815MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
PI3USB14LEXIC USB SWITCH DUAL 4X1 16TSSOP |
0 |
|
- |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | USB | 4:1 | - | 2 | 8Ohm | 3.3V | - | 815MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
PI3USB14QEXIC USB SWITCH DUAL 4X1 16QSOP |
0 |
|
- |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | USB | 4:1 | - | 2 | 8Ohm | 3.3V | - | 815MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|

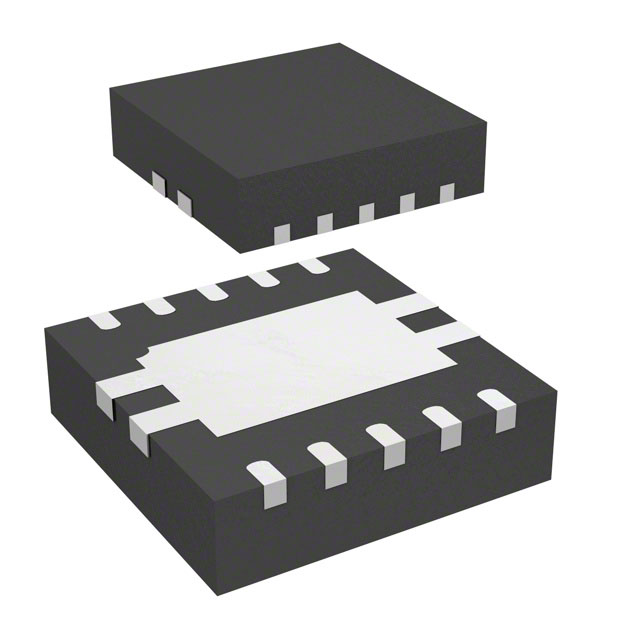

PI3USB221ZEEIC USB SWITCH 10TDFN |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tube | Obsolete | USB | 2:1 | - | 1 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
|
PI3USB221ZEEXIC USB SWITCH 10TDFN |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | - | 1 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
PI3V713-AZLEIC MUX/DEMUX 7CH 32TQFN |
0 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | - | 7 | 5.6Ohm | 3.3V | - | 1.7GHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (3x6) |
|
PI3VDP12412NEEIC DEMULTIPLEXER 4LANE 48TFBGA |
0 |
|
- |
- | 48-TFBGA | Tray | Obsolete | Video | 2:1 | - | 1 | 10Ohm (Typ) | 3.3V | - | 4.1GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-TFBGA (5x5) |
|
|
PI3VDP12412NEEXIC DEMULTIPLEXER 4LANE 48TFBGA |
0 |
|
- |
- | 48-TFBGA | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 1 | 10Ohm (Typ) | 3.3V | - | 4.1GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-TFBGA (5x5) |
|
PI3VDP12412ZHEIC DEMULTIPLEXER 4LANE 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | - | 1 | 10Ohm (Typ) | 3.3V | - | 4.6GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3VDP12412ZHEXIC DEMULTIPLEXER 4LANE 42TQFN |
0 |
|
- |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 1 | 10Ohm (Typ) | 3.3V | - | 4.6GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3VDP3212ZLEIC DEMULTIPLEXER 2LANE 32TQFN |
0 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tube | Obsolete | Video | 2:1 | - | 1 | 10Ohm (Typ) | 3.3V | - | 4.7GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (3x6) |
|
PI3VDP612-AZFEXIC DEMULTIPLEXER 4LANE 56TQFN |
0 |
|
Datasheet |
- | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 1 | 10Ohm | 3.3V | - | 3.25GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-TQFN (11x5) |
|
|
PI3VDP612-AZHEXIC DEMULTIPLEXER 4LANE 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 1 | 10Ohm | 3.3V | - | 3.25GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI3WVR12612NEEXIC VIDEO SWITCH DP/HDMI 50TFBGA |
0 |
|
Datasheet |
- | 50-TFBGA | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 1 | - | 3.3V | - | 4.1GHz | HDMI | - | - | - | Surface Mount | 50-TFBGA (5x5) |
|
HV214FG-GIC ULTRASOUND SWITCH 1:1 48LQFP |
0 |
|
Datasheet |
- | 48-LQFP | Tray | Active | Ultrasound | 1:1 | SPST | 8 | 55Ohm | 40V ~ 250V | ±40V ~ 210V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|
HV214PJ-GIC ULTRASOUND SWITCH 1:1 28PLCC |
0 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Ultrasound | 1:1 | SPST | 8 | 55Ohm | 40V ~ 250V | ±40V ~ 210V | 50MHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.5x11.5) |
|
|
PI3PCIE3442ZHEIC PCI EXCHANGE SW 3.0 42-TQFN |
0 |
|
Datasheet |
PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tray | Obsolete | PCI Express® | 1:1 | - | 8 | - | 3V ~ 3.6V | - | 6.5GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI3PCIE3442ZLEIC PCI EXCHANGE SW 3.0 40-TQFN |
0 |
|
Datasheet |
PCI Express® (PCIe) | 40-WFQFN Exposed Pad | Tray | Obsolete | PCI Express® | 1:1 | - | 8 | - | 3V ~ 3.6V | - | 6.5GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-TQFN (3x6) |
|

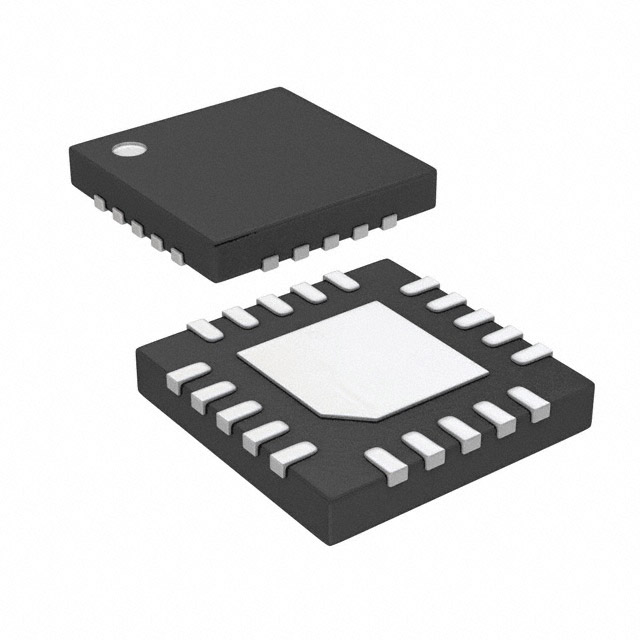

PI3DBS3224ZNAEXIC MUX/DEMUX HS 2:4 20-TQFN |
0 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | - | 2 | 19Ohm | 3V ~ 3.6V | - | 1.2GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (3x3) |
|
|
PI2USB4122ZHEIC USB MUX/DEMUX SWITCH 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tray | Obsolete | USB | 4:1 | - | 2 | - | 1.8V | - | 2.6GHz | USB 3.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
