Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7705301EAIC SW SPST-NCX4 175OHM 16CDIP |
0 |
|
- |
- | Tube | Active | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
7705302EAIC SWITCH SPST-NCX4 50OHM 16CDIP |
0 |
|
- |
- | Tube | Active | SPST - NC | 1:1 | 4 | 50Ohm | - | 12V ~ 20V | ±5V ~ 20V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
8100603EAIC SW ANLG CMOS SPDT |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8100612EAIC SW ANLG CMOS SPDT |
0 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAX14560EWC+TIC ANALOG SWITCH 12WLP |
0 |
|
- |
* | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAX3997ETM+IC MULTIPLEXER 4CH 48TQFN |
0 |
|
- |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NLAS5223CLMUTAGIC SWITCH SPDTX2 350MOHM 10UQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 350mOhm | 50mOhm (Max) | 1.65V ~ 4.5V | - | 50ns, 30ns | 24MHz | 38pC | 60pF | 5nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
MP2735DQG-LF-PIC SWITCH SPDT X 2 450MOHM 10QFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 450mOhm | 10mOhm | 1.65V ~ 5.5V | - | 36ns, 30ns | 50MHz | - | 55pF | 40nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.4x1.8) |
|
|
MP2735DQG-LF-ZIC SWITCH SPDT X 2 450MOHM 10QFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 450mOhm | 10mOhm | 1.65V ~ 5.5V | - | 36ns, 30ns | 50MHz | - | 55pF | 40nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.4x1.8) |
|
MAX14803CCM+TG5EIC SW SPST-NOX16 48OHM 48LQFP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 16 | 48Ohm | 2.4Ohm | 40V ~ 250V | ±160V | 3.5µs, 3.5µs | 20MHz | 820pC | 11pF | 2µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-LQFP (7x7) |
|

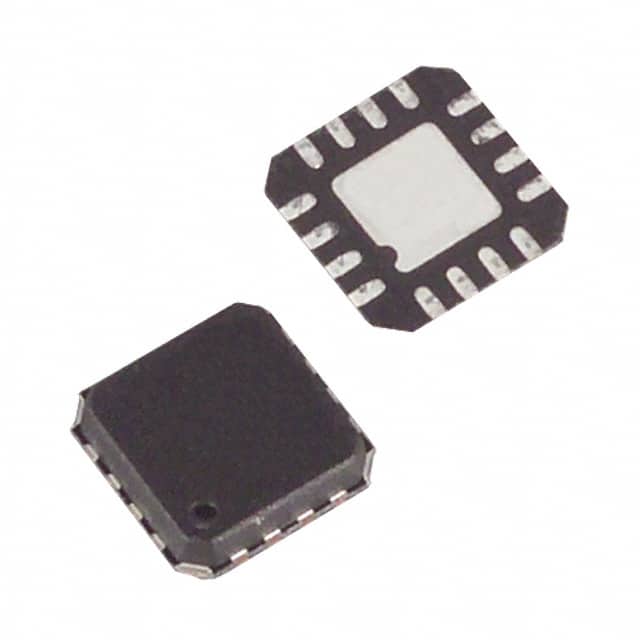

MAX4523EGE+IC SW QUAD ANLG LV SPST 16QFN |
0 |
|
Datasheet |
* | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
DG445CY+IC SWITCH SPST-NOX4 85OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX364EPE+IC SWITCH SPST-NCX4 85OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
|
MAX365EPE+IC SWITCH SPST-NOX4 85OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
MAX4610EPD+IC SWITCH SPST-NOX4 100OHM 14DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm (Typ) | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
MAX4612EPD+IC SW SPST-NO/NCX4 100OHM 14DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 100Ohm | 1Ohm (Typ) | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
MAX4712CPE+IC SWITCH SPST-NOX4 25OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 25Ohm | 200mOhm (Typ) | 2.7V ~ 11V | ±2.7V ~ 5.5V | 125ns, 80ns | - | 25pC | 8pF, 8pF | 500pA | -87dB @ 1MHz | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
DG3535DB-T1-E1IC SW SPDTX2 400MOHM 10MICRO FT |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 400mOhm | 50mOhm (Max) | 2.7V ~ 3.3V | - | 82ns, 73ns | - | 21pC | 145pF | 2nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-Micro Foot® (2x1.5) |
|

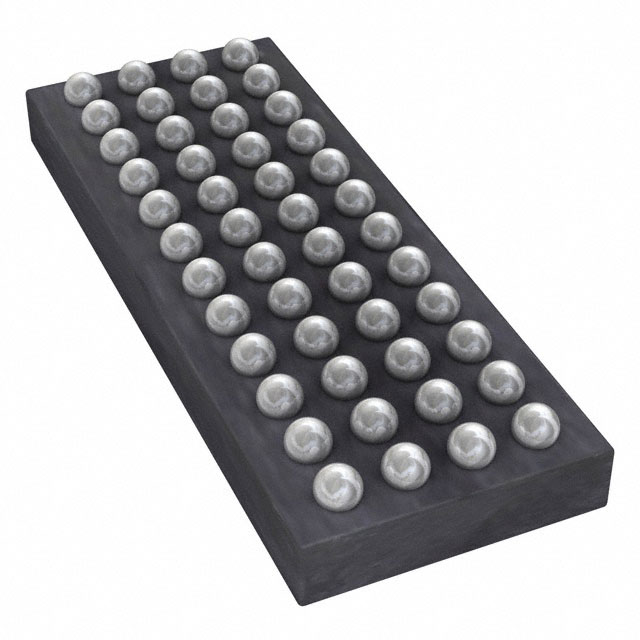

CBTV24DD12ETYIC SWITCH SPDT X 12 9OHM 48TFBGA |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 12 | 9Ohm | 400mOhm | 1.62V ~ 3.63V | - | - | 7.4GHz | - | - | - | - | -10°C ~ 85°C (TA) | - | - | Surface Mount | 48-TFBGA (3x8) |
|
PS320CUAEIC SWITCH SPST-NOX2 35OHM 8MSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 35Ohm | 300mOhm | - | ±2.7V ~ 8V | 150ns, 100ns | - | 8pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
Analog Switches, Multiplexers, Demultiplexers Electronic Components
Explore Analog Switches, Multiplexers, Demultiplexers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
