Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9204202XAIC SW SP4TX2 100OHM 16FLATPACK |
0 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
DG1411EEQ-T1-GE3IC SWITCH SPST-NC X 4 1.8OHM |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 1.8Ohm | 80mOhm | 4.5V ~ 24V | ±4.5V ~ 15V | 150ns, 120ns | 210MHz | -20pC | 11pF, 24pF | 500pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | - | - |
|
DG2788ADN-T1-E4IC SW DPDTX2 500MOHM 16MINIQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | DPDT | 2:1 | 2 | 500mOhm | 50mOhm | 1.8V ~ 5.5V | - | 50µs, 1µs | 338MHz | -245pC | - | 100nA | -61dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
ADG506AKPZ-REELIC MUX 16:1 300OHM 28PLCC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ADG506AKP-REELIC MUX 16:1 300OHM 28PLCC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ADG506AKPZ-RLIC MUX 16:1 300OHM 28PLCC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
.jpg)
|
ADG731BCP_REEL7IC MUX 32:1 5.5OHM 48LFCSP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 32:1 | 1 | 5.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | - | 18MHz | 1pC | 13pF, 260pF | 250pA | -72dB @ 1MHz | -40°C ~ 80°C (TA) | - | - | Surface Mount | 48-LFCSP (7x7) |
|

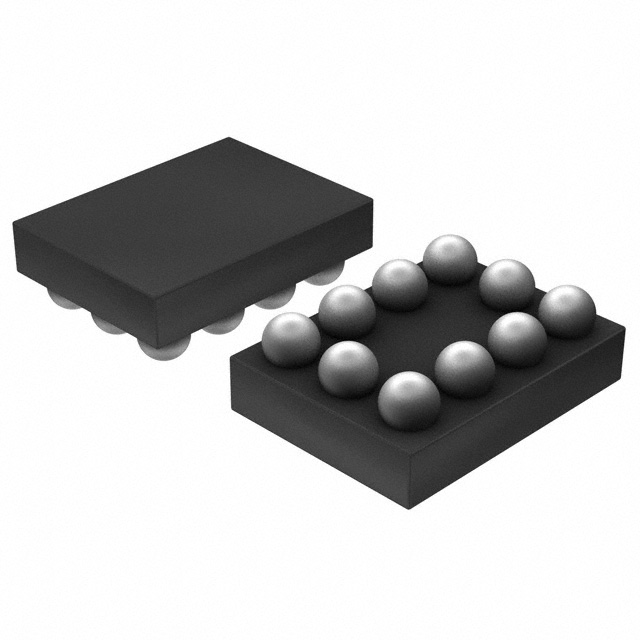

ADG787BCB-REELIC SWITCH SPDT X 2 3OHM 10WLCSP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
ADG802BRT-1REELIC SW SPST-NCX1 300MOHM SOT23-6 |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG802BRT-1REEL7IC SW SPST-NCX1 300MOHM SOT23-6 |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG1202BRJZ-R2IC SW SPST-NOX1 200OHM SOT23-6 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 200Ohm | - | - | ±5V ~ 16.5V | 170ns, 105ns | 660MHz | -0.8pC | 2.4pF, 2.8pF | 100pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG1202BRJZ-REEL7IC SW SPST-NOX1 200OHM SOT23-6 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 200Ohm | - | - | ±5V ~ 16.5V | 170ns, 105ns | 660MHz | -0.8pC | 2.4pF, 2.8pF | 100pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG426BRSZ-REEL7IC MUX 16:1 80OHM 28SSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 80Ohm | 4Ohm | 12V | ±15V | 160ns, 150ns | - | 8pC | 5pF, 50pF | 500pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
ADG774BRQ-500RL7IC SWITCH SPDT X 4 2.2OHM 16QSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 2.2Ohm (Typ) | 150mOhm | 3V ~ 5V | - | 15ns, 8ns | 240MHz | 10pC | 10pF, 20pF | 500pA | -75dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
ADG787-BCB-500RL7IC SWITCH SPDT X 2 3OHM 10WLCSP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
|
ADG787BCB-500RL7U1IC SWITCH SPDT X 2 3OHM 10WLCSP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
|
ADG508ATCHIPSIC MUX 8:1 300OHM DIE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | 8:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | Die |
|
|
ADG526ATCHIPSIC MUX 16:1 450OHM DIE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | 16:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
ADG528ATCHIPSIC MUX 8:1 450OHM DIE |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | 8:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
ADG802BRM-1IC SW SPST-NCX1 300MOHM 8MSOP |
0 |
|
- |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
Analog Switches, Multiplexers, Demultiplexers Electronic Components
Explore Analog Switches, Multiplexers, Demultiplexers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
