Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG509AAK/883BIC SWITCH SP4T X 2 400OHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 2 | 400Ohm | 24Ohm | - | ±4.5V ~ 18V | 1µs, 700ns | - | - | 5pF, 12pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
DG529AK/883BIC SWITCH SP4T X 2 400OHM 18CDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 400Ohm | 24Ohm | 5V ~ 30V | ±4.5V ~ 20V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
|
DG202AK/883BIC SW SPST-NOX4 175OHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 175Ohm | - | - | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
DG302AAK/883BIC SWITCH DPST-NOX2 50OHM 14CDIP |
0 |
|
Datasheet |
- | Tube | Active | DPST - NO | 2:1 | 2 | 50Ohm | - | - | ±5V ~ 18V | 300ns, 250ns | - | 12pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|
|
DG309AK/883BIC SW SPST-NCX4 100OHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | - | 5V ~ 30V | ±5V ~ 20V | 250ns, 150ns | - | -10pC | 11pF, 8pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|

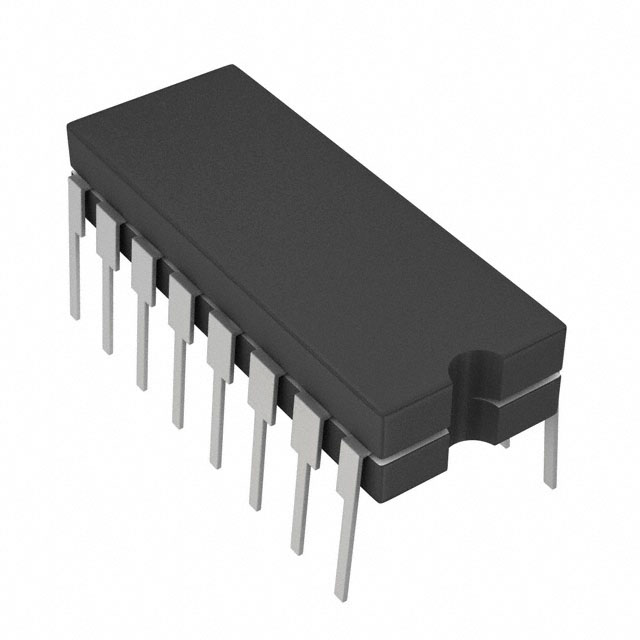

DG408AK/883BIC MUX 8:1 100OHM 16CERDIP |
0 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
DG419AK/883BIC SWITCH SPDT X 1 30OHM 8CERDIP |
0 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 1 | 30Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
DG442AK/883BIC SWITCH SPST-NOX4 85OHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
DG528AK/883BIC MUX 8:1 400OHM 18CDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 24Ohm | 5V ~ 30V | ±4.5V ~ 20V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
|
HI1-0201HS/883BIC SWITCH SPST-NCX4 50OHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | - | 12V ~ 20V | ±5V ~ 20V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
IH5049MJE/883BIC SWITCH SPST-NOX2 60OHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 60Ohm | 8Ohm | - | ±4.5V ~ 20V | 400ns, 200ns (Typ) | - | 10pC | - | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
IH5051MJE/883BIC SWITCH SPDT X 2 60OHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 2 | 60Ohm | 8Ohm | - | ±4.5V ~ 20V | 400ns, 200ns (Typ) | - | 10pC | - | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
MAX333MJP/883BIC SWITCH SPDT X 4 250OHM 20CDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 4 | 250Ohm | - | 10V ~ 30V | ±5V ~ 18V | 1µs, 500ns | - | - | 5pF | 5nA | -78dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 20-CDIP |
|
|
MAX358MJE/883BIC MUX 8:1 1.8KOHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 1.8kOhm | - | - | ±4.5V ~ 18V | 500ns, 500ns | - | - | 5pF, 25pF | 5µA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
MAX378MJE/883BIC MUX 8:1 3KOHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 3kOhm | - | - | ±4.5V ~ 18V | 750ns, 500ns | - | - | 5pF, 25pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
MAX379MJE/883BIC SWITCH SP4T X 2 3KOHM 16CDIP |
0 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 2 | 3kOhm | - | - | ±4.5V ~ 18V | 750ns, 500ns | - | - | 5pF, 12pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
74LVC1G53GM,125IC SWITCH SPDT X 1 10OHM 8XQFN |
0 |
|
Datasheet |
74LVC | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 10Ohm | - | 1.65V ~ 5.5V | - | 3.8ns, 3.8ns | 300MHz | 7.5pC | 6pF | 5µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
74LVC2G53GM,125IC SWITCH SPDT X 1 10OHM 8XQFN |
0 |
|
Datasheet |
74LVC | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 10Ohm | - | 1.65V ~ 5.5V | - | 3.8ns, 3.8ns | 300MHz | 7.5pC | 6pF | 5µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
MAX4783EUE+IC SWITCH SPDT X 3 1OHM 16TSSOP |
0 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 3 | 1Ohm | 300mOhm | 1.6V ~ 3.6V | - | 25ns, 15ns | - | -110pC | 38pF, 75pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
7705201EAIC SWITCH 16CDIP |
0 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 16-CDIP |
