Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG200AAA/883IC SW SPST-NCX2 70OHM TO100-10 |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 2 | 70Ohm | - | - | ±15V | 440ns, 340ns | - | -10pC | 9pF, 9pF | 2nA | -90dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-100-10 |
|
|
DG200BDJIC SWITCH SPST-NCX2 85OHM 14DIP |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 2 | 85Ohm | - | 13V ~ 36V | ±7V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 2nA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 14-PDIP |
|
DG201BDJIC SWITCH SPST-NCX4 85OHM 16DIP |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
DG201BDYIC SWITCH SPST-NCX4 85OHM 16SOIC |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG201BDY-T1IC SWITCH SPST-NCX4 85OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG201HSDYIC SWITCH SPST-NCX4 50OHM 16SOIC |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | 1.5Ohm | 13V ~ 36V | ±7V ~ 22V | 60ns, 50ns | - | -5pC | 5pF | 1nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG202BDYIC SWITCH SPST-NOX4 85OHM 16SOIC |
0 |
|
- |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG211BDJIC SWITCH SPST-NCX4 85OHM 16DIP |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
DG211BDYIC SWITCH SPST-NCX4 85OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG212BDYIC SWITCH SPST-NOX4 85OHM 16SOIC |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG212BDY-T1IC SWITCH SPST-NOX4 85OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 2Ohm | 4.5V ~ 25V | ±4.5V ~ 22V | 300ns, 200ns | - | 1pC | 5pF, 5pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG271BDYIC SWITCH SPST-NCX4 50OHM 16SOIC |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | - | - | ±15V | 65ns, 65ns | - | -5pC | 8pF, 8pF | 1nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG300AAA/883IC SW SPST-NOX2 50OHM TO100-10 |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-100-10 |
|
|
DG300AAK/883IC SW SPST-NOX2 50OHM TO100-10 |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-100-10 |
|
|
DG301AAA/883IC SWITCH SPDTX1 50OHM TO100-10 |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | 2:1 | 1 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-100-10 |
|

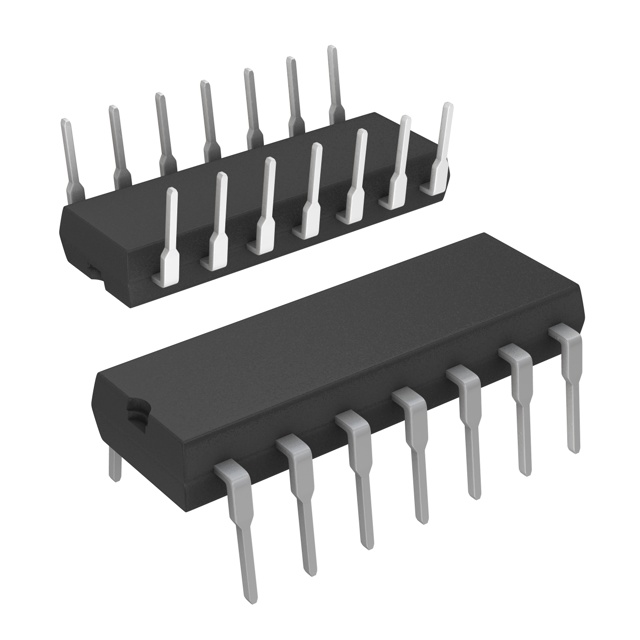

DG301AAK/883IC SWITCH SPDTX1 50OHM 14CERDIP |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | 2:1 | 1 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
DG302AAK/883IC SW DPST-NOX2 50OHM 14CERDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | DPST - NO | 2:1 | 2 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
DG303BDYIC SW DPST-NO/NCX2 50OHM 14SOIC |
0 |
|
- |
- | Tube | Obsolete | DPST - NO/NC | 2:1 | 2 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
DG304AAK/883IC SW SPST-NOX2 50OHM 14CERDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 50Ohm | - | - | ±15V | 250ns, 150ns | - | 30pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
DG307AAK/883IC SWITCH SPDTX2 50OHM 14CERDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 2 | 50Ohm | - | - | ±15V | 250ns, 150ns | - | 30pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
