IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSM35GD120DN2E3224BOSA1IGBT MOD 1200V 50A 280W |
7,659 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 50 A | 280 W | 3.2V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
MG1250H-XN2MMIGBT MOD 1200V 75A 260W |
2,077 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 260 W | 1.7V @ 15V, 50A (Typ) | 1 mA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
VS-GT200TP065UMODULES IGBT - IAP IGBT |
9,407 |
|
- |
FRED Pt® | Module | Bulk | Active | Trench Field Stop | Half Bridge | 650 V | 177 A | 429 W | 2.12V @ 15V, 200A | 200 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
IRGTI090U06IGBT MOD 600V 90A 298W INT-A-PAK |
6,805 |
|
- |
- | INT-A-PAK (3 + 4) | - | Obsolete | - | Half Bridge | 600 V | 90 A | 298 W | 3V @ 15V, 90A | 1 mA | 5.8 nF @ 30 V | Standard | No | - | Chassis Mount | INT-A-PAK |
|
|
MG12150S-DEN2MMIGBT MODULE 1200V 200A 625W S3 |
3,805 |
|
- |
- | S-3 Module | Bulk | Obsolete | Trench Field Stop | 2 Independent | 1200 V | 200 A | 625 W | 1.7V @ 15V, 150A (Typ) | 1 mA | 10.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | S3 |
|
|
MIXA61WB1200TEHIGBT MODULE - CBI E3-PACK-PFP |
4,609 |
|
- |
- | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MG06200S-BN4MMIGBT MODULE 600V 200A 600W S3 |
9,631 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 600 V | 300 A | 600 W | 1.45V @ 15V, 200A (Typ) | 1 mA | 13 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
|
CM75BU-12HIGBT MODULE 600V 75A 310W |
8,331 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Full Bridge Inverter | 600 V | 75 A | 310 W | 3V @ 15V, 75A | 1 mA | 6.6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MIXA81H1200EHIGBT MODULE 1200V 120A 390W E3 |
2,759 |
|
- |
- | E3 | Box | Active | PT | Full Bridge Inverter | 1200 V | 120 A | 390 W | 2.2V @ 15V, 77A | 200 µA | - | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
APT50GF120JRDQ3IGBT MOD 1200V 120A 521W ISOTOP |
2,806 |
|
- |
- | ISOTOP | Tube | Active | NPT | Single | 1200 V | 120 A | 521 W | 3V @ 15V, 75A | 750 µA | 5.32 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
FF225R12ME4B11BPSA2MEDIUM POWER ECONO AG-ECONOD-411 |
3,750 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 320 A | 1050 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
MIXG70W1200TEDIGBT MODULE - SIXPACK E2-PACK-PF |
8,334 |
|
- |
- | E2 | Box | Obsolete | PT | Single | - | - | - | - | - | - | Standard | No | - | Chassis Mount | E2 |
|

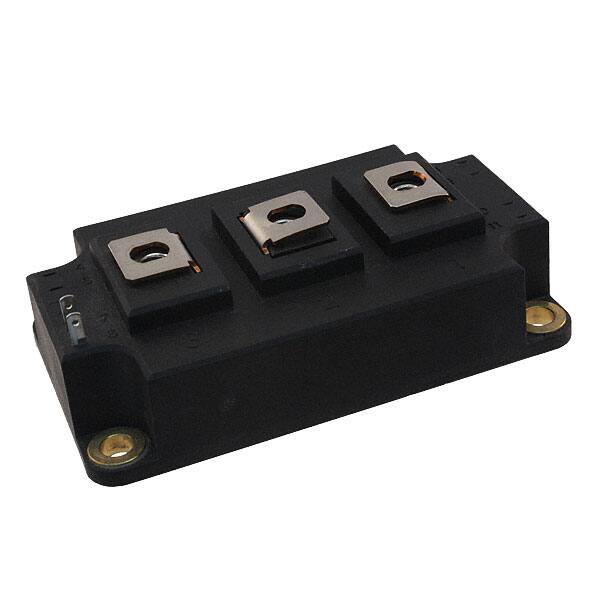

APTGF330DA60D3GIGBT MODULE 600V 460A 1400W D3 |
4,419 |
|
- |
- | D-3 Module | Bulk | Obsolete | NPT | Single | 600 V | 460 A | 1400 W | 2.5V @ 15V, 400A | 750 µA | 18 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT50DA120TGIGBT MODULE 1200V 75A 277W SP4 |
3,094 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT50SK120TGIGBT MODULE 1200V 75A 277W SP4 |
8,212 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Single | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

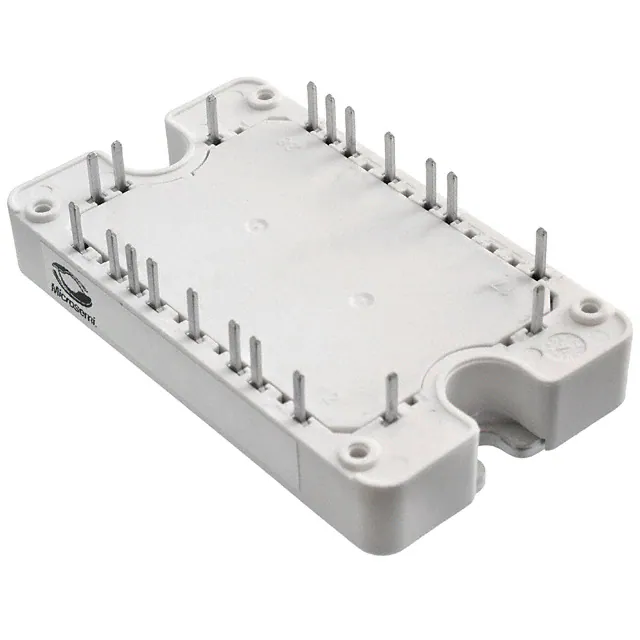

APTGT50H60RT3GIGBT MODULE 600V 80A 176W SP3 |
5,780 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Single Phase Bridge Rectifier | Yes | - | Chassis Mount | SP3 |
|
|
APTGLQ40HR120CT3GIGBT MODULE 1200V 75A 250W SP3 |
2,264 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | - | 1200 V | 75 A | 250 W | 2.4V @ 15V, 40A | 100 µA | 2.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGLQ75H65T1GIGBT MODULE 650V 150A 250W SP1 |
7,979 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 150 A | 250 W | 2.3V @ 15V, 75A | 100 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP1 |
|
|
CM100DU-24HIGBT MOD 1200V 100A 600W |
7,104 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 100 A | 600 W | 3.7V @ 15V, 100A | 1 mA | 15 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FMG2G300LS60EIGBT MODULE 600V 300A 892W 7PMHA |
9,583 |
|
- |
- | 7PM-HA | - | Obsolete | - | Half Bridge | 600 V | 300 A | 892 W | 1.8V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-HA |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
