IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT150GT120JRIGBT MOD 1200V 170A 830W ISOTOP |
7,695 |
|
- |
Thunderbolt IGBT® | ISOTOP | Tube | Active | NPT | Single | 1200 V | 170 A | 830 W | 3.7V @ 15V, 150A | 150 µA | 9.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
MIXA41W1200EDNPT IGBT MODULE |
9,019 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT50H120TGIGBT MODULE 1200V 75A 277W SP4 |
4,014 |
|
- |
- | SP4 | Bulk | Obsolete | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
NXH40T120L3Q1PTGPIM Q1 3 CHANNEL T-TYPE NPC 40A |
7,012 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 42 A | 146 W | 2.2V @ 15V, 40A | 400 µA | 7.753 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 44-PIM (71x37.4) |
|
VS-ETF150Y65NIGBT MOD 650V 201A 600W |
5,017 |
|
- |
FRED Pt® | Module | Box | Obsolete | NPT | Half Bridge Inverter | 650 V | 201 A | 600 W | 2.17V @ 15V, 150A | - | - | Standard | Yes | 175°C (TJ) | - | Module |
|
A2C25S12M3IGBT MOD 1200V 25A 197W ACEPACK2 |
2 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
|
APTGT75A120TGIGBT MODULE 1200V 100A 350W SP4 |
2,050 |
|
- |
- | SP4 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT100A60T1GIGBT MODULE 600V 150A 340W SP1 |
9,200 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
FS75R12N2T4B85BPSA1LOW POWER ECONO |
5,849 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IRG5U50HH12EIGBT MOD 1200V 85A POWIR ECO 2 |
7,646 |
|
- |
- | POWIR ECO 2™ Module | Box | Obsolete | - | Full Bridge Inverter | 1200 V | 85 A | 390 W | 3.5V @ 15V, 50A | 1 mA | 6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR ECO 2™ |
|
|
FP25R12N2T7BPSA1LOW POWER ECONO |
2,686 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP75R07N2E4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
4,489 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | - | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
CM75DU-24FIGBT MOD 1200V 75A 450W |
4,390 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 1200 V | 75 A | 450 W | 2.4V @ 15V, 75A | 1 mA | 29 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGT100DA120T1GIGBT MODULE 1200V 140A 480W SP1 |
6,485 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
MG06100S-BN4MMIGBT MODULE 600V 100A 330W S3 |
9,253 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 600 V | 125 A | 330 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|

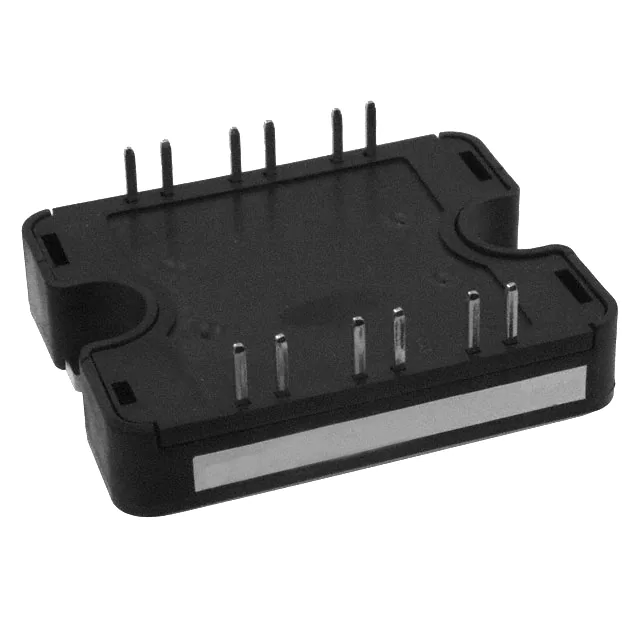

APTGT50SK170T1GIGBT MODULE 1700V 75A 312W SP1 |
8,812 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
MUBW10-12A7IGBT MODULE 1200V 20A 105W E2 |
6,302 |
|
- |
- | E2 | Bulk | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 20 A | 105 W | 2.7V @ 15V, 10A | 600 µA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MWI15-12A7IGBT MODULE 1200V 30A 140W E2 |
3,072 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 30 A | 140 W | 2.6V @ 15V, 15A | 900 µA | 1 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MWI50-06A7IGBT MODULE 600V 72A 225W E2 |
2,456 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 72 A | 225 W | 2.4V @ 15V, 50A | 600 µA | 2.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MG12100S-BN2MMIGBT MODULE 1200V 140A 450W S3 |
9,065 |
|
- |
- | S-3 Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 140 A | 450 W | 1.7V @ 15V, 100A (Typ) | 1 mA | 7.1 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | S3 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
