IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM100DU-12HIGBT MOD 600V 100A 400W |
3,955 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 3V @ 15V, 100A | 1 mA | 8.8 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MII145-12A3IGBT MODULE 1200V 160A 700W Y4M5 |
6,582 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Half Bridge | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MUBW15-12A7IGBT MODULE 1200V 35A 180W E2 |
3,044 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 35 A | 180 W | 2.6V @ 15V, 15A | 900 µA | 1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
APTGT400SK60D3GIGBT MODULE 600V 500A 1250W D3 |
9,474 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 500 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
|
APTGT50DDA60T3GIGBT MODULE 600V 80A 176W SP3 |
4,238 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
MIF150R12C2TL-BPGBT MODULES |
6,769 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Half Bridge Inverter | 1200 V | 150 A | 833 W | 1.85V @ 15V, 150A | 1 mA | 11000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
APTGLQ30H65T3GIGBT MODULE 650V 40A 95W |
3,130 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 40 A | 95 W | 2.3V @ 15V, 30A | 50 µA | 1.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
FMG2G300US60EIGBT MODULE 600V 300A 892W 7PMHA |
9,344 |
|
- |
- | 7PM-HA | Box | Obsolete | - | Half Bridge | 600 V | 300 A | 892 W | 2.7V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-HA |
|
APTGT50A120T1GIGBT MODULE 1200V 75A 277W SP1 |
3,331 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
MIXA60W1200TEDIGBT MODULE 1200V 85A 290W E2 |
2,626 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 85 A | 290 W | 2.1V @ 15V, 55A | 500 µA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MIXG240RF1200P-PCIGBT MODULE MIXG240RF1200PTED-PC |
9,134 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

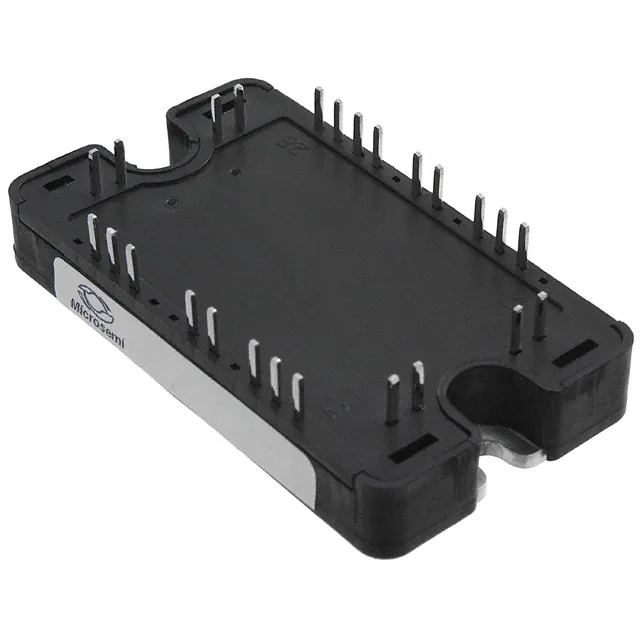

APTGF150A120T3AGIGBT MODULE 1200V 210A 1041W SP3 |
3,794 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Half Bridge | 1200 V | 210 A | 1041 W | 3.7V @ 15V, 150A | 250 µA | 9.3 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
FP50R12N2T4B86BPSA1LOW POWER ECONO |
5,570 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIF200R12C2TF-BPGBT MODULES |
6,469 |
|
- |
- | Module | Tape & Reel (TR) | Active | Trench | Half Bridge Inverter | 1200 V | 200 A | 1250 W | 2.4V @ 15V, 200A | 1 mA | 12800 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
APTGT50H60T1GIGBT MODULE 600V 80A 176W SP1 |
5,633 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGLQ50DDA65T3GIGBT MODULE 650V 70A 175W |
6,757 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 650 V | 70 A | 175 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
APTGLQ50VDA65T3GIGBT MODULE 650V 70A 175W SP3F |
6,890 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 650 V | 70 A | 175 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
|
APTGT200SK120D3GIGBT MODULE 1200V 300A 1050W D3 |
4,177 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 300 A | 1050 W | 2.1V @ 15V, 200A | 6 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
FP75R07N2E4B16BPSA1LOW POWER ECONO |
6,215 |
|
- |
EconoPIM™2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | - | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
APTGT30A170T1GIGBT MODULE 1700V 45A 210W SP1 |
8,545 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
