IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

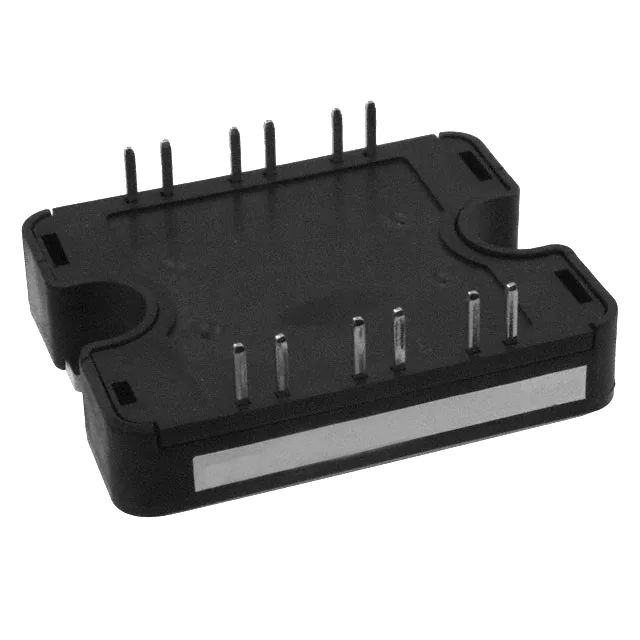

APTGT100DA60T1GIGBT MODULE 600V 150A 340W SP1 |
4,003 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
A2C50S65M2-FIGBT MOD 650V 50A 208W ACEPACK2 |
6,074 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
MUBW30-06A7IGBT MODULE 600V 50A 180W E2 |
8,359 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 50 A | 180 W | 2.3V @ 15V, 30A | 600 µA | 1.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MIXA30W1200TEDIGBT MODULE 1200V 43A 150W E2 |
5,576 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 43 A | 150 W | 2.1V @ 15V, 25A | 2.1 mA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
APT100GT120JRIGBT MOD 1200V 123A 570W ISOTOP |
8,804 |
|
- |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 123 A | 570 W | 3.7V @ 15V, 100A | 100 µA | 6.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
NXH80T120L2Q0P2GIC MODULE PIM 1200V 80A |
9,293 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1200 V | 67 A | 158 W | 2.85V @ 15V, 80A | 300 µA | 19.4 nF @ 20 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|

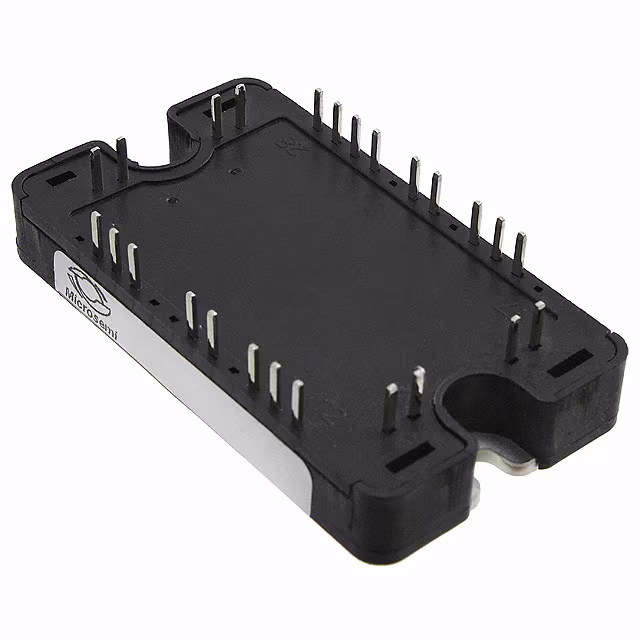

APTGF90H60T3GIGBT MODULE 600V 120A 416W SP3 |
2,054 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 120 A | 416 W | 2.45V @ 15V, 100A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
FS75R07N2E4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
4,392 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 75 A | 250 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
MUBW35-06A6IGBT MODULE 600V 38A 104W E1 |
5,798 |
|
- |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 38 A | 104 W | 2.5V @ 15V, 30A | 1 mA | 1.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
APTGT75DH120TGIGBT MODULE 1200V 110A 357W SP4 |
5,813 |
|
- |
- | SP4 | Bulk | Obsolete | Trench Field Stop | Asymmetrical Bridge | 1200 V | 110 A | 357 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
NXH80T120L3Q0S3TGPIM GENERATION3 Q0PACK 1200V, 80 |
9,671 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1200 V | 75 A | 188 W | 2.4V @ 15V, 80A | 300 µA | 18150 pF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
|
CM75E3U-24HIGBT MOD 1200V 75A 600W |
4,916 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 75 A | 600 W | 3.7V @ 15V, 75A | 1 mA | 11 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MUBW35-12E7IGBT MODULE 1200V 52A 225W E2 |
9,569 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 52 A | 225 W | 2.8V @ 15V, 35A | 400 µA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
FP25R12N2T7B16BPSA1LOW POWER ECONO |
7,096 |
|
- |
TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | - | - | - | - | - | - | - | Standard | No | - | Chassis Mount | AG-EASY2B |
|
|
IRG7T100HF12AIGBT MOD 1200V 200A POWIR 34 |
4,776 |
|
- |
- | POWIR® 34 Module | Box | Obsolete | - | Half Bridge | 1200 V | 200 A | 575 W | 2.2V @ 15V, 100A | 1 mA | 13.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 34 |
|
VS-GT140DA60UIGBT MOD 600V 200A 652W SOT227 |
8,591 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | Trench | Single | 600 V | 200 A | 652 W | 2V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
|
|
FP35R12W2T7PB11BPSA1EASY STANDARD |
2,627 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FMG2G150US60IGBT MODULE 600V 150A 595W 7PMHA |
9,361 |
|
- |
- | 7PM-HA | Box | Obsolete | - | Half Bridge | 600 V | 150 A | 595 W | 2.7V @ 15V, 150A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-HA |
|
|
FS75R07N2E4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
4,928 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 75 A | 250 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FS35R12KE3GBPSA1LOW POWER ECONO AG-ECONO2B-311 |
2,556 |
|
- |
- | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 55 A | 200 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
