IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

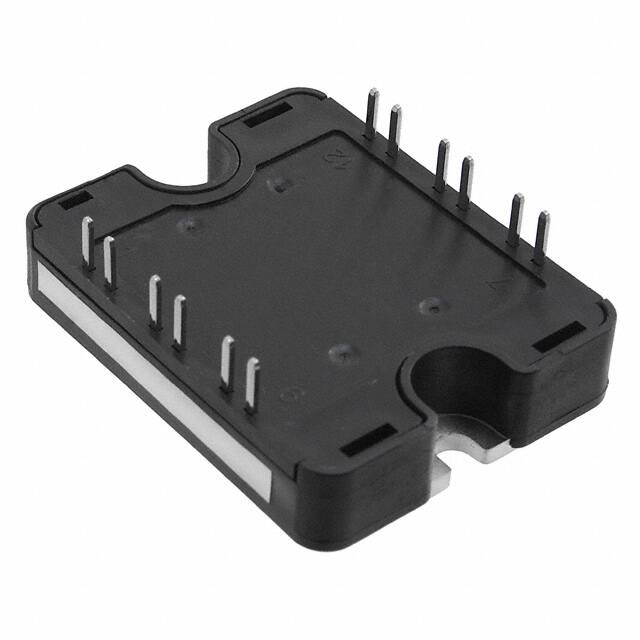

APTGT75DA60T1GIGBT MODULE 600V 100A 250W SP1 |
7,765 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
MDI145-12A3IGBT MODULE 1200V 160A 700W Y4M5 |
9,490 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MID145-12A3IGBT MODULE 1200V 160A 700W Y4M5 |
6,154 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MWI50-06A7TIGBT MODULE 600V 72A 225W E2 |
8,303 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 72 A | 225 W | 2.4V @ 15V, 50A | 600 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MIF100R12C1TF-BPGBT MODULES |
5,052 |
|
- |
- | Module | Tape & Reel (TR) | Active | Trench | Half Bridge Inverter | 1200 V | 100 A | 789 W | 2V @ 15V, 100A | 1 mA | 6450 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | C1 |
|
MG1275S-BA1MMIGBT MODULE 1200V 105A 630W S3 |
6,354 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 105 A | 630 W | 1.8V @ 15V, 75A (Typ) | 500 µA | 5.52 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
|
MKI75-06A7TIGBT MODULE 600V 90A 280W E2 |
6,614 |
|
- |
- | E2 | Tube | Obsolete | NPT | Full Bridge Inverter | 600 V | 90 A | 280 W | 2.6V @ 15V, 75A | 1.3 mA | 3.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MUBW30-12A6IGBT MODULE 1200V 31A 104W E1 |
4,006 |
|
- |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 31 A | 104 W | 2.6V @ 15V, 15A | 1 mA | 1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
APTGT100A60TGIGBT MODULE 600V 150A 340W SP4 |
6,189 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
MIXA10WB1200TEDIGBT MODULE 1200V 17A 60W E2 |
8,928 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 17 A | 60 W | 2.1V @ 15V, 9A | 700 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
APT50GF120JRDIGBT NPT COMBI 1200V 50A ISOTOP |
8,072 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1200 V | 75 A | 460 W | 3.4V @ 15V, 50A | 750 µA | 3.45 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 (ISOTOP®) |
|
|
IRG5K100HF12AIGBT MOD 1200V 200A POWIR 34 |
3,576 |
|
- |
- | POWIR® 34 Module | Box | Obsolete | - | Half Bridge | 1200 V | 200 A | 620 W | 2.6V @ 15V, 100A | 1 mA | 12.9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 34 |
|
|
APTGF50DH60TGIGBT MODULE 600V 65A 250W SP4 |
7,665 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | NPT | Asymmetrical Bridge | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT75DH60TGIGBT MODULE 600V 100A 250W SP4 |
9,598 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Asymmetrical Bridge | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
FS75R12W2T4PBPSA1LOW POWER EASY AG-EASY2B-411 |
6,997 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FS75R12W2T4PB11BPSA1LOW POWER EASY |
4,189 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MIXG240RF1200PTEDIGBT MODULE - BRAKE E2-PACK-PFP |
5,956 |
|
- |
- | E2 | Box | Active | PT | Single Chopper | 1200 V | 335 A | 1250 W | 2V @ 15V, 200A | 200 µA | - | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | E2 |
|
|
DDB6U134N16RRB38BPSA1LOW POWER ECONO |
7,211 |
|
- |
- | Module | Tray | Active | - | Single Chopper | 1200 V | 70 A | 500 W | 2.75V @ 15V, 70A | 500 µA | 5.1 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
APTGT200DA60TGIGBT MODULE 600V 290A 625W SP4 |
8,189 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Single | 600 V | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
PRHMB75W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
9,314 |
|
- |
- | Module | Bulk | Obsolete | - | Single | 1200 V | 75 A | 290 W | 2V @ 15V, 75A | 1 mA | 8000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
