IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMG2G150US60EIGBT MODULE 600V 150A 500W 7PMGA |
2,231 |
|
- |
- | 7PM-GA | Bulk | Obsolete | - | Half Bridge | 600 V | 150 A | 500 W | 2.8V @ 15V, 150A | 250 µA | 12.84 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|
MWI30-06A7TIGBT MODULE 600V 45A 140W E2 |
4,864 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 45 A | 140 W | 2.4V @ 15V, 30A | 600 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
APTGF180SK60TGIGBT MODULE 600V 220A 833W SP4 |
7,627 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Single | 600 V | 220 A | 833 W | 2.5V @ 15V, 180A | 300 µA | 8.6 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
IXBN75N170AIGBT MOD 1700V 75A 625W SOT227B |
5,546 |
|
- |
BIMOSFET™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1700 V | 75 A | 625 W | 6V @ 15V, 42A | 50 µA | 7.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

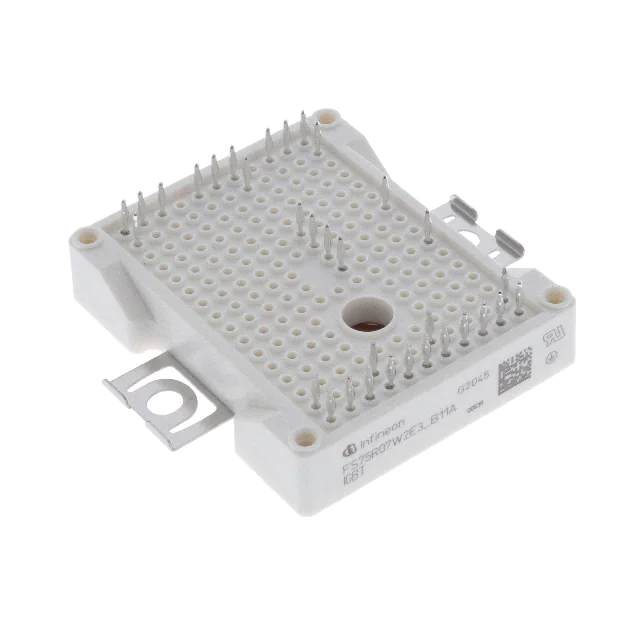

FS75R07W2E3B11ABOMA1IGBT MODULES |
2,847 |
|
- |
EasyPACK™ | Module | Tray | Last Time Buy | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | 275 W | 1.9V @ 15V, 75A | 50 µA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
|
VS-50MT060TFTMODULES IGBT - MTP SWITCH |
3,599 |
|
- |
FRED Pt® | 20-MTP Module | Bulk | Active | Trench Field Stop | Full Bridge | 600 V | 55 A | 144 W | 2.1V @ 15V, 50A | 40 µA | 3000 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | 20-MTP |
|
|
MIF150R12C1TL-BPGBT MODULES |
7,455 |
|
- |
- | Module | Tape & Reel (TR) | Active | Trench | Half Bridge Inverter | 1200 V | 150 A | 968 W | 2.2V @ 15V, 150A | 1 mA | 9800 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | C1 |
|
|
APTGF25X120T3GIGBT MODULE 1200V 40A 208W SP3 |
8,479 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
MII75-12A3IGBT MODULE 1200V 90A 370W Y4M5 |
2,030 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Half Bridge | 1200 V | 90 A | 370 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
VS-GB75SA120UPIGBT MODULE 1200V 658W SOT227 |
6,714 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | NPT | Single | 1200 V | - | 658 W | 3.8V @ 15V, 75A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APTCV60HM70BT3GIGBT MODULE 600V 50A 250W SP3 |
9,480 |
|
- |
- | SP3 | Tray | Obsolete | Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT50DH60TGIGBT MODULE 600V 80A 176W SP4 |
9,260 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | Trench Field Stop | Asymmetrical Bridge | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
APT75GT120JRDQ3IGBT MOD 1200V 97A 480W ISOTOP |
7,858 |
|
- |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 97 A | 480 W | 3.7V @ 15V, 75A | 200 µA | 5.1 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
FP50R12W2T7PBPSA1LOW POWER EASY |
9,513 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.6V @ 15V, 35A | 5 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
MUBW20-06A7IGBT MODULE 600V 35A 125W E2 |
5,990 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 35 A | 125 W | 2.3V @ 15V, 20A | 600 µA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
IXGN400N60A3IGBT MOD 600V 400A 830W SOT227B |
7,412 |
|
- |
GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 400 A | 830 W | 1.25V @ 15V, 100A | 250 µA | 32 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
APT200GT60JRIGBT MOD 600V 195A 500W SOT227 |
9,091 |
|
- |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tray | Obsolete | NPT | Single | 600 V | 195 A | 500 W | 2.5V @ 15V, 200A | 25 µA | 8.65 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
MKI75-06A7IGBT MODULE 600V 90A 280W E2 |
5,218 |
|
- |
- | E2 | Box | Obsolete | NPT | Full Bridge Inverter | 600 V | 90 A | 280 W | 2.6V @ 15V, 75A | 1.3 mA | 3.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
VS-GT100NA120UXIGBT MOD 1200V 134A 463W SOT227 |
4,820 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | Trench | Single | 1200 V | 134 A | 463 W | 2.85V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
FMG2G75US120IGBT MODULE 1200V 75A 445W 7PMGA |
6,445 |
|
- |
- | 7PM-GA | - | Obsolete | - | Half Bridge | 1200 V | 75 A | 445 W | 3V @ 15V, 75A | 3 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
