IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT100GT120JU3IGBT MOD 1200V 140A 480W SOT227 |
4,353 |
|
- |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
FMG2G50US120IGBT MODULE 1200V 50A 320W 7PMGA |
6,779 |
|
- |
- | 7PM-GA | - | Obsolete | - | Half Bridge | 1200 V | 50 A | 320 W | 3V @ 15V, 50A | 3 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|
|
APT80GP60JDQ3IGBT 600V 151A 462W SOT227 |
2,838 |
|
- |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 600 V | 151 A | 462 W | 2.7V @ 15V, 80A | 1.25 mA | 9.84 nF @ 25 V | Standard | No | - | Chassis Mount | ISOTOP® |
|
VKI50-12P1IGBT MOD 1200V 49A 208W ECO-PAC2 |
7,855 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Full Bridge Inverter | 1200 V | 49 A | 208 W | 3.7V @ 15V, 50A | 1.1 mA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | ECO-PAC2 |
|

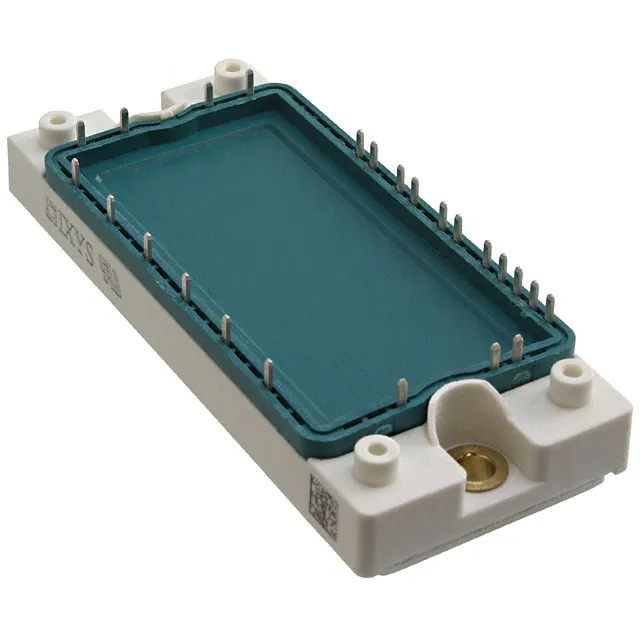

MUBW10-06A7IGBT MODULE 600V 20A 85W E2 |
4,759 |
|
- |
- | E2 | Bulk | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 20 A | 85 W | 2.3V @ 15V, 10A | 600 µA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
MG1250S-BA1MMIGBT MODULE 1200V 80A 500W S3 |
6,233 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 80 A | 500 W | 1.8V @ 15V, 50A (Typ) | 500 µA | 4.29 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
|
MUBW30-12A6KIGBT MODULE 1200V 30A 130W E1 |
6,889 |
|
- |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 1200 V | 30 A | 130 W | 3.8V @ 15V, 30A | 1 mA | 1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
MUBW25-06A6IGBT MODULE 600V 27.5A 77W E1 |
5,745 |
|
- |
- | E1 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 27.5 A | 77 W | 2.5V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | 150°C (TJ) | Chassis Mount | E1 |
|
|
MKI50-06A7IGBT MODULE 600V 72A 225W E2 |
6,058 |
|
- |
- | E2 | Box | Obsolete | NPT | Full Bridge Inverter | 600 V | 72 A | 225 W | 2.4V @ 15V, 50A | 600 µA | 2.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MWI25-12E7IGBT MODULE 1200V 52A 225W E2 |
3,058 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 52 A | 225 W | 2.4V @ 15V, 25A | 400 µA | 2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
APTGF50X60T3GIGBT MODULE 600V 65A 250W SP3 |
3,113 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
MDI100-12A3IGBT MODULE 1200V 135A 560W Y4M5 |
4,393 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 135 A | 560 W | 2.7V @ 15V, 75A | 5 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MID100-12A3IGBT MODULE 1200V 135A 560W Y4M5 |
2,628 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 135 A | 560 W | 2.7V @ 15V, 75A | 5 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
MWI30-06A7IGBT MODULE 600V 45A 140W E2 |
5,960 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 45 A | 140 W | 2.4V @ 15V, 30A | 600 µA | 1.6 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
FP35R12W2T7PBPSA1LOW POWER EASY |
3,918 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
MDI75-12A3IGBT MODULE 1200V 90A 370W Y4M5 |
7,710 |
|
- |
- | Y4-M5 | Box | Obsolete | NPT | Single | 1200 V | 90 A | 370 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Y4-M5 |
|
|
APTGF50DA120TGIGBT MODULE 1200V 75A 312W SP4 |
8,796 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | NPT | Single | 1200 V | 75 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGF50SK120TGIGBT MODULE 1200V 75A 312W SP4 |
2,850 |
|
- |
- | SP4 | Bulk | Discontinued at Digi-Key | NPT | Single | 1200 V | 75 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGF100DA120TGIGBT MODULE 1200V 135A 568W SP4 |
9,863 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Single | 1200 V | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
MIF100R12C1PF-BPInterface |
6,764 |
|
- |
- | Module | Bulk | Active | NPT | 2 Independent | 1200 V | 100 A | 675 mW | 3V @ 15V, 100A | 1 mA | 6700 pF @ 25 V | - | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
