IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS50R07N2E4BOSA1IGBT MODULE 650V 70A 190W |
280 |
|
- |
EconoPACK™ 2 | Module | Tray | Obsolete | - | Full Bridge Inverter | 650 V | 70 A | 190 W | 1.95V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS15R06VL4B2BOMA1MOD IGBT LOW PWR EASY750-1 |
6,104 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HGT1N30N60A4DIGBT, 96A, 600V, N-CHANNEL |
677 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 96 A | 255 W | 2.7V @ 15V, 30A | 250 µA | - | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
FS10R12VT3BOMA1IGBT MODULE 1200V 16A 64W |
8,324 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 16 A | 64 W | 2.45V @ 15V, 10A | 1 mA | 700 pF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FP7G50US60IGBT |
2,076 |
|
- |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 2.92 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
|
FDDF80R12W1H3B52BOMA1IGBT MODULE |
672 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

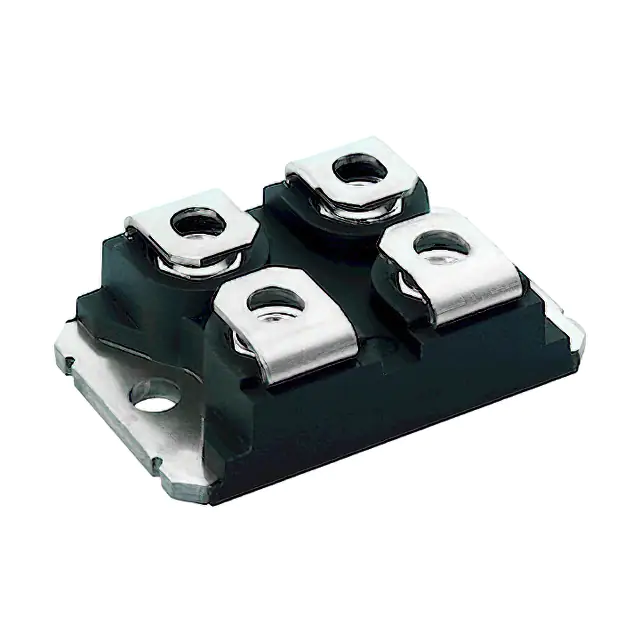

VS-GT55NA120UXSOT-227 - HIGH SIDE CHOPPER IGBT |
129 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single Chopper | 1200 V | 68 A | 291 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
FP7G75US60IGBT |
2,882 |
|
- |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 4.515 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
|
FB10R06KL4BOMA1MOD IGBT LOW PWR EASY1-1 |
5,312 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VS-GT55LA120UXSOT-227 - LOW SIDE CHOPPER IGBT |
212 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single Chopper | 1200 V | 68 A | 291 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
.JPG)
|
FP7G100US60IGBT, 100A, 600V, N-CHANNEL |
3,236 |
|
- |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 6.085 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
FP15R12W1T7PB3BPSA1LOW POWER EASY |
7,588 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DF80R12W2H3B11BOMA1IGBT MODULE |
285 |
|
- |
- | Module | Bulk | Active | - | Dual Boost Chopper | 1200 V | 50 A | 190 W | 1.7V @ 15V, 20A | 1 mA | 2.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
DF100R07W1H5FPB53BPSA1IGBT MODULE |
233 |
|
- |
EasyPACK™ | Module | Bulk | Active | - | Half Bridge Inverter | 650 V | 40 A | - | 1.55V @ 15V, 25A | 40 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
FS35R12YT3BOMA1IGBT MODULE |
232 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 40 A | 225 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | - |
|
|
NXH80T120L3Q0P3GPIM GENERATION3 Q0PACK 1200V, 80 |
4,006 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1200 V | 75 A | 188 W | 2.4V @ 15V, 80A | 300 µA | 18150 pF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
APT45GP120JDQ2IGBT MOD 1200V 75A 329W ISOTOP |
114 |
|
- |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 75 A | 329 W | 3.9V @ 15V, 45A | 750 µA | 4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
FB15R06KL4B1BOMA1MOD IGBT LOW PWR EASY2-1 |
3,263 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP15R06KL4BOMA1MOD IGBT LOW PWR EASY2-1 |
2,301 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP50R06W2E3B11BOMA1IGBT MODULE 600V 65A 175W |
7,713 |
|
- |
EasyPIM™ 2B | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 65 A | 175 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
