IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

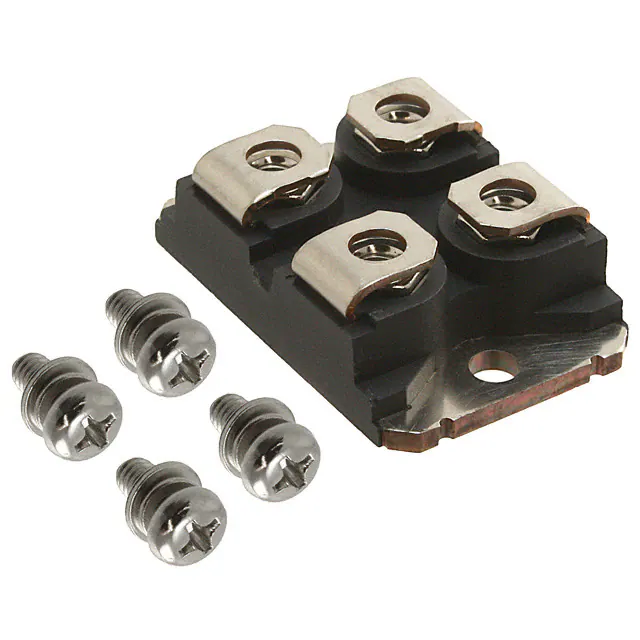

IXGN200N60B3IGBT MOD 600V 300A 830W SOT227B |
702 |
|
- |
GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 300 A | 830 W | 1.5V @ 15V, 100A | 50 µA | 26 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
VS-40MT120PHAPBFMTP - HALF BRIDGE IGBT |
105 |
|
- |
- | 12-MTP Module | Tube | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 305 W | 2.65V @ 15V, 40A | 50 µA | 3.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 12-MTP |
|
FS75R12W2T7B11BOMA1IGBT MOD 1200V 75A |
30 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 65 A | - | 1.55V @ 15V, 75A (Typ) | 13 µA | 15.1 nF @ 25 V | Standard | No | -40°C ~ 175°C | Chassis Mount | Module |
|
FP50R12KT4GBOSA1IGBT MOD 1200V 50A 280W |
11 |
|
- |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP100R06KE3BOSA1IGBT MOD 600V 100A 335W |
54 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 100 A | 335 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
APTGT200A120GIGBT MODULE 1200V 280A 890W SP6 |
707 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
APTGT600A60GIGBT MODULE 600V 700A 2300W SP6 |
31 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 700 A | 2300 W | 1.8V @ 15V, 600A | 750 µA | 49 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
FF1200R17IP5PBPSA1IGBT |
9,378 |
|
- |
PrimePack™2 | Module | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 1200 A | - | 2.3V @ 15V, 1200A | 10 mA | 68 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FZ1500R33HE3BPSA1IGBT MODULE 3300V 1500A |
2 |
|
- |
IHM-B | Module | Bulk | Active | Trench Field Stop | Full Bridge | 3300 V | 1500 A | 17000 W | 3.1V @ 15V, 1500A | 5 mA | 280 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
IM241L6T2BAKMA1CIPOS MICRO |
423 |
|
- |
IM241, CIPOS™ | - | Tube | Active | - | Three Phase Inverter | 600 V | - | 15 W | 1.62V @ 15V, 2A | - | - | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole | 23-DIP |
|
|
IM241S6S1JAUMA1CIPOS MICRO |
483 |
|
- |
IM241, CIPOS™ | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Active | - | Three Phase Inverter | 600 V | - | 9 W | 1.78V @ 15V, 500mA | - | - | Standard | Yes | -40°C ~ 150°C (TJ) | Surface Mount | 23-SOP |
|
IXGN72N60C3H1IGBT MOD 600V 78A 360W SOT227B |
300 |
|
- |
GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 78 A | 360 W | 2.5V @ 15V, 50A | 250 µA | 4.78 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXYN100N65A3IGBT MOD 650V 170A 600W SOT227B |
288 |
|
- |
XPT™, GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 650 V | 170 A | 600 W | 1.8V @ 15V, 70A | 25 µA | - | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
IXYN110N120C4IGBT 1200V 110A GEN4 XPT SOT227B |
296 |
|
- |
XPT™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1200 V | 220 A | 830 W | 2.4V @ 15V, 110A | 50 µA | 5.42 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227 |
|
FS25R12W1T7B11BOMA1IGBT MODULE LOW POWER EASY |
2 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | 1.6V @ 15V, 25A | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
FP10R12W1T4PBPSA1IGBT MOD 1200V 20A 20MW |
17 |
|
- |
EasyPIM™ 1B | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 20 A | - | 2.25V @ 15V, 10A | 1 mA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
VS-ENY050C60POWER MODULE |
110 |
|
- |
* | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP10R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
30 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 10 A | - | - | 4.5 µA | 1.89 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
FP15R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
5,064 |
|
- |
EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | - | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
VS-ENZ025C60NPOWER MODULE |
110 |
|
- |
* | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
