IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXH35C120L2C2ESGIGBT MODULE, CIB 1200 V, 35 A IG |
6,829 |
|
- |
- | 26-PowerDIP Module (1.199", 47.20mm) | Tube | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.333 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-DIP |
|
|
NXH35C120L2C2S1GIGBT MOD 1200V 35A 26DIP |
8,224 |
|
- |
- | 26-PowerDIP Module (1.199", 47.20mm) | Tube | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.33 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-DIP |
|
BSM75GB120DLCHOSA1IGBT MOD 1200V 170A 690W |
2,636 |
|
- |
- | Module | Bulk | Obsolete | - | 2 Independent | 1200 V | 170 A | 690 W | 2.6V @ 15V, 75A | 5 mA | 5.1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FPF2C8P2NL07AIGBT MODULE 650V 30A 135W F2 |
2,505 |
|
- |
- | F2 Module | Bulk | Obsolete | Field Stop | Three Phase | 650 V | 30 A | 135 W | 2.2V @ 15V, 30A | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | F2 |
|
FP40R12KT3BOSA1IGBT MOD 1200V 55A 210W |
2,621 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.3V @ 15V, 40A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM15GP60BOSA1IGBT MODULE 600V 25A 100W |
3,588 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 25 A | 100 W | 2.45V @ 15V, 15A | 500 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

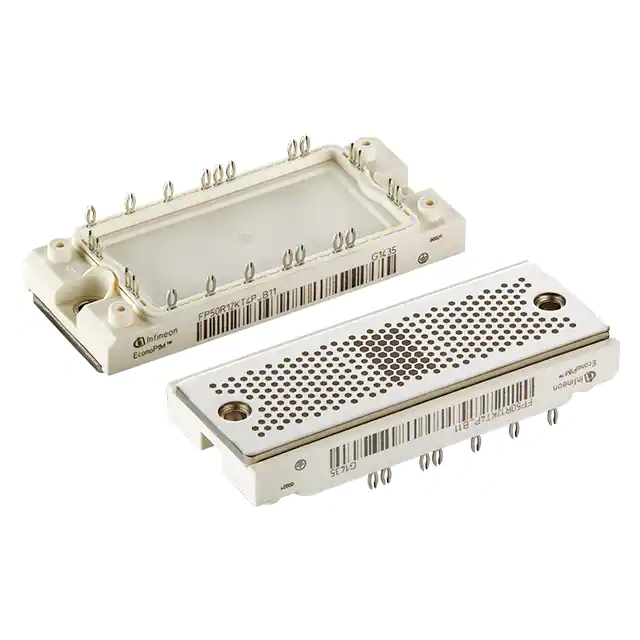

FP50R12KT4PB11BPSA1MOD IGBT LOW PWR ECONO2-4 |
8,078 |
|
- |
EconoPIM™ 2 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP75R12N2T4PBPSA1IGBT MODULE LOW POWER ECONO |
3,625 |
|
- |
EconoPIM™ 2 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF150R12KE3B8BDLA1IGBT MODULE |
33 |
|
- |
- | Module | Bulk | Active | - | Half Bridge | 1200 V | 225 A | 1250 W | 3.7V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | AG-62MM |
|
|
NXH35C120L2C2SGIGBT MODULE, CIB 1200 V, 35 A IG |
7,892 |
|
- |
- | 26-PowerDIP Module (1.199", 47.20mm) | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.33 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-DIP |
|
F450R12KS4B11BOSA1IGBT MOD 1200V 70A 355W |
2,587 |
|
- |
EconoPACK™ 2 | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 70 A | 355 W | 3.75V @ 15V, 50A | 1 mA | 3.4 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FPF2G120BF07ASIGBT MODULE 650V 40A 156W F2 |
64 |
|
- |
- | Module | Tray | Obsolete | Field Stop | 3 Independent | 650 V | 40 A | 156 W | 2.2V @ 15V, 40A | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole | F2 |
|
DF150R12RT4HOSA1IGBT MOD 1200V 150A 790W |
3,257 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Single Chopper | 1200 V | 150 A | 790 W | 2.15V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
VS-GT50YF120NTECONO - 4 PACK IGBT |
108 |
|
- |
- | Module | Box | Active | Trench Field Stop | Full Bridge | 1200 V | 64 A | 231 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
NXH50C120L2C2ES1GIGBT MOD 1200V 50A 26DIP |
6,525 |
|
- |
- | 26-PowerDIP Module (1.199", 47.20mm) | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 50 A | 20 mW | 2.4V @ 15V, 50A | 250 µA | 11.89 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-DIP |
|
|
BSM75GB170DN2HOSA1IGBT MOD 1700V 110A 625W |
4,854 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 110 A | 625 W | 3.9V @ 15V, 75A | - | 11 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
FPF2G120BF07ASPIGBT MODULE 650V 40A 156W F2 |
2,694 |
|
- |
- | Module | Bulk | Obsolete | Field Stop | 3 Independent | 650 V | 40 A | 156 W | 2.2V @ 15V, 40A | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole | F2 |
|
|
IFS75S12N3T4_B11TRANSISTOR IGBT MODULE |
200 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP75R12KT4PB11BPSA1IGBT MOD 1200V 150A 20MW |
4,912 |
|
- |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
F4100R17ME4B11BPSA1IGBT MODULE 1700V 155A |
6,476 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Full Bridge | 1700 V | 155 A | - | 2.3V @ 15V, 100A | 3 mA | 9 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
