IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP15R12KE3GBOSA1FP15R12KE3G - 1200 V, 15 A PIM T |
1,182 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP50R07U1E4BPSA1IGBT MODULE 650V 75A 230W |
5,666 |
|
- |
EconoPIM™ 2 | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 650 V | 75 A | 230 W | 1.95V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
F3L15R12W2H3B27BOMA1IGBT MOD 1200V 20A 145W |
3,190 |
|
- |
- | Module | Bulk | Obsolete | - | 3 Independent | 1200 V | 20 A | 145 W | 2.4V @ 15V, 15A | 1 mA | 875 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS50R06KE3BOSA1FS50R06 - IGBT MODULE |
772 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNXH80T120L2Q0P2GIC MODULE PIM 1200V 80A |
4,952 |
|
- |
- | Module | Tray | Obsolete | Trench Field Stop | Three Level Inverter | 1200 V | 67 A | 158 W | 2.85V @ 15V, 80A | 300 µA | 19.4 nF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
|
BSM10GD120DN2E3224BOSA1IGBT MODULE 1200V 15A 80W |
5,193 |
|
- |
- | Module | Bulk | Obsolete | - | Full Bridge | 1200 V | 15 A | 80 W | 3.2V @ 15V, 10A | 400 µA | 530 pF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
BSM50GP60B2BOSA1IGBT MODULE |
184 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP25R12KT4B15BOSA1IGBT MOD 1200V 25A 160W |
9,108 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
NXH80T120L2Q0S2TGMODULE PIM 1200V 80A |
3,960 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Three Level Inverter | 1200 V | 67 A | 158 W | 2.85V @ 15V, 80A | 300 µA | 19400 pF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|

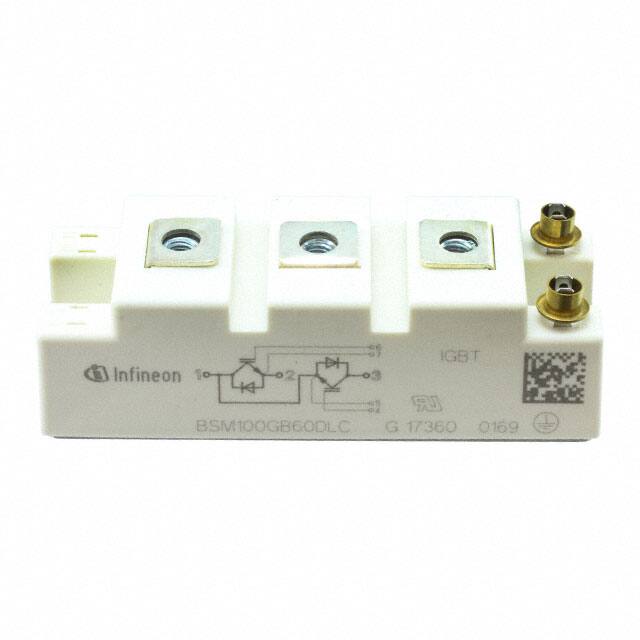

BSM100GB60DLCHOSA1IGBT MOD 600V 130A 445W |
6,479 |
|
- |
- | Module | Bulk | Obsolete | - | Single | 600 V | 130 A | 445 W | 2.45V @ 15V, 100A | 500 µA | - | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM10GP60BOSA1BSM10GP60 - IGBT MODULE 600V 20A |
125 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM50GB120DLCHOSA1IGBT MOD 1200V 115A 460W |
2,515 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 115 A | 460 W | 2.6V @ 15V, 50A | 5 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
NXH80B120H2Q0SGPIM 1200V, 40A DUAL BOOST |
19 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS50R12KT4B11BOSA1IGBT MOD 1200V 50A 280W |
7,136 |
|
- |
EconoPACK™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Full Bridge | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP50R07N2E4B11BOSA1IGBT MODULE 650V 70A |
2,138 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 650 V | 70 A | - | 1.95V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
BSM15GD120DLCE3224BOSA1IGBT MOD 1200V 35A 145W |
3,281 |
|
- |
- | Module | Bulk | Obsolete | - | Full Bridge | 1200 V | 35 A | 145 W | 2.6V @ 15V, 15A | 76 µA | 1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
DDB6U134N16RRB11BPSA1IGBT MODULE |
7,994 |
|
- |
EconoPACK™2 | Module | Bulk | Active | - | Single Chopper | 1200 V | 125 A | 400 W | 2.6V @ 15V, 75A | 1 mA | 5.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF50R12RT4HOSA1IGBT MOD 1200V 50A 285W |
4,124 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 50 A | 285 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
BSM75GAR120DN2HOSA1IGBT MOD 1200V 30A 235W |
2,640 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 30 A | 235 W | 2.2V @ 15V, 15A | 400 µA | 1 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
|
BSM100GB120DN2FE325HOSA1BSM100GB120DN2 - IGBT MODULE |
292 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
