BOM Upload
IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F3L400R10W3S7B11BPSA1IGBT MODULE LOW POWER EASY |
8 |
|
- |
- | Module | Tray | Active | Trench | - | 950 V | - | - | 1.4V @ 15V, 150A | 70 µA | 25.2 nF @ 25 V | - | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F3L600R10W4S7FC22BPSA1LOW POWER EASY AG-EASY4B-7011 |
6 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 310 A | - | 2.25V @ 15V, 400A | 1 mA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY4B |
|
FF600R12ME4CBOSA1IGBT MOD 1200V 1060A 4050W |
10 |
|
- |
- | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF750R17ME7DB11BPSA1MEDIUM POWER ECONO |
2 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 750 A | - | 1.85V @ 15V, 750A | 5 mA | 78.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
FS225R12OE4BOSA1IGBT MOD 1200V 350A 1250W |
2 |
|
- |
EconoPACK™+ | Module | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 350 A | 1250 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS300R17OE4BOSA1IGBT MOD 1700V 450A 1850W |
5 |
|
- |
EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1700 V | 450 A | 1850 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1500R17IP5PBPSA1IGBT MOD 1700V 1500A AGPRIME3+-5 |
3 |
|
- |
PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1500 A | 1500 W | 2.2V @ 15V, 1.5kA | 5 mA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount | AG-PRIME3+-5 |
|
|
FF1800R17IP5PBPSA1IGBT MODULE 1700V 3600A |
3 |
|
- |
PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1800 A | 1800000 W | 2.2V @ 15V, 1800A | 5 mA | 105 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
FZ1000R33HE3BPSA1IGBT MODULE 3300V 1000A |
3 |
|
- |
IHM-B | Module | Tray | Not For New Designs | Trench Field Stop | Single Switch | 3300 V | 1000 A | - | 3.1V @ 15V, 100A | 5 mA | 190 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

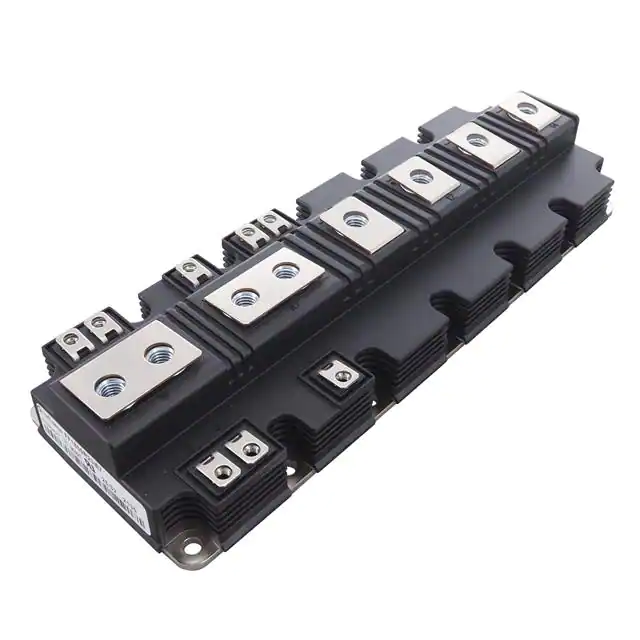

FF1800R23IE7BPSA1PP IHM I XHP 2.3KV AG-PRIME3+-7 |
2 |
|
- |
PrimePACK™3+ B | Module | Tray | Active | - | 2 Independent | 2300 V | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-PRIME3+ |
|
|
FF1800R23IE7PBPSA1IGBT MODULE |
2 |
|
- |
PrimePACK™3+ B | Module | Bulk | Active | - | 2 Independent | 2300 V | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | PrimePACK™ 3+ |
|
|
SK2U120-1200120A,1200V,SOT-227, POWER MODULE |
36 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STGSH80HB65DAGLinear IC's |
46 |
|
- |
HB | 9-PowerSMD | Bulk | Active | - | Half Bridge | 650 V | 83 A | 250 W | 2.1V @ 15V, 80A | - | 10450 pF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Surface Mount | 9-ACEPACK SMIT |
|
FS20R06W1E3BOMA1IGBT MODULE 600V 35A 135W |
24 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS20R06W1E3B11BOMA1IGBT MODULE 600V 35A 135W |
32 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 600 V | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FB30R06W1E3BOMA1IGBT MODULE 600V 39A 115W |
24 |
|
- |
EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 39 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP30R06W1E3B11BOMA1IGBT MODULE 600V 37A 115W |
24 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 37 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
IXYN85N120C4H11200V, 85A, XPT GEN4 C4 CO-PACK |
40 |
|
- |
XPT™ | SOT-227-4, miniBLOC | Tube | Active | Trench | Single | 1200 V | 150 A | 600 W | 2.5V @ 15V, 85A | 50 µA | 4030 pF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
|
MIP15R12E1TN-BPIGBT MODULES |
8 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 15 A | 142 W | 2.2V @ 15V, 15A | 1 mA | 1100 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
APT35GP120JIGBT MOD 1200V 64A 284W ISOTOP |
20 |
|
- |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 64 A | 284 W | 3.9V @ 15V, 35A | 250 µA | 3.24 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
