IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP15R12KT3BPSA1LOW POWER ECONO AG-ECONO2C-311 |
6 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 25 A | 105 W | 2.45V @ 15V, 10A | 5 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2C |
|
DDB6U104N16RRBPSA1LOW POWER ECONO AG-ECONO2B-211 |
5 |
|
- |
- | Module | Tray | Active | - | Single Chopper | 1200 V | 50 A | - | 2.8V @ 15V, 50A | 1 mA | 3.3 nF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
DDB6U134N16RRB80BPSA1LOW POWER ECONO AG-ECONO2B-8231 |
13 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS35R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
12 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 55 A | 210 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DDB6U180N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-411 |
15 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 140 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FF225R17ME7B11BPSA1ECONODUAL3 MODULE WITH TRENCHSTO |
9 |
|
- |
EconoDUAL™ 3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 225 A | - | 1.85V @ 15V, 225A | 5 mA | 22.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
FS50R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
7 |
|
- |
- | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 75 A | 270 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
NXH200B100H4F2SG1500V F2 BOOST FOR SOLAR PIM |
17 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1000 V | 100 A | 93 W | 2.4V @ 15V, 100A | 200 µA | 6.523 nF @ 20 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 36-PIM (56.7x48) |
|

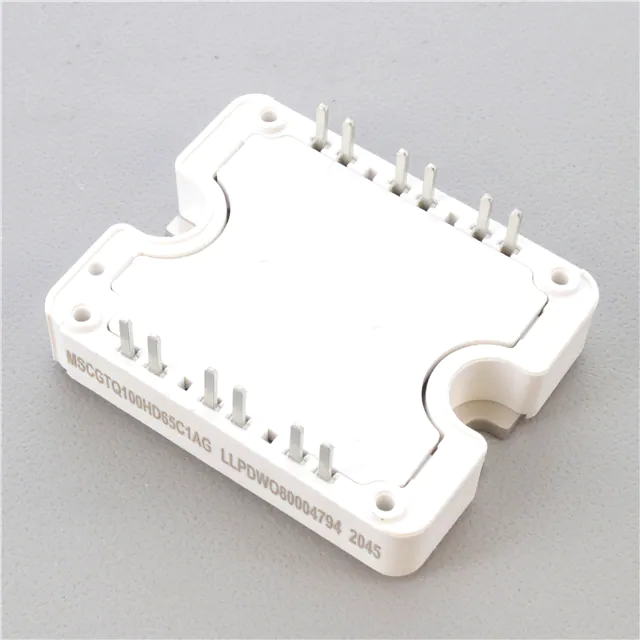

MSCGTQ100HD65C1AGPM-IGBT-TFS-SBD~-SP1F |
2 |
|
- |
MSC | Module | Tube | Active | Trench | Half Bridge | 650 V | 80 A | - | - | 80 A | - | Standard | No | - | Chassis Mount | SP1 |
|
|
FS150R12N2T7B54BPSA1LOW POWER ECONO |
6 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
F1225R12KT4GBOSA1IGBT MOD 1200V 25A 160W |
8 |
|
- |
EconoPACK™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FS150R12KT3BOSA1IGBT MOD 1200V 200A 700W |
8 |
|
- |
EconoPACK™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 700 W | 2.15V @ 15V, 150A | 5 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS75R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
11 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FS75R17KE3BOSA1IGBT MOD 1700V 130A 465W |
8 |
|
- |
- | Module | Tray | Active | - | Full Bridge | 1700 V | 130 A | 465 W | 2.45V @ 15V, 75A | 5 mA | 6.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

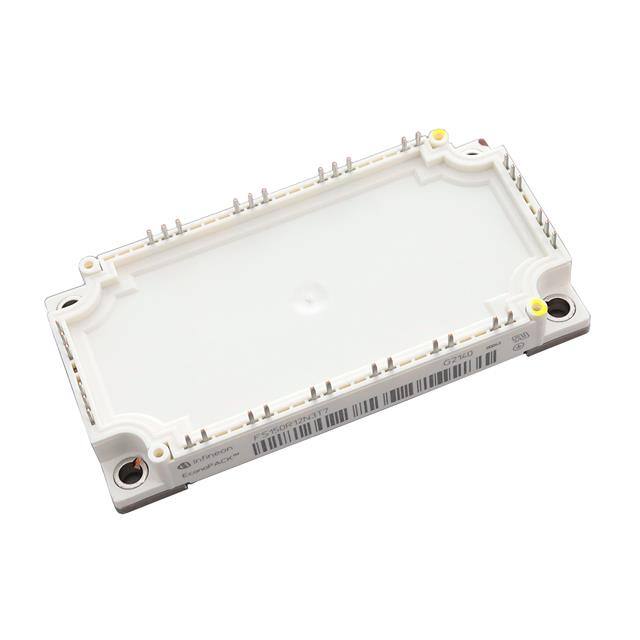

FS150R12N3T7BPSA1LOW POWER ECONO AG-ECONO3B-711 |
2 |
|
- |
EasyPACK™3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
FP100R12N3T7B11BPSA1LOW POWER ECONO AG-ECONO3B-711 |
2 |
|
- |
EconoPIM™ 3 | - | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | - | - | - | Standard | No | - | - | - |
|
|
FS100R17N3E4BOSA1IGBT MOD 1700V 100A 600W |
6 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 100 A | 600 W | 2.3V @ 15V, 100A | 1 mA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MIXA450PF1200TSFIGBT MOD 1200V 650A 2100W |
3 |
|
- |
- | Module | Box | Active | PT | Half Bridge | 1200 V | 650 A | 2100 W | 2.15V @ 15V, 450A | 1 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F4200R12N3H3FB11BPSA1LOW POWER ECONO AG-ECONO3B-411 |
10 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FF200R12KS4PHOSA1IGBT MOD 1200V 275A 1400W |
4 |
|
- |
- | Module | Tray | Active | - | Half Bridge | 1200 V | 275 A | 1400 W | 3.7V @ 15V, 200A | 5 mA | 13 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
