IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FB50R07W2E3C36BPSA1LOW POWER EASY |
15 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS50R12W2T4B11BOMA1IGBT MOD 1200V 83A 335W |
7 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 83 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
PCHMB50W6IGBT MODULE, 1IN1, CHOPPER CIRCU |
12 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 50 A | 181 W | 1.95V @ 15V, 50A | 1 mA | 4500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRHMB50W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
12 |
|
- |
- | Module | Bulk | Active | - | Single | 1200 V | 50 A | 231 W | 2V @ 15V, 50A | 1 mA | 5300 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PCFMB50W6IGBT MODULE, 1IN1, CHOPPER CIRCU |
12 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 50 A | 181 W | 1.95V @ 15V, 50A | 1 mA | 4500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRFMB50W6IGBT MODULE, 1IN1, BRAKE CHOPPER |
12 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 50 A | 181 W | 1.95V @ 15V, 50A | 1 mA | 4500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRHMB100W6IGBT MODULE, 1IN1, BRAKE CHOPPER |
10 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 100 A | 320 W | 1.95V @ 15V, 100A | 1 mA | 8500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRFMB50W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
12 |
|
- |
- | Module | Bulk | Active | - | Single | 1200 V | 50 A | 230 W | 2V @ 15V, 50A | 1 mA | 5300 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRFMB75W6IGBT MODULE, 1IN1, BRAKE CHOPPER |
12 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 75 A | 255 W | 1.95V @ 15V, 75A | 1 mA | 6600 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FB50R07W2E3B23BOMA1LOW POWER EASY AG-EASY2B-2 |
13 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS50R12W2T7PBPSA1LOW POWER EASY |
15 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PRFMB75W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
12 |
|
- |
- | Module | Bulk | Active | - | Single | 1200 V | 75 A | 290 W | 2V @ 15V, 75A | 1 mA | 8000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRHMB100W12IGBT MODULE, 1IN1, BRAKE CHOPPER |
12 |
|
- |
- | Module | Bulk | Active | - | Single | 1200 V | 100 A | 403 W | 2V @ 15V, 100A | 1 mA | 10000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FS50R12W2T7PB11BPSA1LOW POWER EASY |
18 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP35R12N2T7BPSA2LOW POWER ECONO |
15 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
PDMB50W12IGBT MODULE, 2IN1, 1200V/50A |
9 |
|
- |
- | Module | Bulk | Active | - | Dual, Common Source | 1200 V | 50 A | 231 W | 2V @ 15V, 50A | 1 mA | 5300 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
PRFMB100W6IGBT MODULE, 1IN1, BRAKE CHOPPER |
9 |
|
- |
- | Module | Bulk | Active | - | Single | 650 V | 100 A | 320 W | 1.95V @ 15V, 100A | 1 mA | 8500 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
NXH50M65L4Q1SGQ1PACK 50A 650V |
21 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Full Bridge | 650 V | 48 A | 86 W | 2.22V @ 15V, 50A | 300 µA | 3.137 nF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | 56-PIM (93x47) |
|
|
PDMB75W12IGBT MODULE, 2IN1, 1200V/75A |
6 |
|
- |
- | Module | Bulk | Active | - | Dual, Common Source | 1200 V | 75 A | 290 W | 2V @ 15V, 75A | 1 mA | 8000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

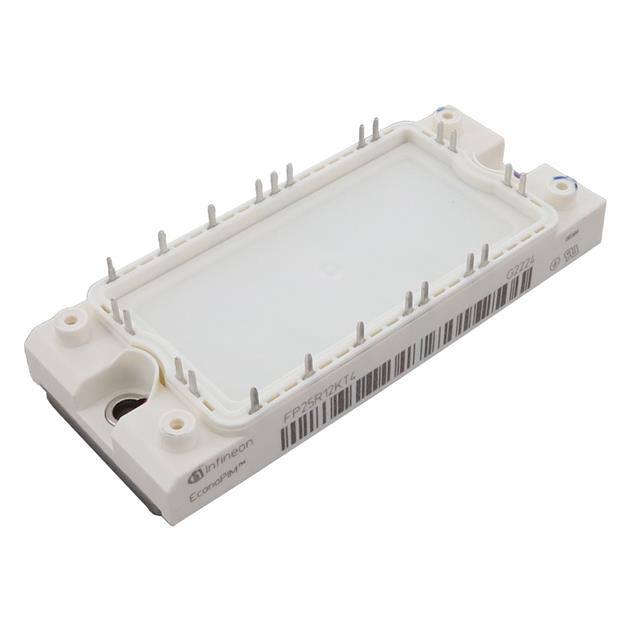

FP25R12KT4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
15 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
