IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIXA40W1200TEDIGBT MODULE 1200V 60A 195W E2 |
2 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 60 A | 195 W | 2.1V @ 15V, 35A | 2.1 mA | - | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
F3L75R12W1H3BPSA1LOW POWER EASY AG-EASY1B-311 |
24 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS75R12W2T4BOMA1IGBT MOD 1200V 107A 375W |
9 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
DF200R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 |
15 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 70 A | - | 2V @ 15V, 50A | 21 µA | 2.95 nF @ 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP35R12W2T4PB11BPSA1IGBT MOD 1200V 70A 20MW |
8 |
|
- |
EasyPIM™ 2B | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | - | 2.2V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
F3L100R12W2H3B11BPSA1IGBT MOD 1200V 100A 375W |
15 |
|
- |
EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 100 A | 375 W | 1.75V @ 15V, 50A | 1 mA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF300R08W2P2B11ABOMA1EASY PACK AG-EASY2B-3 |
4 |
|
- |
EasyPACK™ | Module | Tray | Active | - | 2 Independent | 750 V | 200 A | - | 1.18V @ 15V, 200A | 1 mA | 53 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B-3 |
|

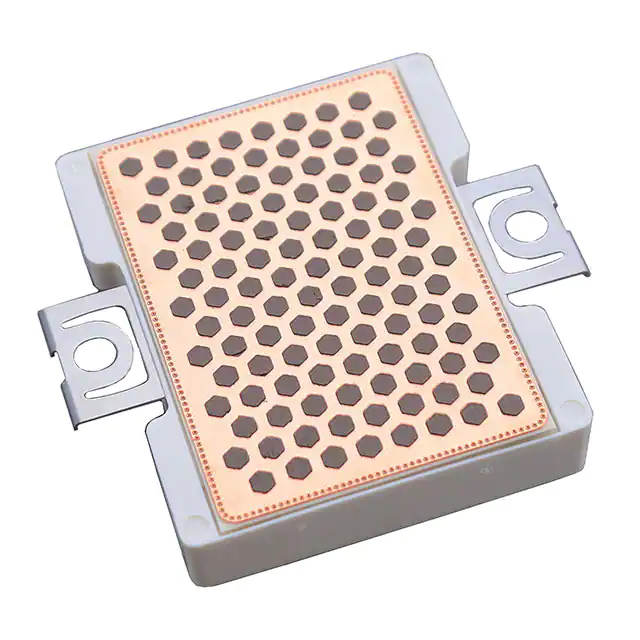

FS100R12W2T7PBPSA1LOW POWER EASY AG-EASY2B-711 |
19 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | - | - | 9 µA | 21.7 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
DF80R12W2H3FB11BPSA1IGBT MOD 1200V 20A 20MW |
13 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 20 A | - | 1.7V @ 15V, 20A | 1 mA | 2.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
NXH80T120L3Q0S3GPIM GENERATION3 Q0PACK 1200V, 80 |
24 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 188 W | 2.4V @ 15V, 80A | 300 µA | 18.15 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
FP50R12KT3BOSA1IGBT MOD 1200V 75A 280W |
7 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FP35R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2C-211 |
9 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2C |
|
|
FP50R12N2T7BPSA2LOW POWER ECONO |
5 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DF300R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 |
15 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 90 A | - | 2V @ 15V, 150A | 26 µA | 2.95 nF @ 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP75R12N3T7BPSA1LOW POWER ECONO |
10 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 13 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FP75R12N2T7BPSA2LOW POWER ECONO |
4 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.55V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP40R12KT3BPSA1LOW POWER ECONO |
17 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 55 A | 105 W | 2.3V @ 15V, 40A | 5 mA | 2.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
|
DDB6U134N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-211 |
12 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | - | Single Chopper | 1200 V | 125 A | 400 W | 2.6V @ 15V, 75A | 1 mA | 5.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FS3L30R07W2H3FB11BPSA2IGBT MOD 650V 30A 20MW |
14 |
|
- |
EasyPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 650 V | 30 A | - | 1.9V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F3L150R12W2H3B11BPSA1IGBT MOD 1200V 75A 500W |
9 |
|
- |
EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 75 A | 500 W | 1.75V @ 15V, 75A | 1 mA | 8.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
