| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GB100TP120NIGBT MOD 1200V 200A INT-A-PAK |
7,106 |
|
- |
- | INT-A-Pak | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 650 W | 2.2V @ 15V, 100A | 5 mA | 7.43 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB100TS60NPBFIGBT MOD 600V 108A INT-A-PAK |
3,722 |
|
- |
- | INT-A-Pak | Bulk | Obsolete | NPT | Half Bridge | 600 V | 108 A | 390 W | 2.85V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB150TH120NIGBT MOD 1200V 300A INT-A-PAK |
3,293 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 1008 W | 2.35V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB15XP120KTPBFIGBT MODULE 1200V 30A 187W MTP |
3,300 |
|
- |
- | 12-MTP Module | Bulk | Active | NPT | Three Phase Inverter | 1200 V | 30 A | 187 W | 3.66V @ 15V, 30A | 250 µA | 1.95 nF @ 30 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-GB200TH120NIGBT MOD 1200V 360A INT-A-PAK |
4,623 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 360 A | 1136 W | 2.35V @ 15V, 200A | 5 mA | 14.9 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB200TH120UIGBT MOD 1200V 330A INT-A-PAK |
3,214 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 330 A | 1316 W | 3.6V @ 15V, 200A | 5 mA | 16.9 nF @ 30 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB300AH120NIGBT MOD 1200V 620A INT-A-PAK |
8,200 |
|
- |
- | Double INT-A-PAK (5) | Bulk | Obsolete | - | Single | 1200 V | 620 A | 2500 W | 1.9V @ 15V, 300A (Typ) | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB300LH120NIGBT MOD 1200V 500A INT-A-PAK |
5,360 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Single | 1200 V | 500 A | 1645 W | 2V @ 15V, 300A (Typ) | 5 mA | 21.2 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB300TH120NIGBT MOD 1200V 500A INT-A-PAK |
8,201 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 500 A | 1645 W | 2.45V @ 15V, 300A | 5 mA | 21.2 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB400TH120NIGBT MOD 1200V 800A INT-A-PAK |
6,923 |
|
- |
- | Double INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 800 A | 2604 W | 1.9V @ 15V, 400A (Typ) | 5 mA | 32.7 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB50TP120NIGBT MOD 1200V 100A INT-A-PAK |
8,014 |
|
- |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 100 A | 446 W | 2.15V @ 15V, 50A | 5 mA | 4.29 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB50YF120NIGBT MOD 1200V 66A ECONO2 4PACK |
9,302 |
|
- |
- | Module | Bulk | Obsolete | - | - | 1200 V | 66 A | 330 W | 4.5V @ 15V, 75A | 250 µA | - | Standard | No | 150°C (TJ) | Chassis Mount | ECONO2 4PACK |
|
|
VS-GB600AH120NIGBT MOD 1200V 910A INT-A-PAK |
4,468 |
|
- |
- | Double INT-A-PAK (5) | Bulk | Obsolete | - | Single | 1200 V | 910 A | 3125 W | 1.9V @ 15V, 600A (Typ) | 5 mA | 41 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GB75TP120NIGBT MOD 1200V 150A INT-A-PAK |
8,436 |
|
- |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | - | Half Bridge | 1200 V | 150 A | 543 W | 2.35V @ 15V, 75A | 5 mA | 5.52 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GB75YF120NIGBT MOD 1200V 100A ECONO2 4PACK |
2,777 |
|
- |
- | Module | Bulk | Obsolete | - | - | 1200 V | 100 A | 480 W | 4.5V @ 15V, 100A | 250 µA | - | Standard | No | 150°C (TJ) | Chassis Mount | ECONO2 4PACK |
|
|
VS-GB75YF120UTIGBT MOD 1200V 100A ECONO2 4PACK |
2,577 |
|
- |
- | Module | Bulk | Obsolete | - | - | 1200 V | 100 A | 480 W | 4.5V @ 15V, 100A | 250 µA | - | Standard | Yes | 150°C (TJ) | Chassis Mount | ECONO2 4PACK |
|
VS-GB90DA120UIGBT MOD 1200V 149A 862W SOT227 |
2,552 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | NPT | Single | 1200 V | 149 A | 862 W | 3.8V @ 15V, 75A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT100TP120NIGBT MOD 1200V 180A INT-A-PAK |
3,031 |
|
- |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 180 A | 652 W | 2.35V @ 15V, 100A | 5 mA | 12.8 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK |
|

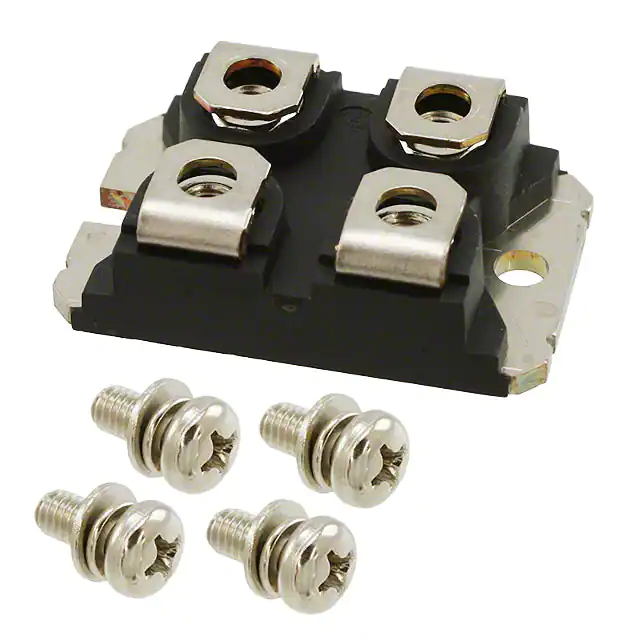

VS-GT175DA120UIGBT MOD 1200V 288A 1087W SOT227 |
5,501 |
|
- |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | Trench | Single | 1200 V | 288 A | 1087 W | 2.1V @ 15V, 100A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT400TH120NIGBT MOD 1200V 600A INT-A-PAK |
8,411 |
|
- |
- | Double INT-A-PAK (3 + 8) | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 600 A | 2119 W | 2.15V @ 15V, 400A | 5 mA | 28.8 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Double INT-A-PAK |
