| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM400DU-24HIGBT MOD 1200V 400A 2100W |
3,419 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 400 A | 2100 W | 3.7V @ 15V, 400A | 2 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

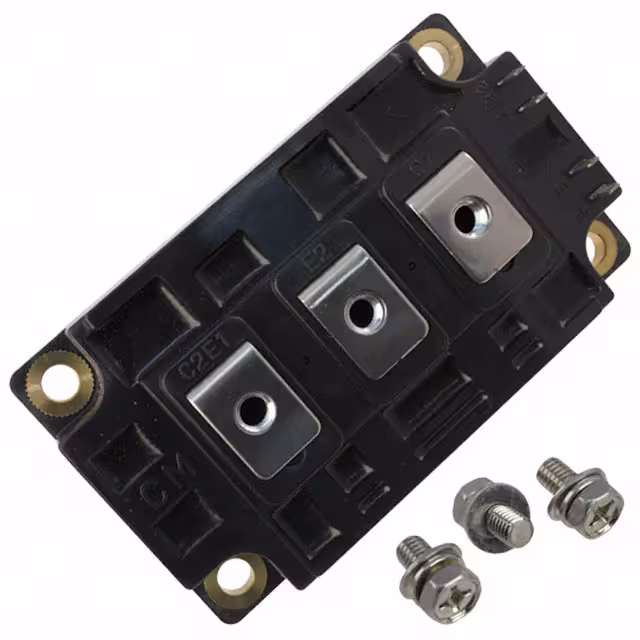

CM400DY-12HIGBT MOD 600V 400A 1500W |
8,575 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 400 A | 1500 W | 2.8V @ 15V, 400A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM400HA-12HIGBT MOD 600V 400A 1500W |
6,616 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 400 A | 1500 W | 2.8V @ 15V, 400A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM400HA-24HIGBT MOD 1200V 400A 2800W |
5,358 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 400 A | 2800 W | 3.4V @ 15V, 400A | 2 mA | 80 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM400HA-28HIGBT MOD 1400V 400A 2800W |
4,943 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1400 V | 400 A | 2800 W | 4.2V @ 15V, 400A | 2 mA | 80 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM400HA-34HIGBT MOD 1700V 400A 4100W |
6,640 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1700 V | 400 A | 4100 W | 3.7V @ 15V, 400A | 4 mA | 85 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM450HA-5FIGBT MOD 250V 450A 735W |
8,371 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Single | 250 V | 450 A | 735 W | 1.7V @ 10V, 450A | 1 mA | 132 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50DU-24HIGBT MOD 1200V 50A 400W |
3,934 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 50 A | 400 W | 3.7V @ 15V, 50A | 1 mA | 7.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50DY-12HIGBT MODULE 600V 50A 250W |
8,561 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 1 mA | 5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50DY-24HIGBT MOD 1200V 50A 400W |
5,002 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 50 A | 400 W | 3.4V @ 15V, 50A | 1 mA | 10 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50DY-28HIGBT MOD 1400V 50A 400W |
5,329 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1400 V | 50 A | 400 W | 4.2V @ 15V, 50A | 1 mA | 10 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50E3U-24HIGBT MOD 1200V 50A 400W |
9,639 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 50 A | 400 W | 3.7V @ 15V, 50A | 1 mA | 7.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50TF-12HIGBT MODULE 600V 50A 250W |
6,210 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 1 mA | 5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50TF-24HIGBT MOD 1200V 50A 400W |
8,130 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 50 A | 400 W | 3.4V @ 15V, 50A | 1 mA | 10 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50TF-28HIGBT MOD 1400V 50A 400W |
4,024 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1400 V | 50 A | 400 W | 4.2V @ 15V, 50A | 1 mA | 10 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM50TU-24HIGBT MOD 1200V 50A 400W |
9,729 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 50 A | 400 W | 3.7V @ 15V, 50A | 1 mA | 7.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600DU-24FIGBT MOD 1200V 600A 1540W |
2,572 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 600 A | 1540 W | 2.55V @ 15V, 600A | 2 mA | 230 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600HA-24HIGBT MOD 1200V 600A 4100W |
5,675 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 600 A | 4100 W | 3.4V @ 15V, 600A | 2 mA | 120 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600HA-28HIGBT MOD 1400V 600A 4100W |
2,657 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1400 V | 600 A | 4100 W | 4.2V @ 15V, 600A | 2 mA | 120 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM600HB-24AIGBT MOD 1200V 600A 3670W |
2,264 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 600 A | 3670 W | 3V @ 15V, 600A | 1 mA | 105 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
