IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GT400TH60NIGBT MOD 600V 530A INT-A-PAK |
7,555 |
|
- |
- | Double INT-A-PAK (3 + 8) | Bulk | Active | Trench | Half Bridge | 600 V | 530 A | 1600 W | 2.05V @ 15V, 400A | 5 mA | 30.8 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GT50TP120NIGBT MOD 1200V 100A INT-A-PAK |
2,541 |
|
- |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 100 A | 405 W | 2.35V @ 15V, 50A | 5 mA | 6.24 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GT50TP60NIGBT MOD 600V 85A 208W INT-A-PAK |
4,039 |
|
- |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Trench | Half Bridge | 600 V | 85 A | 208 W | 2.1V @ 15V, 50A | 1 mA | 3.03 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-100MT060WDFIGBT MODULE 600V 121A 462W MTP |
2,573 |
|
- |
- | 16-MTP Module | Tray | Obsolete | - | - | 600 V | 121 A | 462 W | 2.29V @ 15V, 60A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-20MT120UFAPBFIGBT MODULE 1200V 20A 240W MTP |
6,748 |
|
- |
- | 16-MTP Module | Tray | Obsolete | NPT | Full Bridge Inverter | 1200 V | 20 A | 240 W | 4.66V @ 15V, 40A | 250 µA | 3.79 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-20MT120UFPIGBT MODULE 1200V 40A 240W MTP |
8,024 |
|
- |
- | 16-MTP Module | Tray | Obsolete | NPT | Full Bridge Inverter | 1200 V | 40 A | 240 W | 4.66V @ 15V, 40A | 250 µA | 3.79 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-25MT060WFAPBFIGBT MODULE 600V 69A 195W MTP |
9,873 |
|
- |
- | 16-MTP Module | Tray | Obsolete | - | Full Bridge Inverter | 600 V | 69 A | 195 W | 3.25V @ 15V, 50A | 250 µA | 5.42 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-40MT120UHAPBFIGBT MODULE 1200V 80A 463W MTP |
7,296 |
|
- |
- | 12-MTP Module | Tube | Obsolete | NPT | Half Bridge | 1200 V | 80 A | 463 W | 4.91V @ 15V, 80A | 250 µA | 8.28 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-40MT120UHTAPBFIGBT MODULE 1200V 80A 463W MTP |
4,861 |
|
- |
- | 12-MTP Module | Tray | Obsolete | NPT | Half Bridge | 1200 V | 80 A | 463 W | 4.91V @ 15V, 80A | 250 µA | 8.28 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|

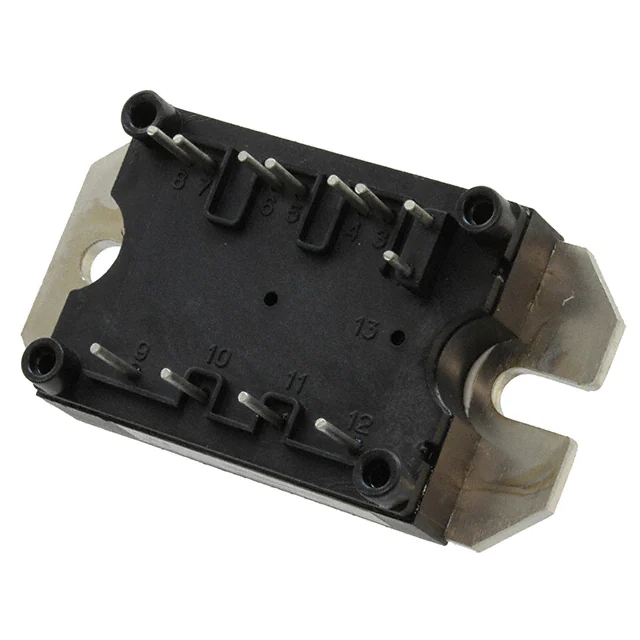

VS-50MT060WHTAPBFIGBT MODULE 600V 114A 658W MTP |
8,417 |
|
- |
- | 12-MTP Module | Tray | Obsolete | - | Half Bridge | 600 V | 114 A | 658 W | 3.2V @ 15V, 100A | 400 µA | 7.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-70MT060WHTAPBFIGBT MODULE 600V 100A 347W MTP |
9,501 |
|
- |
- | 12-MTP Module | Tray | Obsolete | NPT | Half Bridge | 600 V | 100 A | 347 W | 3.4V @ 15V, 140A | 700 µA | 8 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-70MT060WSPIGBT MODULE 600V 96A 378W MTP |
4,258 |
|
- |
- | 12-MTP Module | Tray | Obsolete | - | Single | 600 V | 96 A | 378 W | 2.15V @ 15V, 40A | 100 µA | 7.43 nF @ 30 V | Single Phase Bridge Rectifier | Yes | 150°C (TJ) | Chassis Mount | MTP |
|
|
FPF1C2P5MF07AMIGBT MODULE 620V 39A 231W F1 |
6,785 |
|
- |
- | F1 Module | Tray | Obsolete | - | Full Bridge Inverter | 620 V | 39 A | 231 W | 1.6V @ 15V, 30A | 25 µA | - | Single Phase Bridge Rectifier | No | -40°C ~ 150°C (TJ) | Chassis Mount | F1 |
|
VS-ETF150Y65UIGBT MOD 650V 142A EMIPAK-2B |
3,153 |
|
- |
- | EMIPAK-2B | Tray | Obsolete | Trench | Three Level Inverter | 650 V | 142 A | 417 W | 2.06V @ 15V, 100A | 100 µA | 6.6 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | EMIPAK-2B |
|
VS-GB55LA120UXIGBT MOD 1200V 84A 431W SOT227 |
9,410 |
|
- |
HEXFRED® | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 1200 V | 84 A | 431 W | - | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GB55NA120UXIGBT MOD 1200V 84A 431W SOT227 |
3,593 |
|
- |
HEXFRED® | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 1200 V | 84 A | 431 W | - | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GB75LA60UFIGBT MOD 600V 109A 447W SOT227 |
3,735 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 600 V | 109 A | 447 W | 2V @ 15V, 35A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GB75NA60UFIGBT MOD 600V 109A 447W SOT227 |
5,896 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 600 V | 109 A | 447 W | 2V @ 15V, 35A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT105LA120UXIGBT MOD 1200V 134A 463W SOT227 |
8,276 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 1200 V | 134 A | 463 W | - | 75 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT105NA120UXIGBT MOD 1200V 134A 463W SOT227 |
5,693 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | Trench | Single | 1200 V | 134 A | 463 W | - | 75 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
