IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM15TF-24HIGBT MOD 1200V 15A 150W |
6,858 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 15 A | 150 W | 3.4V @ 15V, 15A | 1 mA | 3 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM200DU-24FIGBT MOD 1200V 200A 890W |
8,726 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 200 A | 890 W | 2.4V @ 15V, 200A | 1 mA | 78 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200DU-24HIGBT MOD 1200V 200A 1130W |
5,058 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 1130 W | 3.7V @ 15V, 200A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM200DY-12HIGBT MOD 600V 200A 780W |
5,113 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 200 A | 780 W | 2.8V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|

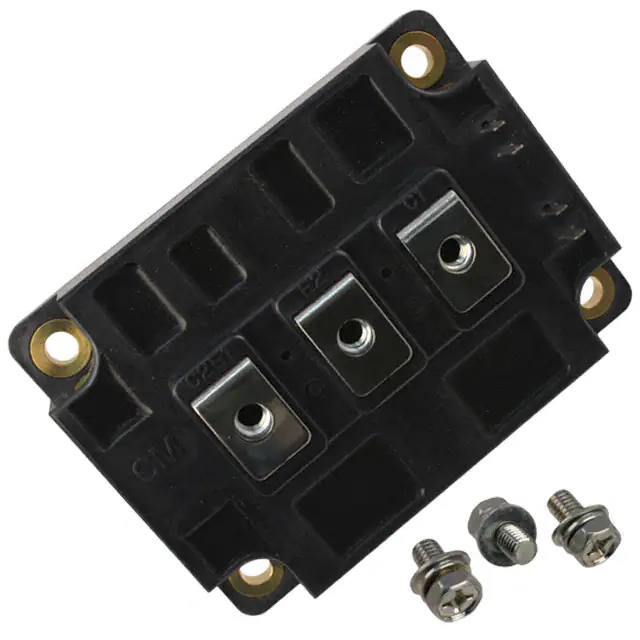

CM200DY-24HIGBT MOD 1200V 200A 1500W |
8,392 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 200 A | 1500 W | 3.4V @ 15V, 200A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200DY-28HIGBT MOD 1400V 200A 1500W |
8,619 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1400 V | 200 A | 1500 W | 4.2V @ 15V, 200A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200E3U-12HIGBT MOD 600V 200A 650W |
7,920 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 200 A | 650 W | 3V @ 15V, 200A | 1 mA | 17.6 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200HA-24HIGBT MOD 1200V 200A 1500W |
3,743 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 200 A | 1500 W | 3.4V @ 15V, 200A | 1 mA | 40 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200RX-12AIGBT MOD 600V 200A 735W |
8,957 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 600 V | 200 A | 735 W | 2.1V @ 15V, 200A | 1 mA | 27 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM200TU-12FIGBT MOD 600V 200A 590W |
7,558 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Three Phase Inverter | 600 V | 200 A | 590 W | 2.2V @ 15V, 200A | 1 mA | 54 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DU-24FIGBT MOD 1200V 300A 890W |
8,917 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 300 A | 890 W | 2.4V @ 15V, 300A | 1 mA | 120 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DU-24HIGBT MOD 1200V 300A 1130W |
3,913 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 1130 W | 3.7V @ 15V, 300A | 1 mA | 45 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DY-12HIGBT MOD 600V 300A 1100W |
6,813 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 300 A | 1100 W | 2.8V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DY-24HIGBT MOD 1200V 300A 2100W |
4,329 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 2100 W | 3.2V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300DY-28HIGBT MOD 1400V 300A 2100W |
7,204 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1400 V | 300 A | 2100 W | 4.2V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300E3U-12HIGBT MOD 600V 300A 890W |
5,033 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 300 A | 890 W | 3V @ 15V, 300A | 1 mA | 26.4 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300HA-12HIGBT MOD 600V 300A 1100W |
9,554 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 600 V | 300 A | 1100 W | 2.8V @ 15V, 300A | 1 mA | 30 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300HA-24HIGBT MOD 1200V 300A 2100W |
6,674 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 300 A | 2100 W | 3.4V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM300HA-28HIGBT MOD 1400V 300A 2100W |
2,705 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1400 V | 300 A | 2100 W | 4.2V @ 15V, 300A | 1 mA | 60 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM30TF-12HIGBT MODULE 600V 30A 150W |
7,507 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 30 A | 150 W | 2.8V @ 15V, 30A | 1 mA | 3 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
