IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT75A170D1GIGBT MODULE 1700V 120A 520W D1 |
2,732 |
|
- |
- | D1 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1700 V | 120 A | 520 W | 2.4V @ 15V, 75A | 5 mA | 6.5 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
|
APTGT75SK170D1GIGBT MODULE 1700V 120A 520W D1 |
5,043 |
|
- |
- | D1 | Bulk | Obsolete | Trench Field Stop | Single | 1700 V | 120 A | 520 W | 2.4V @ 15V, 75A | 5 mA | 6.5 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|

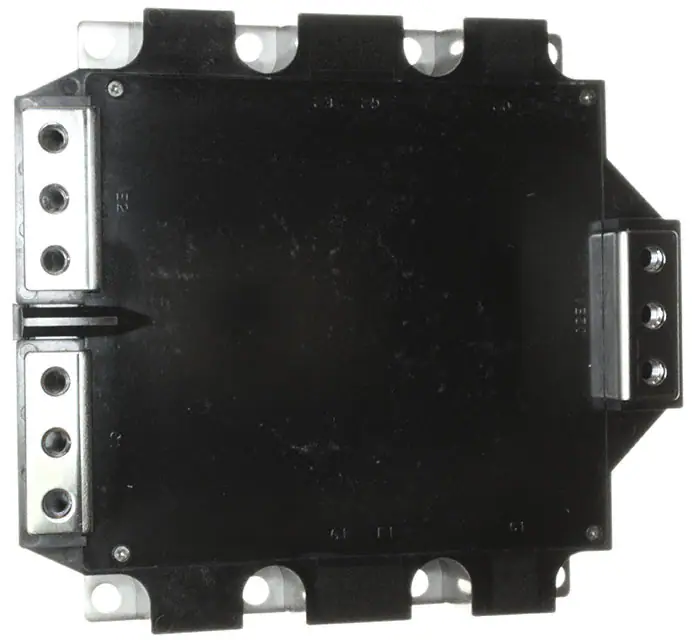

CM1000DU-34NFIGBT MOD 1700V 1000A 3900W |
7,019 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 1000 A | 3900 W | 2.8V @ 15V, 1000A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

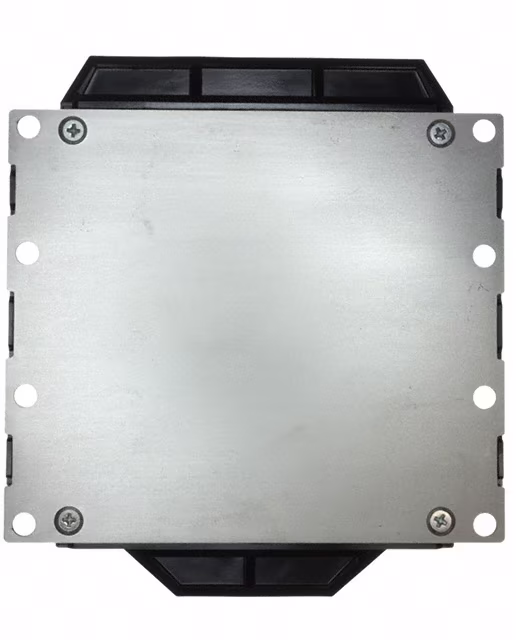

CM1400DU-24NFIGBT MOD 1200V 1400A 3900W |
9,967 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 1400 A | 3900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM450DX-24AIGBT MOD 1200V 450A 2840W |
2,780 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 450 A | 2840 W | 2.6V @ 15V, 450A | 1 mA | 68 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

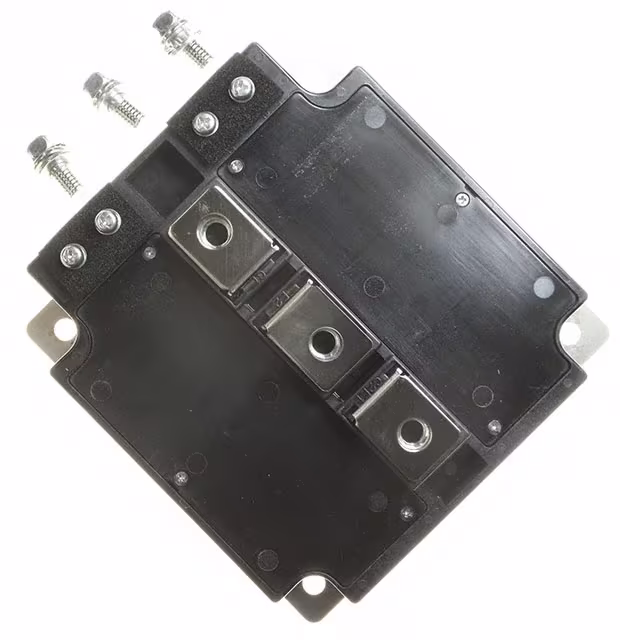

CM600DU-24NFIGBT MOD 1200V 600A 2080W |
6,000 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 600 A | 2080 W | 2.65V @ 15V, 600A | 1 mA | 140 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

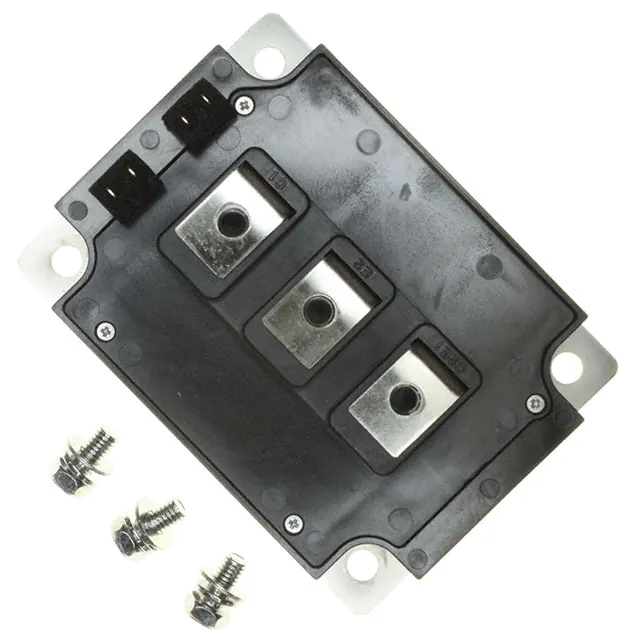

CM600DY-12NFIGBT MOD 600V 600A 1130W |
3,660 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 600 A | 1130 W | 2.2V @ 15V, 600A | 1 mA | 90 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

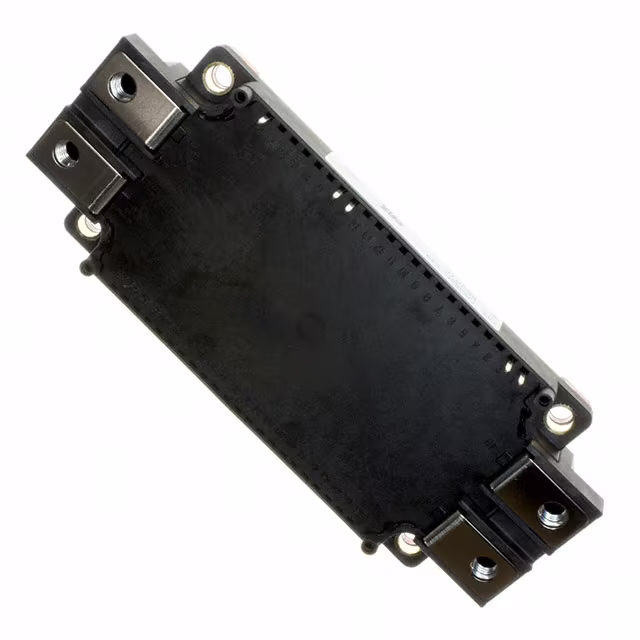

CM600HX-24AIGBT MOD 1200V 600A 3785W |
6,299 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 600 A | 3785 W | 2.6V @ 15V, 600A | 1 mA | 100 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
IXGN200N60A2IGBT MOD 600V 200A 700W SOT227B |
2,515 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 200 A | 700 W | 1.35V @ 15V, 100A | 50 µA | 9.9 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

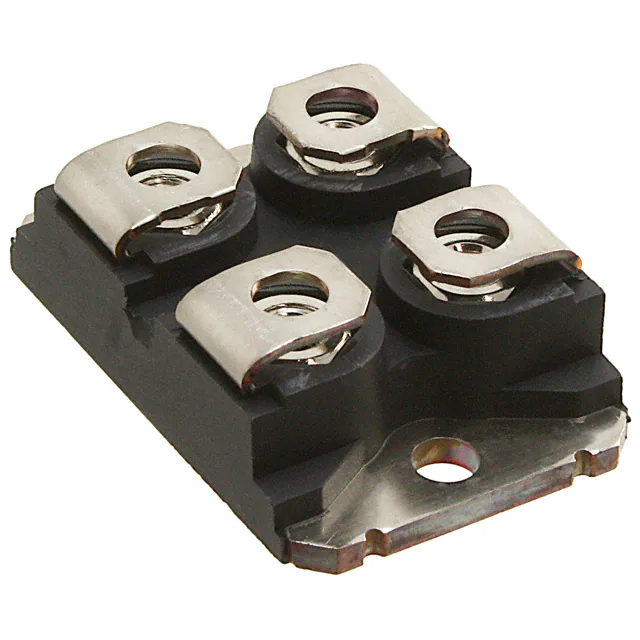

IXGN200N60BIGBT MOD 600V 200A 600W SOT227B |
7,679 |
|
- |
HiPerFAST™ | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 200 A | 600 W | 2.1V @ 15V, 120A | 200 µA | 11 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
IXSN52N60AU1IGBT MOD 600V 80A 250W SOT227B |
4,851 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 80 A | 250 W | 3V @ 15V, 40A | 750 µA | 4.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
MUBW40-12T7IGBT MODULE 1200V 62A 220W E2 |
7,216 |
|
- |
- | E2 | Box | Active | Trench | Three Phase Inverter with Brake | 1200 V | 62 A | 220 W | 2.6V @ 15V, 40A | 1.75 mA | 2.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MUBW45-12T6KIGBT MODULE 1200V 43A 160W E1 |
3,531 |
|
- |
- | E1 | Box | Active | Trench | Three Phase Inverter with Brake | 1200 V | 43 A | 160 W | 3.1V @ 15V, 45A | 1.25 mA | 1.81 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
MUBW50-12T8IGBT MODULE 1200V 80A 270W E3 |
2,007 |
|
- |
- | E3 | Box | Active | Trench | Three Phase Inverter with Brake | 1200 V | 80 A | 270 W | 2.15V @ 15V, 50A | 2.7 mA | 3.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MWI100-12T8TIGBT MODULE 1200V 145A 480W E3 |
5,442 |
|
- |
- | E3 | Box | Active | Trench | Three Phase Inverter | 1200 V | 145 A | 480 W | 2.1V @ 15V, 100A | 4 mA | 7.21 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MWI225-17E9IGBT MODULE 1700V 335A 1400W E+ |
3,188 |
|
- |
- | E+ | Box | Active | NPT | Three Phase | 1700 V | 335 A | 1400 W | 2.9V @ 15V, 225A | 600 µA | 22 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E+ |
|
|
MWI300-12E9IGBT MODULE 1200V 530A 2100W E+ |
5,617 |
|
- |
- | E+ | Box | Obsolete | NPT | Three Phase | 1200 V | 530 A | 2100 W | 2.4V @ 15V, 300A | 1 mA | 22 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E+ |
|
|
MWI300-17E9IGBT MODULE 1700V 500A 2200W E+ |
8,522 |
|
- |
- | E+ | Box | Active | NPT | Three Phase | 1700 V | 500 A | 2200 W | 2.7V @ 15V, 300A | 1 mA | 33 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E+ |
|
|
MWI450-12E9IGBT MODULE 1200V 640A 2200W E+ |
7,760 |
|
- |
- | E+ | Box | Obsolete | NPT | Three Phase | 1200 V | 640 A | 2200 W | 2.4V @ 15V, 450A | 1 mA | 33 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E+ |
|
|
MWI60-06G6KIGBT MODULE 600V 60A 180W E1 |
3,232 |
|
- |
- | E1 | Box | Active | - | Three Phase Inverter | 600 V | 60 A | 180 W | 2.8V @ 15V, 30A | 200 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
