IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXEN60N120IGBT MOD 1200V 100A 445W SOT227B |
5,727 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 1200 V | 100 A | 445 W | 2.7V @ 15V, 60A | 800 µA | 3.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

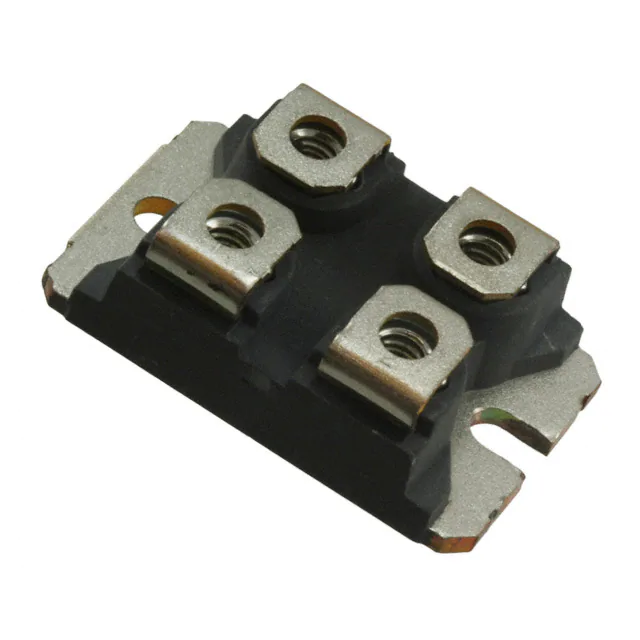

IXEN60N120D1IGBT MOD 1200V 100A 445W SOT227B |
2,539 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 1200 V | 100 A | 445 W | 2.7V @ 15V, 60A | 800 µA | 3.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXGN50N60BD2IGBT MOD 600V 75A 250W SOT227B |
9,515 |
|
- |
HiPerFAST™ | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 75 A | 250 W | 2.5V @ 15V, 50A | 200 µA | 4.1 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
IXGN60N60C2IGBT MOD 600V 75A 480W SOT227B |
5,960 |
|
- |
HiPerFAST™ | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 75 A | 480 W | 2.5V @ 15V, 50A | 650 µA | 4.75 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXGN60N60C2D1IGBT MOD 600V 75A 480W SOT227B |
7,254 |
|
- |
HiPerFAST™ | SOT-227-4, miniBLOC | Tube | Obsolete | PT | Single | 600 V | 75 A | 480 W | 2.5V @ 15V, 50A | 650 µA | 4.75 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
IXSN55N120AIGBT MOD 1200V 110A 500W SOT227B |
8,389 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 1200 V | 110 A | 500 W | 4V @ 15V, 55A | 1 mA | 8 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

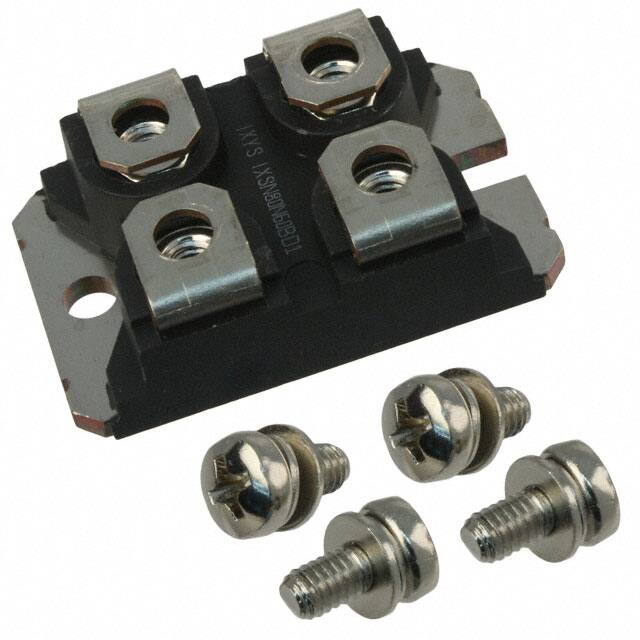

IXSN80N60BD1IGBT MOD 600V 160A 420W SOT227B |
2,187 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 160 A | 420 W | 2.5V @ 15V, 80A | 200 µA | 6.6 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
MDI150-12A4IGBT MOD 1200V 180A 760W Y3DCB |
7,765 |
|
- |
- | Y3-DCB | Box | Active | NPT | Single | 1200 V | 180 A | 760 W | 2.7V @ 15V, 100A | 7.5 mA | 6.6 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
|
MIO1200-33E10IGBT MODULE 3300V 1200A E10 |
6,267 |
|
- |
- | E10 | Box | Active | NPT | Single Switch | 3300 V | 1200 A | - | 3.1V @ 15V, 1200A | 120 mA | 187 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E10 |
|
|
MKI100-12E8IGBT MODULE 1200V 165A 640W E3 |
6,042 |
|
- |
- | E3 | Box | Obsolete | NPT | Full Bridge Inverter | 1200 V | 165 A | 640 W | 2.5V @ 15V, 100A | 1.4 mA | 7.4 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MKI50-12E7IGBT MODULE 1200V 90A 350W E2 |
9,407 |
|
- |
- | E2 | Box | Obsolete | NPT | Full Bridge Inverter | 1200 V | 90 A | 350 W | 2.4V @ 15V, 50A | 800 µA | 3.8 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
MUBW100-06A8IGBT MODULE 600V 125A 410W E3 |
2,910 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 125 A | 410 W | 2.5V @ 15V, 100A | 1.4 mA | 4.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MUBW50-12E8IGBT MODULE 1200V 90A 350W E3 |
8,330 |
|
- |
- | E3 | Box | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 90 A | 350 W | 2.4V @ 15V, 50A | 800 µA | 3.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MUBW6-06A6IGBT MODULE 600V 7A 38W E1 |
6,919 |
|
- |
- | E1 | Box | Active | NPT | Three Phase Inverter with Brake | 600 V | 7 A | 38 W | 2.5V @ 15V, 4A | 10 µA | 340 pF @ 25 V | Three Phase Bridge Rectifier | Yes | 150°C (TJ) | Chassis Mount | E1 |
|
|
MUBW75-06A8IGBT MODULE 600V 100A 320W E3 |
7,607 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter with Brake | 600 V | 100 A | 320 W | 2.5V @ 15V, 75A | 1.4 mA | 4.2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MWI100-06A8IGBT MODULE 600V 130A 410W E3 |
7,278 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter | 600 V | 130 A | 410 W | 2.5V @ 15V, 100A | 1.2 mA | 4.3 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MWI100-12E8IGBT MODULE 1200V 165A 640W E3 |
3,571 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 165 A | 640 W | 2.5V @ 15V, 100A | 1.4 mA | 7.4 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
MWI35-12A7TIGBT MODULE 1200V 62A 280W E2 |
2,020 |
|
- |
- | E2 | Box | Active | NPT | Three Phase Inverter | 1200 V | 62 A | 280 W | 2.8V @ 15V, 35A | 2 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | E2 |
|
|
MWI45-12T6KIGBT MODULE 1200V 43A 160W E1 |
5,389 |
|
- |
- | E1 | Box | Active | Trench | Three Phase Inverter | 1200 V | 43 A | 160 W | 2.3V @ 15V, 25A | 400 µA | 1.81 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E1 |
|
|
MWI50-12E7IGBT MODULE 1200V 90A 350W E2 |
2,886 |
|
- |
- | E2 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 90 A | 350 W | 2.4V @ 15V, 50A | 800 µA | 3.8 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
