Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0685H9250-01FUSE BRD MT 25A 125VAC 32VDC |
1,253 |
|
Datasheet |
C1H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | 125 V | 32 V | Fast Blow | 150A AC, 300A DC | 53.4 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm) | |
|
C2Q 500FUSE BRD MT 500MA 32VAC 63VDC |
480,330 |
|
Datasheet |
C2Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 1.5E-4 | CE, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm) | |
|

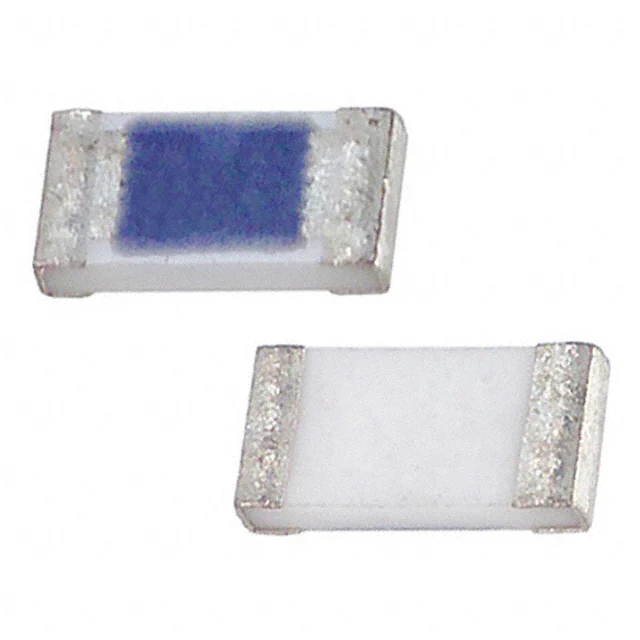

C1Q 5FUSE BOARD MOUNT 5A 125VAC 63VDC |
163,808 |
|
Datasheet |
C1Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 0.075 | CE, CSA, cULus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm) | |
|
|
C1Q 750FUSE BRD MT 750MA 125VAC 63VDC |
141,637 |
|
Datasheet |
C1Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 4.2E-4 | CE, CSA, cULus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm) | |
|
|
C2Q 4FUSE BRD MNT 4A 32VAC 63VDC 0603 |
140,967 |
|
Datasheet |
C2Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 0.63 | CE, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm) | |
|
|
C1Q 2.5FUSE BRD MT 2.5A 125VAC 63VDC |
136,076 |
|
Datasheet |
C1Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 0.008 | CE, CSA, cULus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm) | |
|
|
C1Q 3FUSE BOARD MOUNT 3A 125VAC 63VDC |
61,319 |
|
Datasheet |
C1Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 0.02 | CE, CSA, cULus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm) | |
|
|
C1Q 500FUSE BRD MT 500MA 125VAC 63VDC |
53,714 |
|
Datasheet |
C1Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 1.1E-4 | CE, CSA, cULus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm) | |
|
|
C1Q 4FUSE BOARD MOUNT 4A 125VAC 63VDC |
46,294 |
|
Datasheet |
C1Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 0.038 | CE, CSA, cULus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm) | |
|
|
C1Q 250FUSE BRD MT 250MA 125VAC 63VDC |
19,504 |
|
Datasheet |
C1Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 3.0E-5 | CE, CSA, cULus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm) | |
|
0034.1524FUSE GLASS 6.3A 250VAC 5X20MM |
143,765 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | 250 V | - | Fast Blow | 63A | 53.2 | CCC, cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
SF-1206S150-2FUSE BOARD MOUNT 1.5A 63VDC 1206 |
82,735 |
|
Datasheet |
SinglFuse™ SF-1206S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | - | 63 V | Slow Blow | 50A | 0.236 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | |
|
0679L0250-05FUSE BRD MT 250MA 125VAC/VDC SMD |
61,833 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.02 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679L1000-05FUSE BRD MNT 1A 125VAC/VDC 2SMD |
39,470 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.54 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679H2000-05FUSE BRD MNT 2A 350VAC 72VDC SMD |
76,161 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 350 V | 72 V | Fast Blow | 50A AC, 100A DC | 0.68 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679H1000-05FUSE BRD MNT 1A 350VAC 72VDC SMD |
67,728 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 350 V | 72 V | Fast Blow | 50A AC, 100A DC | 0.54 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679L9200-01FUSE BRD MNT 20A 125VAC/VDC 2SMD |
34,482 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 128.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
0287002.PXCNFUSE AUTO 2A 32VDC BLADE ATO/ATC |
27,998 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 1.4 | UL | -40°C ~ 105°C | Gray | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
|
0679L0750-05FUSE BRD MT 750MA 125VAC/VDC SMD |
20,195 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.26 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679L2000-05FUSE BRD MNT 2A 125VAC/VDC 2SMD |
8,997 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.68 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) |
