Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3412.0113.22FUSE BOARD MNT 500MA 32VAC 63VDC |
7,925 |
|
Datasheet |
USF 0603 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 32 V | 63 V | Fast Blow | 50A | 0.02 | cURus | -55°C ~ 90°C | - | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) | |
|
3405.0175.24FUSE BRD MT 8A 250VAC 125VDC SMD |
7,613 |
|
Datasheet |
UMF 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 8 A | 250 V | 125 V | Fast Blow | 100A | 52.58 | cURus, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
3405.0169.24FUSE BRD MT 2A 250VAC 125VDC SMD |
6,434 |
|
Datasheet |
UMF 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 125 V | Fast Blow | 100A | 3.26 | cURus, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
3412.0119.22FUSE BRD MNT 2A 32VAC 63VDC 0603 |
6,341 |
|
Datasheet |
USF 0603 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 32 V | 63 V | Fast Blow | 50A | 0.25 | cURus | -55°C ~ 90°C | - | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) | |
|
0001.2507FUSE CERM 2A 250VAC 300VDC 5X20 |
5,697 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 250 V | 300 V | Slow Blow | 1.5kA | 9.2 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
3405.0172.24FUSE BRD MT 4A 250VAC 125VDC SMD |
5,391 |
|
Datasheet |
UMF 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 250 V | 125 V | Fast Blow | 100A | 9.4 | cURus, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
37011600410FUSE BOARD MNT 1.6A 250VAC RAD |
4,425 |
|
Datasheet |
TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.6 A | 250 V | - | Fast Blow | 35A | 0.53 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0001.1014FUSE CERAMIC 10A 250VAC 5X20MM |
3,050 |
|
Datasheet |
SP 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Fast Blow | 1.5kA | 141.0 | cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

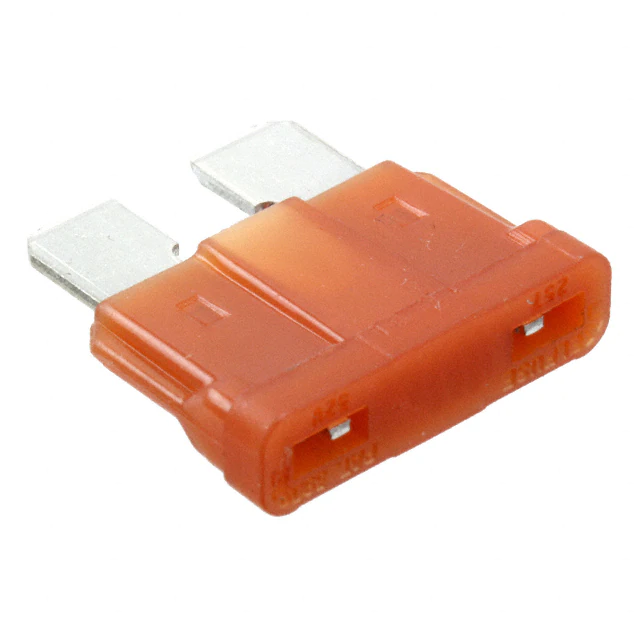

0257040.PXAPCFUSE AUTO 40A 32VDC BLADE ATO |
2,871 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 32 V | - | 1kA | 3310.0 | cULus | -40°C ~ 105°C | Orange | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
|
0001.1009FUSE CERAMIC 3.15A 250VAC 5X20MM |
2,821 |
|
Datasheet |
SP 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 250 V | - | Fast Blow | 1.5kA | 6.78 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
3405.0170.24FUSE BRD MT 2.5A 250VAC 125VDC |
2,803 |
|
Datasheet |
UMF 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | 125 V | Fast Blow | 100A | 4.8 | cURus, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
0001.1004FUSE CERAMIC 1A 250VAC 5X20MM |
1,925 |
|
Datasheet |
SP 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1 A | 250 V | - | Fast Blow | 1.5kA | 0.75 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.2516FUSE CERM 16A 250VAC 125VDC 5X20 |
1,756 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 16 A | 250 V | 125 V | Slow Blow | 500A AC, 1.5kA DC | 1500.0 | cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.1008FUSE CERAMIC 2.5A 250VAC 5X20MM |
1,292 |
|
Datasheet |
SP 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2.5 A | 250 V | - | Fast Blow | 1.5kA | 3.28 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.1010FUSE CERAMIC 4A 250VAC 5X20MM |
1,286 |
|
Datasheet |
SP 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 4 A | 250 V | - | Fast Blow | 1.5kA | 12.6 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.1007FUSE CERAMIC 2A 250VAC 5X20MM |
1,095 |
|
Datasheet |
SP 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 250 V | - | Fast Blow | 1.5kA | 2.0 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
SF-0603S040-2FUSE BRDMT 400MA 35VAC/50DC 0603 |
41,031 |
|
Datasheet |
SinglFuse™ SF-0603S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 400 mA | 35 V | 50 V | Slow Blow | 50A | 0.004 | UL | -20°C ~ 105°C | - | 0.063" L x 0.031" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | |
|
|
SF-0603F125-2FUSE BOARD MNT 1.25A 32VDC 0603 |
28,291 |
|
Datasheet |
SinglFuse™ SF-0603F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | - | 32 V | Fast Blow | 50A | 0.027 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | |
|
|
SF-0603S150-2FUSE BOARD MOUNT 1.5A 32VDC 0603 |
13,580 |
|
Datasheet |
SinglFuse™ SF-0603S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | - | 32 V | Slow Blow | 50A | 0.081 | UL | -20°C ~ 105°C | - | 0.063" L x 0.032" W x 0.018" H (1.60mm x 0.80mm x 0.45mm) | |
|
BK/AGC-15-RFUSE GLASS 15A 32VAC 3AB 3AG |
7,521 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 15 A | 32 V | - | Fast Blow | 1kA | 807.75 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
