Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0679H1250-05FUSE BRD MT 1.25A 350VAC 72VDC |
8,338 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | 350 V | 72 V | Fast Blow | 50A AC, 100A DC | 0.22 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|

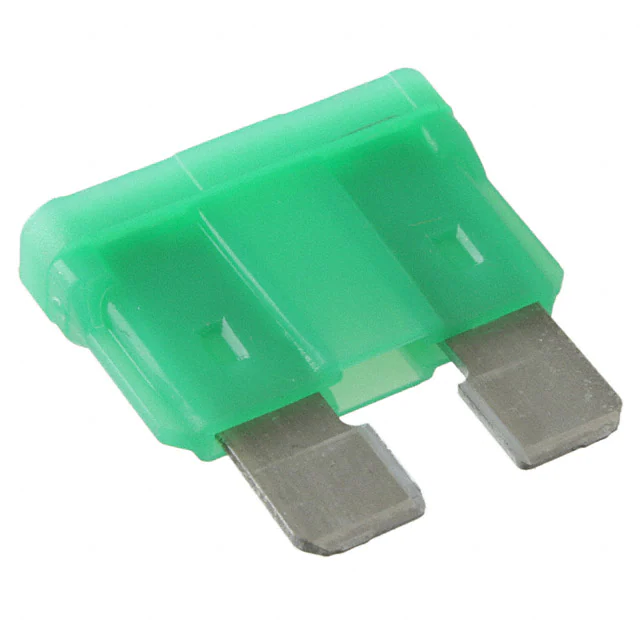

0287030.PXCNFUSE AUTO 30A 32VDC BLADE ATO |
7,720 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | - | 1510.0 | CSA, UL | -40°C ~ 105°C | Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

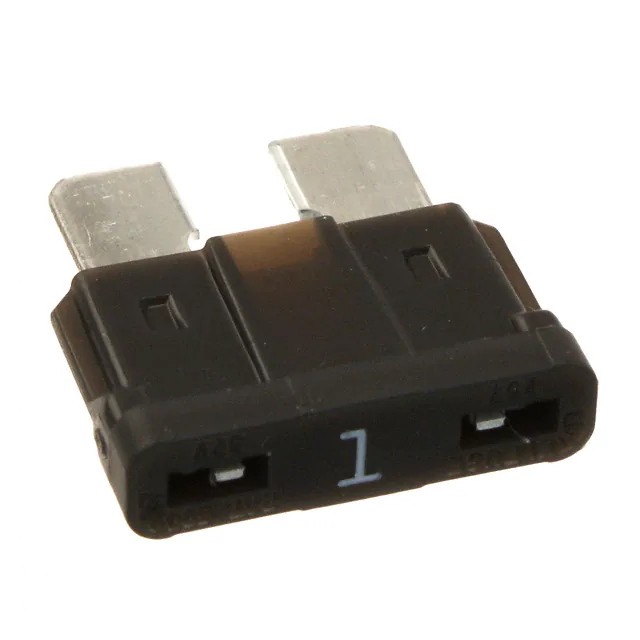

0287001.PXCNFUSE AUTO 1A 32VDC BLADE ATO/ATC |
7,353 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 1 A | - | 32 V | Fast Blow | 1kA | 0.4 | UL | -40°C ~ 105°C | Black | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0297002.UFUSE AUTOMOTIVE 2A 32VDC BLADE |
5,858 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 2.8 | UR | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297010.UFUSE AUTO 10A 32VDC BLADE MINI |
5,398 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | 93.0 | UR | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0679H7000-05FUSE BRD MNT 7A 350VAC 60VDC SMD |
4,945 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 7 A | 350 V | 60 V | Fast Blow | 50A AC, 100A DC | 10.8 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679H2500-05FUSE BRD MT 2.5A 350VAC 72VDC |
4,085 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | 350 V | 72 V | Fast Blow | 50A AC, 100A DC | 1.13 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679H0250-05FUSE BRD MT 250MA 350VAC 72VDC |
4,062 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 350 V | 72 V | Fast Blow | 50A AC, 100A DC | 0.02 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
0297015.LFUSE AUTO 15A 32VDC BLADE MINI |
3,753 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 270.0 | UR | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0679H4000-05FUSE BRD MNT 4A 350VAC 60VDC SMD |
2,422 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 350 V | 60 V | Fast Blow | 50A AC, 150A DC | 3.5 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
0297020.UFUSE AUTO 20A 32VDC BLADE MINI |
2,389 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 380.0 | UR | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297015.UFUSE AUTO 15A 32VDC BLADE MINI |
1,585 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 270.0 | UR | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0287004.PXCNFUSE AUTO 4A 32VDC BLADE ATO/ATC |
1,175 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 14.0 | UL | -40°C ~ 105°C | Pink | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
MRT 1.25-BULKFUSE BRD MNT 1.25A 250VAC RADIAL |
59,223 |
|
Datasheet |
MRT | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.25 A | 250 V | - | Slow Blow | 50A | 11.0 | AEC-Q200, CCC, CE, CSA, cURus, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|
|
0679H9100-05FUSE BRD MT 10A 350VAC 60VDC SMD |
38,081 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 350 V | 60 V | Fast Blow | 50A AC, 100A DC | 25.7 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679H9150-05FUSE BRD MT 15A 350VAC 60VDC SMD |
12,579 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 350 V | 60 V | Fast Blow | 50A AC, 100A DC | 103.5 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
0287020.HFUSE AUTO 20A 32VDC BLADE ATO |
7,131 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | - | - | 520.0 | CSA, UL | -40°C ~ 105°C | Yellow | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0217002.HXPFUSE GLASS 2A 250VAC 5X20MM |
2,188 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 35A | 5.73 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
.jpg)
|
0311025.MFUSE GLASS 25A 32VAC/VDC |
1,830 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 25 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0891030.NXWSFUSE AUTO 30A 58VDC BLADE MINI |
7,203 |
|
Datasheet |
LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 58 V | - | 1kA | 1110.0 | - | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm) |
