Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1110-470K-RCFIXED IND 47UH 2.8A 62 MOHM TH |
1 |
|
Datasheet |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.8 A | - | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
CTX10-10-52-RFIXED IND 10UH 16.9A 5.1 MOHM TH |
4 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 16.9 A | 20.9A | Unshielded | 5.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.339" Dia x 0.843" W (34.00mm x 21.40mm) | - |
|

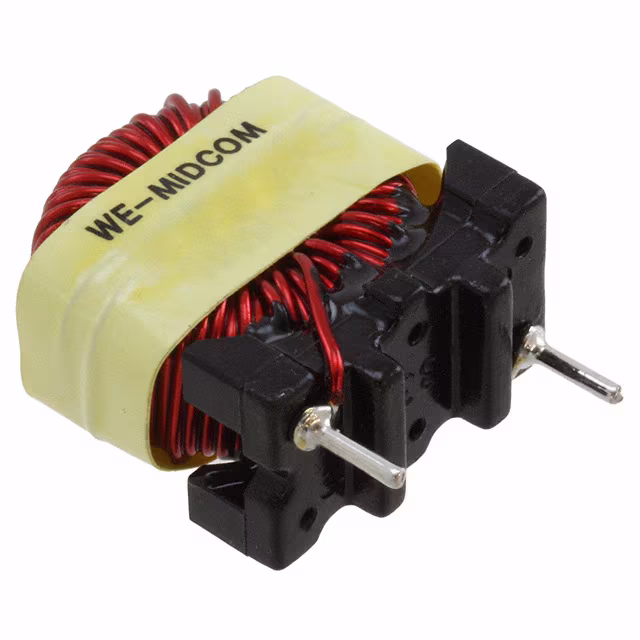

750312186FIXED IND 696UH 2A 128 MOHM TH |
0 |
|
Datasheet |
MID-LLIT | Radial, Vertical | Tray | Active | Toroidal | - | 696 µH | ±10% | 2 A | - | - | 128mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.820" L x 0.450" W (20.83mm x 11.43mm) | 0.970" (24.64mm) |
|
5718-RCFIXED IND 1.1MH 2.5A 330 MOHM TH |
0 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1.1 mH | ±15% | 2.5 A | - | Unshielded | 330mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | - |
|

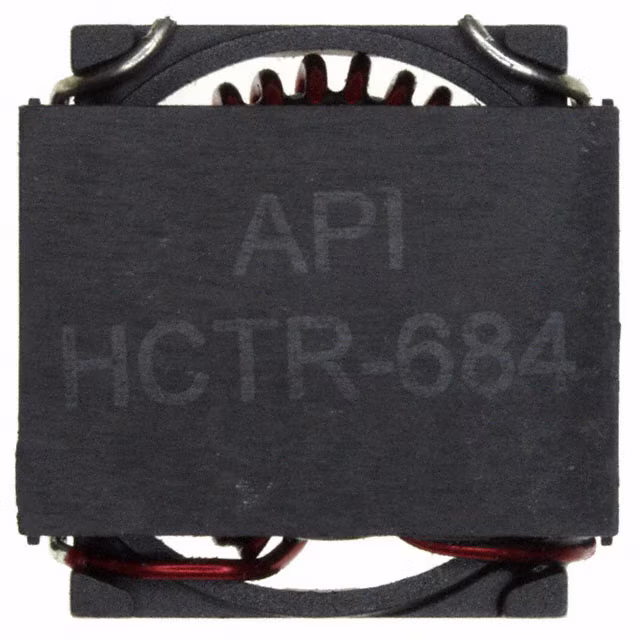

HCTR-684FIXED IND 29UH 6.57A 25 MOHM SMD |
0 |
|
Datasheet |
HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 29 µH | ±25% | 6.57 A | - | Shielded | 25mOhm Max | 30 @ 100kHz | 16MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|
IHTH1500MZEB4R7M5AIHTH-1500MZ-5A 4.7 20% EB E2 |
3 |
|
Datasheet |
IHTH-1500MZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 4.7 µH | ±20% | 60.6 A | 90.1A | Shielded | 1.19mOhm Max | - | 9.2MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.502" (12.76mm) |
|
PFC2723ER-421K03B-00CHOKE COMMON MODE |
0 |
|
Datasheet |
PFC | Radial, Horizontal, 5 Leads | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 420 µH | ±10% | 3.4 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.142" L x 0.984" W (29.00mm x 25.00mm) | 1.024" (26.00mm) |
|
PE-51513NLFIXED IND 144UH 10A 32 MOHM TH |
0 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 144 µH | - | 10 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 2.300" L x 1.110" W (58.42mm x 28.19mm) | 2.300" (58.42mm) |
|
1140-220K-RCFIXED IND 22UH 16.2A 9 MOHM TH |
4 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 16.2 A | 43.7A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
IHDM1008BCEV3R3M3AIHDM1008BC-3A 3.3 UH 20% EV |
0 |
|
Datasheet |
IHDM-1008BC-3A | Nonstandard | Tray | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 50 A | 90A | Unshielded | 0.7mOhm Max | - | 25MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
IHTH1500TZEB330M5AIHTH-1500TZ-5A 33 20% EB E2 |
4 |
|
Datasheet |
IHTH-1500TZ-5A | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Metal Composite | 33 µH | ±20% | 28.7 A | 56.6A | Shielded | 5.1mOhm Max | - | 2.6MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 0.780" (19.82mm) |
|
PFC3519QM-231K07B-00CHOKE COMMON MODE |
0 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 230 µH | ±10% | 7.4 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.827" (21.00mm) |
|
|
PFC3819QM-181K09B-00CHOKE COMMON MODE |
0 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 8.8 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.575" L x 1.319" W (40.00mm x 33.50mm) | 0.827" (21.00mm) |
|
IHV28BZ60FIXED IND 60UH 28A 8.5 MOHM TH |
0 |
|
Datasheet |
IHV | Radial, Horizontal Cylinder | - | Active | - | Iron | 60 µH | ±10% | 28 A | - | Unshielded | 8.5mOhm Max | - | 1.9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.020" Dia x 2.450" L (25.91mm x 62.23mm) | - |
|
157LFIXED IND 14H 75MA 429 OHM CHASS |
3 |
|
Datasheet |
157 | Nonstandard | Bulk | Active | - | - | 14 H | ±15% | 75 mA | - | Unshielded | 429Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
|
CH-8FIXED IND 30MH 8A 300 MOHM CHASS |
0 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 30 mH | - | 8 A | - | Unshielded | 300mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.126" L x 3.626" W (104.80mm x 92.10mm) | 3.500" (88.90mm) |
|
CH-25FIXED IND 5MH 25A 25 MOHM CHASS |
0 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 5 mH | - | 25 A | - | Unshielded | 25mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.752" W (133.40mm x 120.70mm) | 4.437" (112.70mm) |
|
|
193JPFIXED IND 10H 200MA 79 OHM CHASS |
1 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Box | Active | Wirewound | - | 10 H | ±15% | 200 mA | - | Unshielded | 79Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
|
193NPFIXED IND 3H 500MA 36 OHM CHASS |
0 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 3 H | ±15% | 500 mA | - | Unshielded | 36Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
|
|
193CPFIXED IND 20H 100MA 184 OHM CHAS |
1 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Box | Active | Wirewound | - | 20 H | ±15% | 100 mA | - | Unshielded | 184Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
