Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHSM5832ER4R7LFIXED IND 4.7UH 7.4A 23 MOHM SMD |
0 |
|
Datasheet |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±15% | 7.4 A | 2.8A | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
DLH-31-0007FIXED IND 130UH 4A 53 MOHM TH |
1 |
|
Datasheet |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | 130 µH | ±15% | 4 A | - | Shielded | 53mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.299" (33.00mm) |
|
HCM1A1305-1R0-RFIXED IND 1UH 22A 2.42 MOHM SMD |
0 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 22 A | 30A | Shielded | 2.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
DLH-31-0001FIXED IND 5.5MH 600MA 3.6 OHM TH |
0 |
|
Datasheet |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | 5.5 mH | ±15% | 600 mA | - | Shielded | 3.6Ohm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.299" (33.00mm) |
|
|
DLH-31-0005FIXED IND 300UH 2.5A 160 MOHM TH |
15 |
|
Datasheet |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | 300 µH | ±15% | 2.5 A | - | Shielded | 160mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.299" (33.00mm) |
|
|
HCM1A1305-R10-RFIXED IND 100NH 43A 0.59MOHM SMD |
0 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 nH | ±20% | 43 A | 80A | Shielded | 0.59mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-150-RFIXED IND 15UH 5.8A 33.4MOHM SMD |
0 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 5.8 A | 11A | Shielded | 33.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCM1A1307-6R8-RFIXED IND 6.8UH 9A 11.5MOHM SMD |
0 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 9 A | 20A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
SH50C-2.0-150FIXED IND 150UH 2A 100 MOHM TH |
11 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.059" (26.90mm) |
|
7443782012033FIXED IND 3.3UH 28.7A 2.4MOHM TH |
13 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 3.3 µH | ±20% | 28.7 A | 43A | Shielded | 2.4mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|

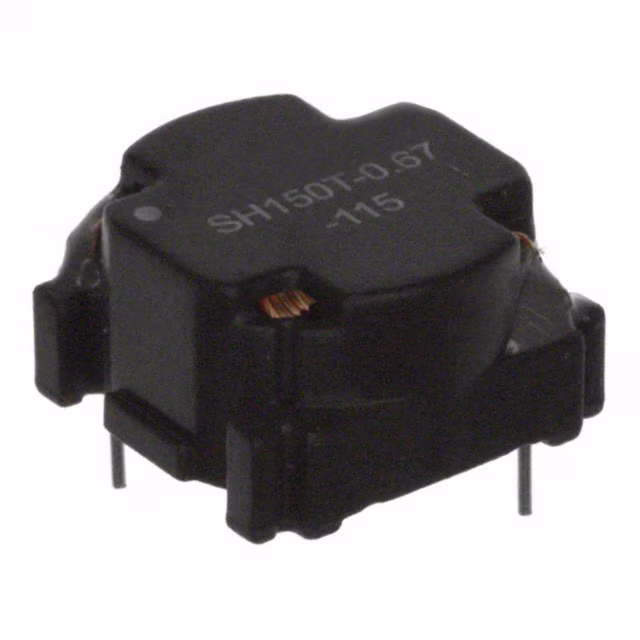

SH150T-0.67-115FIXED IND 115UH 670MA 400MOHM TH |
2 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 115 µH | ±20% | 670 mA | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|

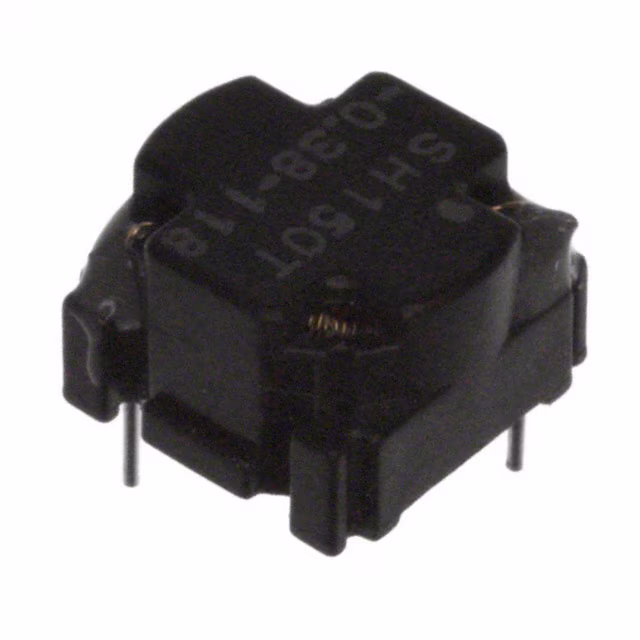

SH150T-0.38-118FIXED IND 118UH 380MA 1.2 OHM TH |
0 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 118 µH | ±20% | 380 mA | - | Unshielded | 1.2Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | 0.280" (7.10mm) |
|
SPD127R-103MFIXED IND 10UH 5.4A 40 MOHM SMD |
0 |
|
Datasheet |
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.4 A | 5.4A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
IHTH0750IZEB3R3M5AFIXED IND 3.3UH 40A 2.4 MOHM TH |
0 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 3.3 µH | ±20% | 40 A | 33A | Shielded | 2.4mOhm Max | - | 16.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|
ASPIAIG-Q1510-4R7M-TFIXED IND 4.7UH 30A 3.8MOHM SMD |
0 |
|
Datasheet |
ASPIAIG-Q1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 30 A | 39A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
MPX1D1740L3R3FIXED IND 3.3UH 16.5A 8.1MOHM SM |
2 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 16.5 A | 27.5A | Shielded | 8.1mOhm Max | - | 14MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
.jpg)
|
IHLP7575GZERR56M5AFIXED IND .56UH 61A 1.09 MOHM HI |
0 |
|
Datasheet |
IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 61 A | 101A | Shielded | 1.09mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
ASPIAIG-Q1513-100M-TFIXED IND 10UH 25A 7 MOHM SMD |
19 |
|
Datasheet |
ASPIAIG-Q1513 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 25 A | 27A | Shielded | 7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.512" (13.00mm) |
|
|
ASPIAIG-Q1513-4R7M-TFIXED IND 4.7UH 31A 3.3MOHM SMD |
0 |
|
Datasheet |
ASPIAIG-Q1513 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 31 A | 40A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.512" (13.00mm) |
|
B82559B5332A019FIXED IND 3.3UH 25.1A 2.25 MOHM |
0 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 25.1 A | 35.1A | Shielded | 2.25mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.417" (10.60mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
