Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

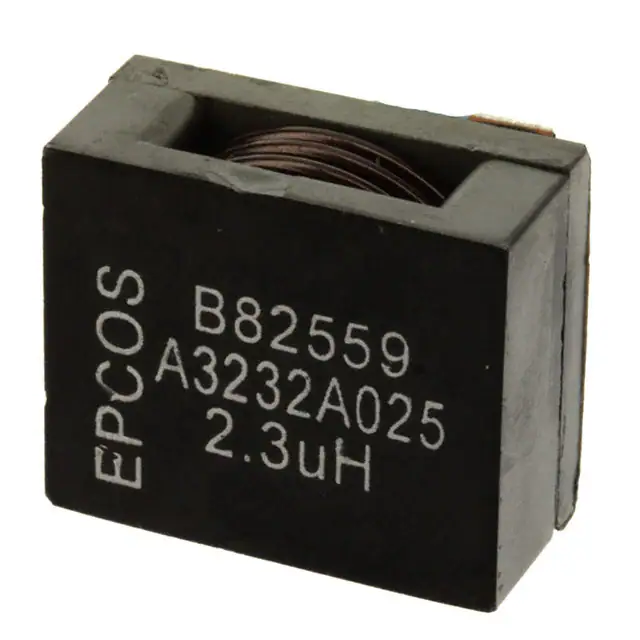

B82559A3232A025FIXED IND 2.3UH 0.6 MOHM SMD |
0 |
|
Datasheet |
ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.3 µH | ±7% | - | 41A | Shielded | 0.6mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.520" (13.20mm) |
|
SNG-25A-600FIXED INDUCTOR 600UH 20 MOHM |
21 |
|
Datasheet |
SNG | Vertical, 2 Wire Leads | Bulk | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 600 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.535" Dia (39.00mm) | 0.945" (24.00mm) |
|
DSH-22-0005FIXED IND 1.8A 90 MOHM TH |
3 |
|
Datasheet |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 1.8 A | - | - | 90mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - |
|
|
DSH-22-0006FIXED IND 3.15A 33 MOHM TH |
3 |
|
Datasheet |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 3.15 A | - | - | 33mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - |
|
|
DSH-22-0001FIXED IND 450MA 1.25 OHM TH |
0 |
|
Datasheet |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 450 mA | - | - | 1.25Ohm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - |
|
|
DSH-22-0003FIXED IND 1A 300 MOHM TH |
0 |
|
Datasheet |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 1 A | - | - | 300mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - |
|
|
DSH-22-0004FIXED IND 1.4A 160 MOHM TH |
0 |
|
Datasheet |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | - | 1.4 A | - | - | 160mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - |
|
B82559A4472A 20FIXED IND 4.7UH 2.4 MOHM SMD |
23 |
|
Datasheet |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | - | 22A | Shielded | 2.4mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.386" (9.80mm) |
|
7444013119100FIXED IND 10UH 11A 4.8 MOHM TH |
9 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 10 µH | ±20% | 11 A | 58A | Unshielded | 4.8mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
|

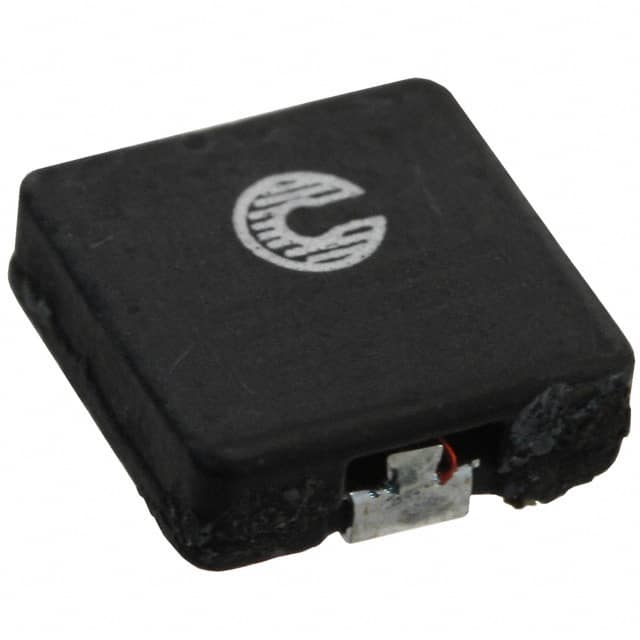

HC8LP-330-RFIXED IND 33UH 2.3A 224 MOHM SMD |
0 |
|
Datasheet |
HC8LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 2.3 A | 3.8A | Unshielded | 224mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.138" (3.50mm) |
|
744138FIXED IND 727UH 3.5A 240 MOHM TH |
0 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 727 µH | ±20% | 3.5 A | 1.4A | Unshielded | 240mOhm Max | - | 1.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.654" Dia x 0.591" W (42.00mm x 15.00mm) | - |
|
HCM1A1707-4R7-RFIXED IND 4.7UH 18A 4.72MOHM SMD |
0 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 18 A | 20A | Shielded | 4.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
B82559A6792A025FIXED IND 7.9UH 2 MOHM SMD |
0 |
|
Datasheet |
ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 7.9 µH | ±7% | - | 26A | Shielded | 2mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.506" (12.85mm) |
|
SH150C-3.00-17FIXED IND 17UH 3A 50 MOHM TH |
3 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.690" (17.53mm) |
|
1540M07FIXED IND 75UH 5A 40 MOHM TH |
3 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 75 µH | ±15% | 5 A | - | Unshielded | 40mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | - |
|
74436410680FIXED IND 6.8UH 36A 1.441MOHM SM |
20 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±15% | 36 A | 30A | Shielded | 1.441mOhm Max | - | 17.03MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
CTX100-2-52M-RFIXED IND 100UH 4.4A 53.4MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 4.4 A | 4.3A | Unshielded | 53.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.024" (26.00mm) |
|

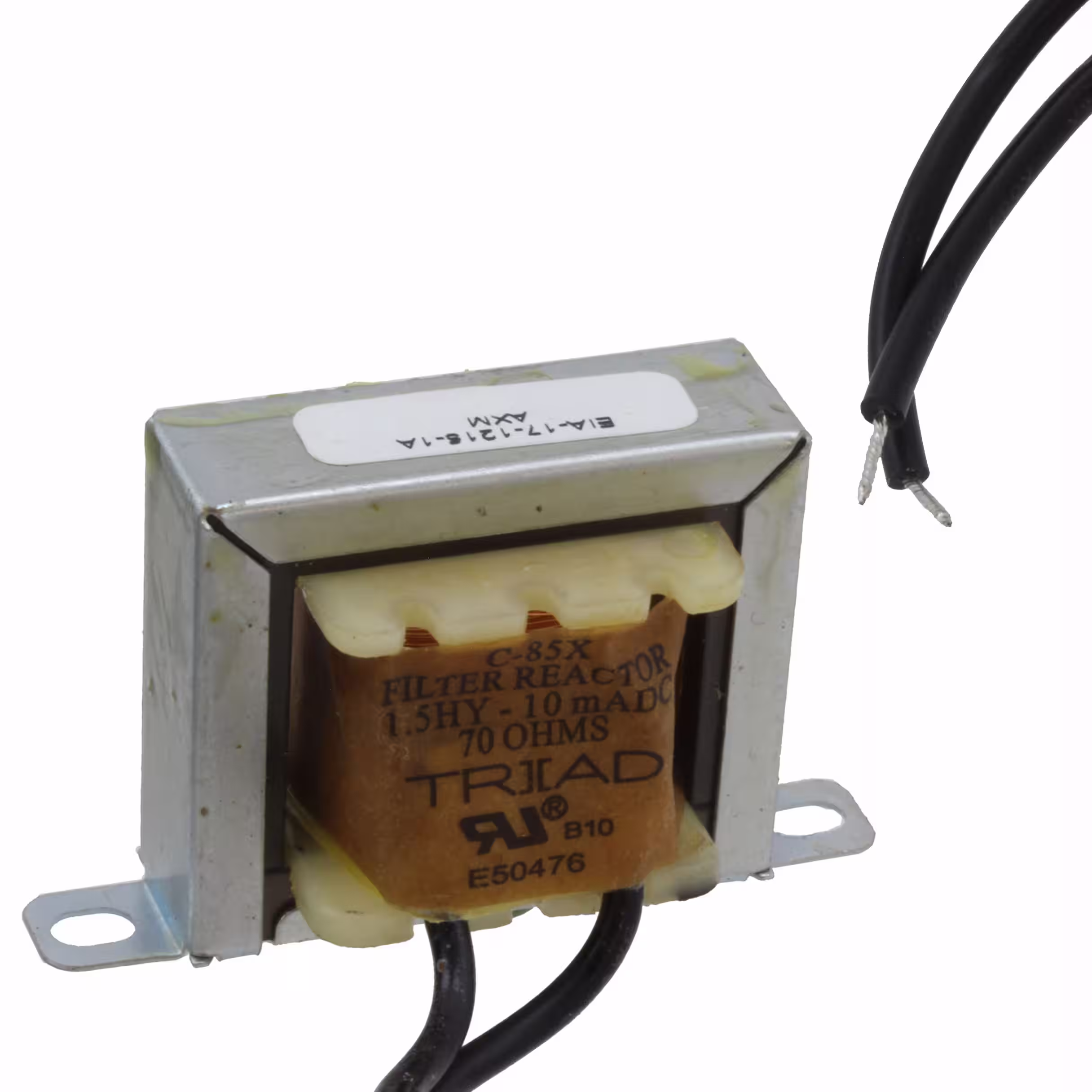

C-85XFIXED IND 1.5H 10MA 70 OHM CHASS |
0 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 1.5 H | -20%, +50% | 10 mA | - | Unshielded | 70Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 2.125" L x 1.125" W (53.97mm x 28.58mm) | 1.250" (31.75mm) |
|
1120-151K-RCFIXED IND 150UH 4A 98 MOHM TH |
0 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 4 A | - | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-470K-RCFIXED IND 47UH 5.5A 35 MOHM TH |
0 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 5.5 A | - | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
