Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2200HT-680-H-RCFIXED IND 68UH 5.8A 50 MOHM TH |
0 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 68 µH | ±15% | 5.8 A | - | Shielded | 50mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
2204-V-RCFIXED IND 18UH 10.8A 9 MOHM TH |
1 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 18 µH | ±15% | 10.8 A | - | Shielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
PE-54038SNLFIXED IND 77UH 2.7A 90 MOHM SMD |
13 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
2100HT-121-V-RCFIXED IND 120UH 3.5A 94 MOHM TH |
0 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 120 µH | ±15% | 3.5 A | - | Shielded | 94mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100HT-390-V-RCFIXED IND 39UH 5.9A 33 MOHM TH |
0 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 39 µH | ±15% | 5.9 A | - | Shielded | 33mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100HT-471-V-RCFIXED IND 470UH 2A 290 MOHM TH |
0 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 470 µH | ±15% | 2 A | - | Shielded | 290mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100HT-681-V-RCFIXED IND 680UH 1.8A 350 MOHM TH |
0 |
|
Datasheet |
2100HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 680 µH | ±15% | 1.8 A | - | Shielded | 350mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
UP4B-2R2-RFIXED IND 2.2UH 12A 4.8 MOHM SMD |
0 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 12 A | 23.7A | Unshielded | 4.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
|
2303-V-RCFIXED IND 15UH 18A 6 MOHM TH |
1 |
|
Datasheet |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 15 µH | ±15% | 18 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
PG1083.102NLFIXED IND 1UH 40A 1.4 MOHM SMD |
0 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 40 A | 70A | Unshielded | 1.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
MPX1D1770L3R3FIXED IND 3.3UH 28A 3.4 MOHM SMD |
0 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 28 A | 30.5A | Shielded | 3.4mOhm Max | - | 13MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
2221-V-RCFIXED IND 560UH 2.2A 210 MOHM TH |
0 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 560 µH | ±15% | 2.2 A | - | Shielded | 210mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
PE-51514NLFIXED IND 32UH 6.6A 25 MOHM TH |
0 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 32 µH | - | 6.6 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|
S1812R-684KFIXED IND 680UH 79MA 32 OHM SMD |
22 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±10% | 79 mA | - | Shielded | 32Ohm Max | 40 @ 790kHz | 2.6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

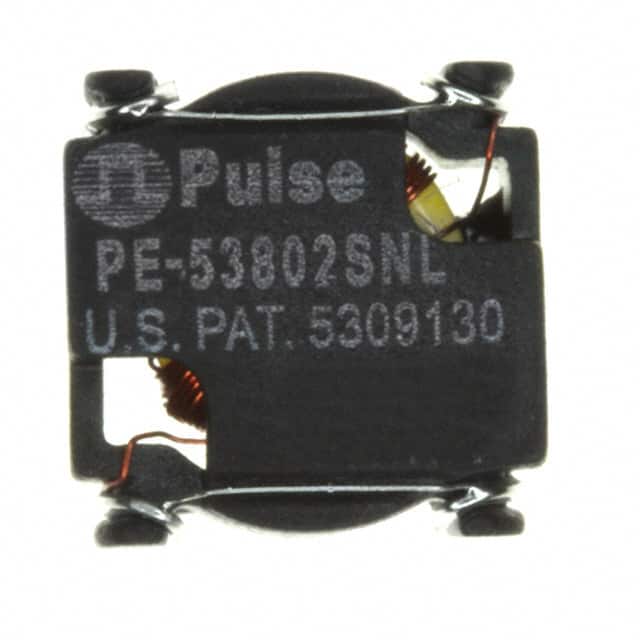

PE-53802SNLFIXED IND 178UH 160MA 2.8OHM SMD |
0 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 178 µH | ±20% | 160 mA | - | Shielded | 2.8Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
IHD1EB100LFIXED IND 10UH 2.8A 33 MOHM TH |
0 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 2.8 A | 2.3A | Unshielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | - |
|
CTX10-5-52-RFIXED IND 10UH 8.7A 10.4 MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 8.7 A | 11.1A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.874" Dia x 0.547" W (22.20mm x 13.90mm) | - |
|
MPXV1D1770L3R3FIXED IND 3.3UH 28A 3.4 MOHM SMD |
0 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 28 A | 30.5A | Shielded | 3.4mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPXV1D1770L1R0FIXED IND 1UH 38A 1.8 MOHM SMD |
0 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 38 A | 62A | Shielded | 1.8mOhm Max | - | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPXV1D1770L6R8FIXED IND 6.8UH 19.5A 6.8MOHM SM |
0 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 19.5 A | 26A | Shielded | 6.8mOhm Max | - | 8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
