Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM4020T-1R5M-LRFIXED IND 1.5UH 4.7A 39.9MOHM SM |
52 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 4.7 A | 6.3A | Shielded | 39.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
|
SPM5015T-4R7M-LRFIXED IND 4.7UH 3.2A 103.5 MOHM |
1,000 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 3.2 A | 3.6A | Shielded | 103.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
EXLA1V0606-100-RIND MOLDED SHLD 10.0UH 7.0A |
756 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 7 A | 6.8A | Shielded | 29.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
SPM10040T-220MFIXED IND 22UH 3.6A 79 MOHM SMD |
521 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 3.6 A | 4.6A | Shielded | 79mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
EXLA1V0606-150-RIND MOLDED SHLD 15.0UH 6.0A |
63 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 6 A | 5.2A | Shielded | 43mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
SLF12555T-220M2R3-PFFIXED IND 22UH 3.4A 33.8MOHM SMD |
36 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.4 A | 2.3A | Shielded | 33.8mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
SRR6603-4R7MLFIXED IND 4.7UH 1.4A 60 MOHM SMD |
615 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.4 A | 580mA | Shielded | 60mOhm Max | 40 @ 200kHz | 105MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
B82477G4474M000FIXED IND 470UH 800MA 790MOHM SM |
401 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 800 mA | 950mA | Shielded | 790mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
PM105-100M-RCFIXED IND 10UH 2.6A 60 MOHM SMD |
1,059 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 5.1A | Unshielded | 60mOhm | 30 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
ETQ-P4M2R2YFNFIXED IND 2.2UH 10.2A 11.44 MOHM |
513 |
|
Datasheet |
PCC-M0645M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 10.2 A | 14.4A | Shielded | 11.44mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.177" (4.50mm) |
|

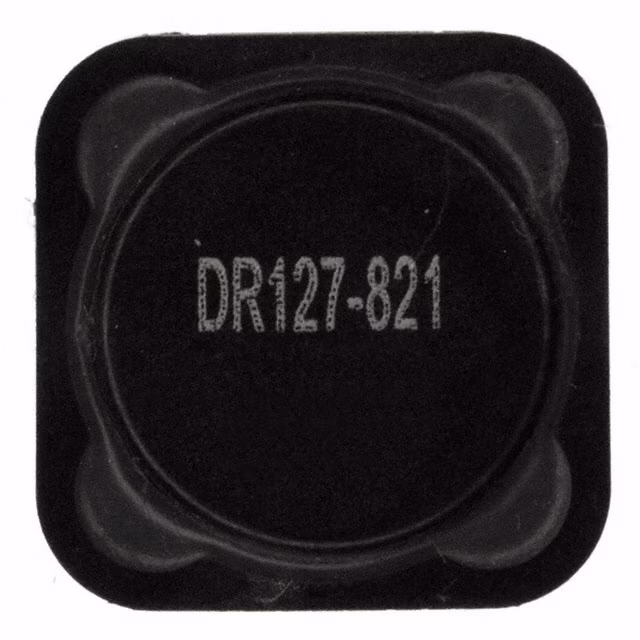

DR127-821-RFIXED IND 820UH 650MA 1.47OHM SM |
95 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 650 mA | 1.27A | Shielded | 1.47Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRA125-102-RFIXED IND 1MH 552MA 1.78 OHM SMD |
59 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 552 mA | 695mA | Shielded | 1.78Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRR1280A-150MFIXED IND 15UH 5.2A 28.5MOHM SMD |
470 |
|
Datasheet |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 5.2 A | 5A | Shielded | 28.5mOhm Max | 26 @ 2.52MHz | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
768772222FIXED IND 2.2MH 320MA 4.73OHM TH |
95 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 320 mA | 320mA | Unshielded | 4.73Ohm Max | - | 1.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

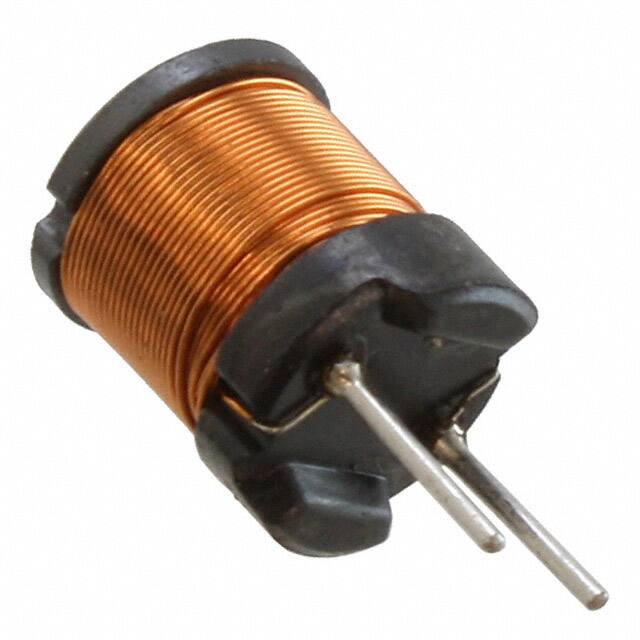

768772182FIXED IND 1.8MH 350MA 3.3 OHM TH |
91 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 350 mA | 380mA | Unshielded | 3.3Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
7447480822FIXED IND 8.2MH 300MA 9 OHM TH |
68 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±5% | 300 mA | 300mA | Unshielded | 9Ohm Max | - | 440kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
7447480222FIXED IND 2.2MH 480MA 2.5 OHM TH |
58 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 480 mA | 560mA | Unshielded | 2.5Ohm Max | - | 830kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
7447480332FIXED IND 3.3MH 360MA 4 OHM TH |
50 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 360 mA | 400mA | Unshielded | 4Ohm Max | - | 650kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
768772821FIXED IND 820UH 500MA 1.92OHM TH |
41 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 500 mA | 720mA | Unshielded | 1.92Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
IHLP4040DZERR36M11FIXED IND 360NH 32A 1.15MOHM SMD |
37 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 32 A | 30A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
