Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R413F147050T1KCAP FILM 4700PF 10% 1.5KVDC RAD |
7,229 |
|
Datasheet |
Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R463I310040M1MCAP FILM 0.1UF 20% 630VDC RAD |
6,349 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32922X2474M000FILM CAP MKP X2 - COMPACT, 0.47U |
6,293 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
FKP2C006801D00HSSDCAP FILM 680PF 2.5% 63VDC RAD |
5,632 |
|
Datasheet |
Radial | 680 pF | ±2.5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R413I147050T0KCAP FILM 4700PF 10% 1.5KVDC RAD |
4,468 |
|
Datasheet |
Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
B32652A1682J000CAP FILM 6800PF 5% 1.6KVDC RAD |
3,678 |
|
Datasheet |
Radial | 6800 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|

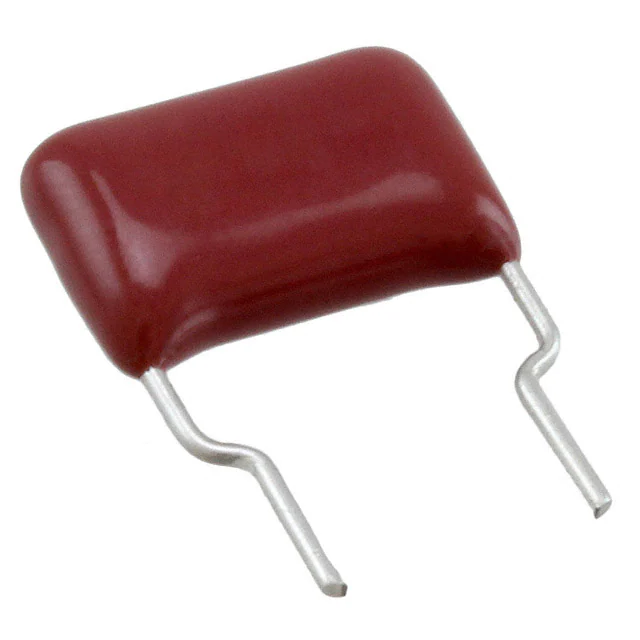

ECW-FD2W104J4CAP FILM 0.1UF 5% 450VDC RADIAL |
2,774 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.177" W (12.60mm x 4.50mm) | 0.547" (13.90mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Style Straight.jpg)
|
ECW-FA2J104JCAP FILM 0.1UF 5% 630VDC RADIAL |
2,756 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.205" W (18.20mm x 5.20mm) | 0.409" (10.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R413I2220CKM1KCAP FILM 0.022UF 10% 1KVDC RAD |
2,188 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECQ-UAAF103KCAP FILM 0.01UF 10% 275VAC RADIA |
1,987 |
|
Datasheet |
Radial | 10000 pF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X2 | - |
|

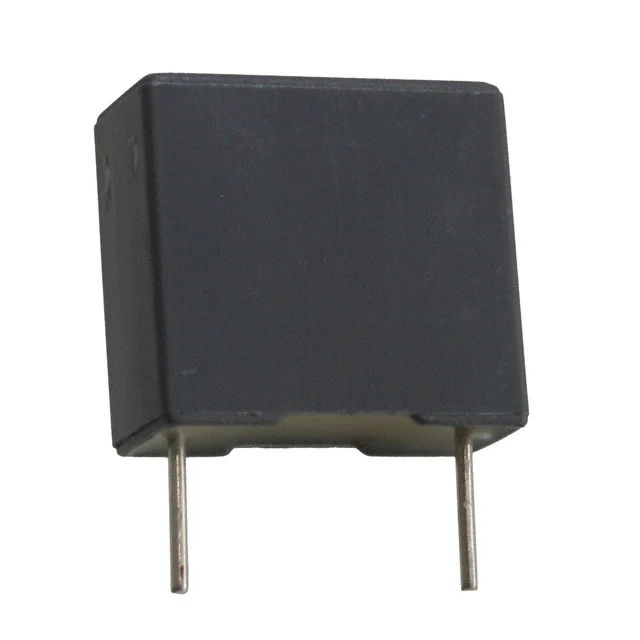

R463F310050M1MCAP FILM 0.1UF 20% 630VDC RADIAL |
1,593 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2684KFCAP FILM 0.68UF 10% 250VDC RAD |
1,401 |
|
Datasheet |
Radial | 0.68 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

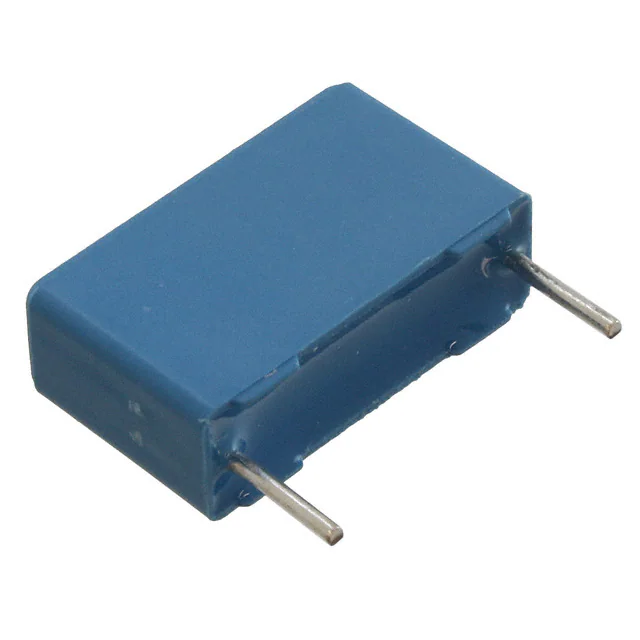

B32522N6224J000CAP FILM 0.22UF 5% 450VDC RADIAL |
36,287 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 200V | 450V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32922C3473K000CAP FILM 0.047UF 10% 630VDC RAD |
19,488 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
104MKP275KDCAP FILM 0.1UF 10% 310VAC RADIAL |
10,526 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.445" (11.30mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32672L8472J000CAP FILM 4700PF 5% 2KVDC RADIAL |
7,900 |
|
Datasheet |
Radial | 4700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UAAF224KCAP FILM 0.22UF 10% 275VAC RAD |
6,279 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.295" W (17.50mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32620A6152J000CAP FILM 1500PF 5% 630VDC RADIAL |
6,149 |
|
Datasheet |
Radial | 1500 pF | ±5% | 400V | 630V | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
MKP1837322161GCAP FILM 0.022UF 1% 160VDC RAD |
5,992 |
|
Datasheet |
Radial | 0.022 µF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" L x 0.217" W (7.50mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
R474I2470CKA2MCAP FILM 0.047UF 20% 1KVDC RAD |
5,749 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
