Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AKOBW5200A3LJFILM, RADIAL, METALLIZED POLYPRO |
101 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 135°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
EZP-V60506MTSCAP FILM 50UF 10% 600V RADIAL |
138 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 2.244" L x 0.984" W (57.00mm x 25.00mm) | 1.614" (41.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C276CC35600AA1JCAP FILM 60UF 5% 470VAC RADIAL |
375 |
|
Datasheet |
Radial, Can | 60 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.843" (123.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
B32778G8556K000CAP FILM 55UF 800VDC RAD 4 LEAD |
108 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
C4AEQBW5270A3NJCAP FILM 27UF 5% 1.1KVDC RADIAL |
116 |
|
Datasheet |
Radial | 27 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 1.969" (50.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
EZP-V80356MTSCAP FILM 35UF 10% 800V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 35 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 10.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.047" (52.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
B32776G8306J000CAP FILM 30UF 800VDC RAD 4 LEAD |
300 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
PMB2104200KVPCAP FILM 2UF 10% 1KVDC SCREW |
181 |
|
Datasheet |
Rectangular Box | 2 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
EZP-V60556MTTCAP FILM 55UF 10% 600V RADIAL |
174 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
MKP385E4392BJPM2T0CAP FILM 0.39UF 5% 2.5KVDC RAD |
157 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
MHBS405550KRSDCAP FILM 55UF 10% 700VDC RADIAL |
145 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
Z26S6028M50NCAP FILM 28UF 3% 600VAC RADIAL |
179 |
|
Datasheet |
Radial, Can | 28 µF | ±3% | 600V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount | 2.500" Dia (63.50mm) | 3.750" (95.25mm) | Quick Connect, Disconnect | - | General Purpose | - | Long Life |
|

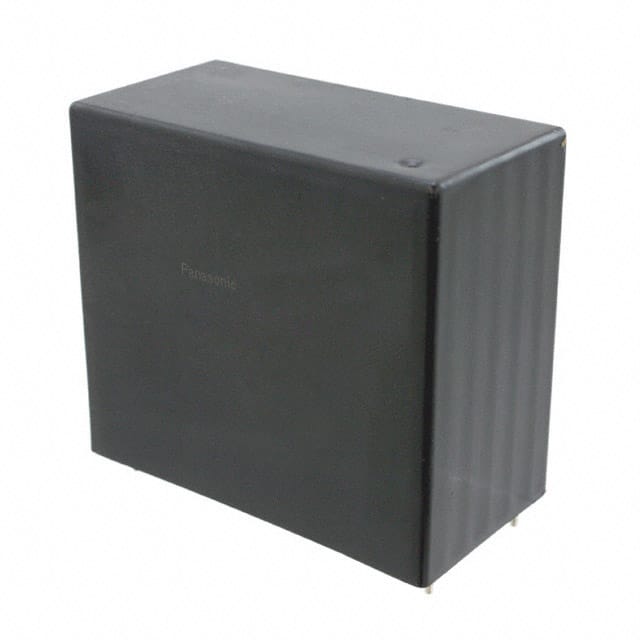

EZP-E50806MTACAP FILM 80UF 10% 500VDC RADIAL |
132 |
|
Datasheet |
Radial - 4 Leads | 80 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5.7 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|
MKP1847C630255Y5MKP 30F 10% 250VAC PITCH 52,5 |
299 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
EZP-Q38246MTCCAP FILM 24UF 5% 380VAC RADIAL |
238 |
|
Datasheet |
Radial - 4 Leads | 24 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
PMB1704350KVPCAP FILM 3.5UF 10% 700VDC SCREW |
174 |
|
Datasheet |
Rectangular Box | 3.5 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C4AEQBW5250A3NJCAP FILM 25UF 5% 1.1KVDC RADIAL |
207 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4AKOBW5300A3MJFILM, RADIAL, METALLIZED POLYPRO |
102 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 5.7 mOhms | -55°C ~ 135°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.819" (46.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
935C1W20K-FCAP FILM 20UF 10% 100VDC AXIAL |
127 |
|
Datasheet |
Axial | 20 µF | ±10% | 70V | 100V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 0.874" Dia x 2.248" L (22.20mm x 57.10mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
C274AC35400SA0JCAP FILM 40UF 5% 470VAC RADIAL |
312 |
|
Datasheet |
Radial, Can | 40 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.843" (123.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
